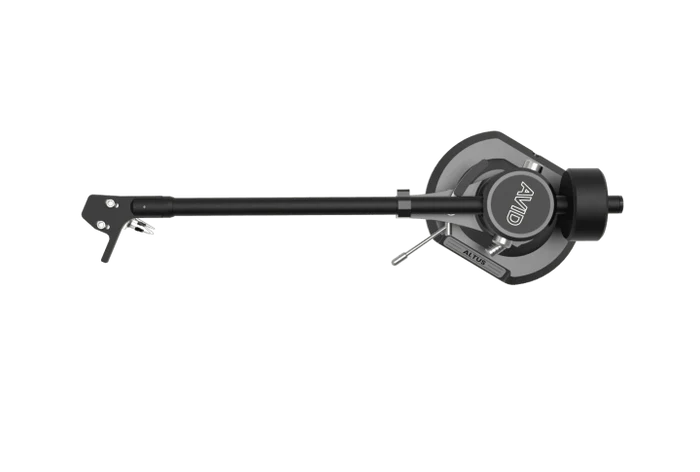

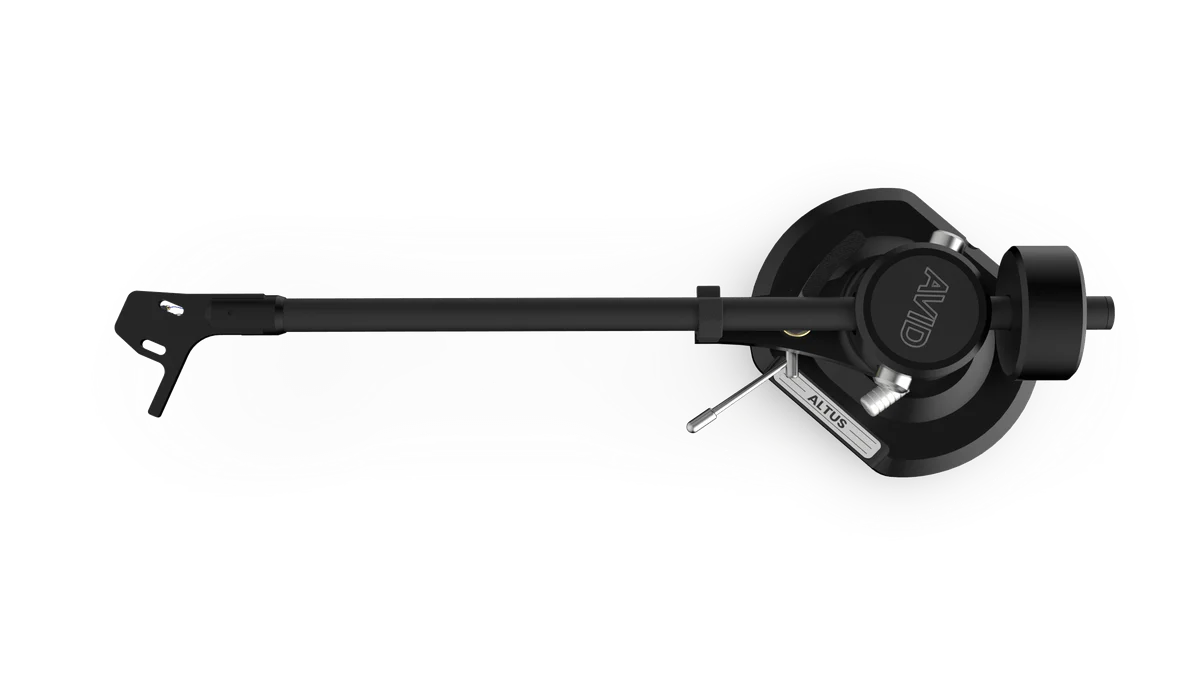

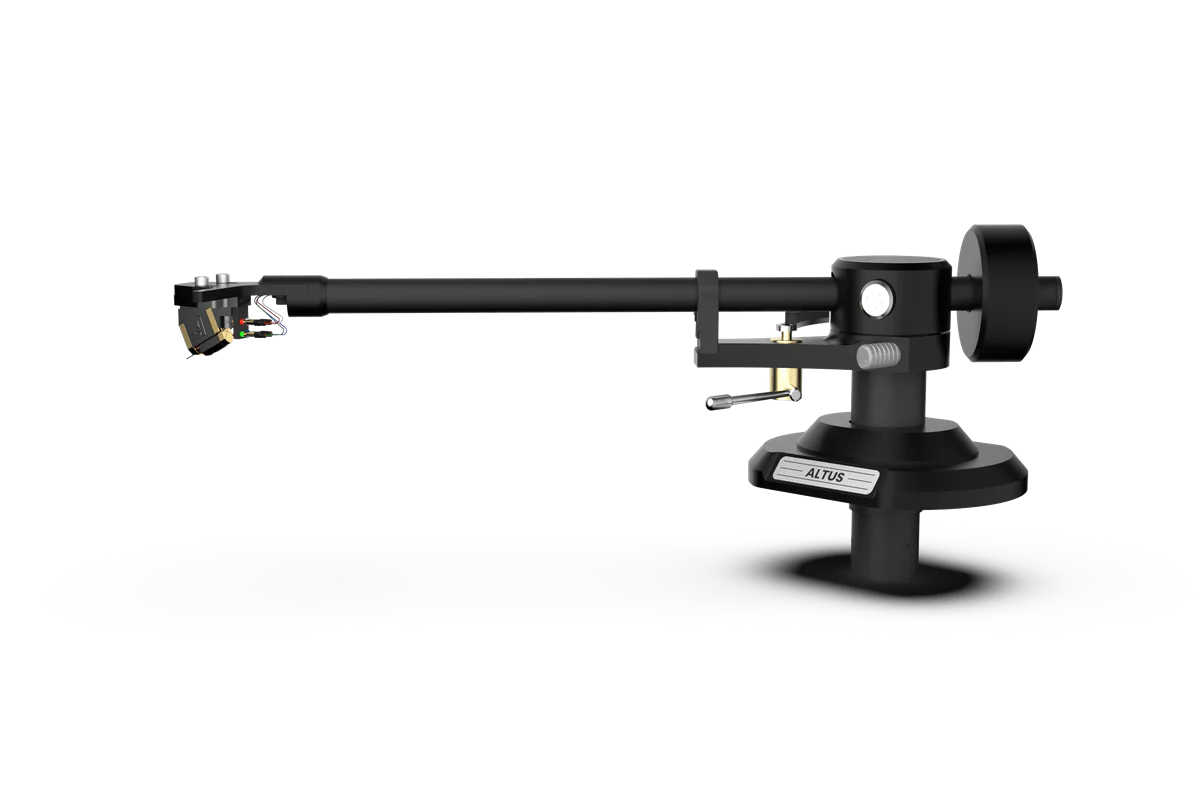

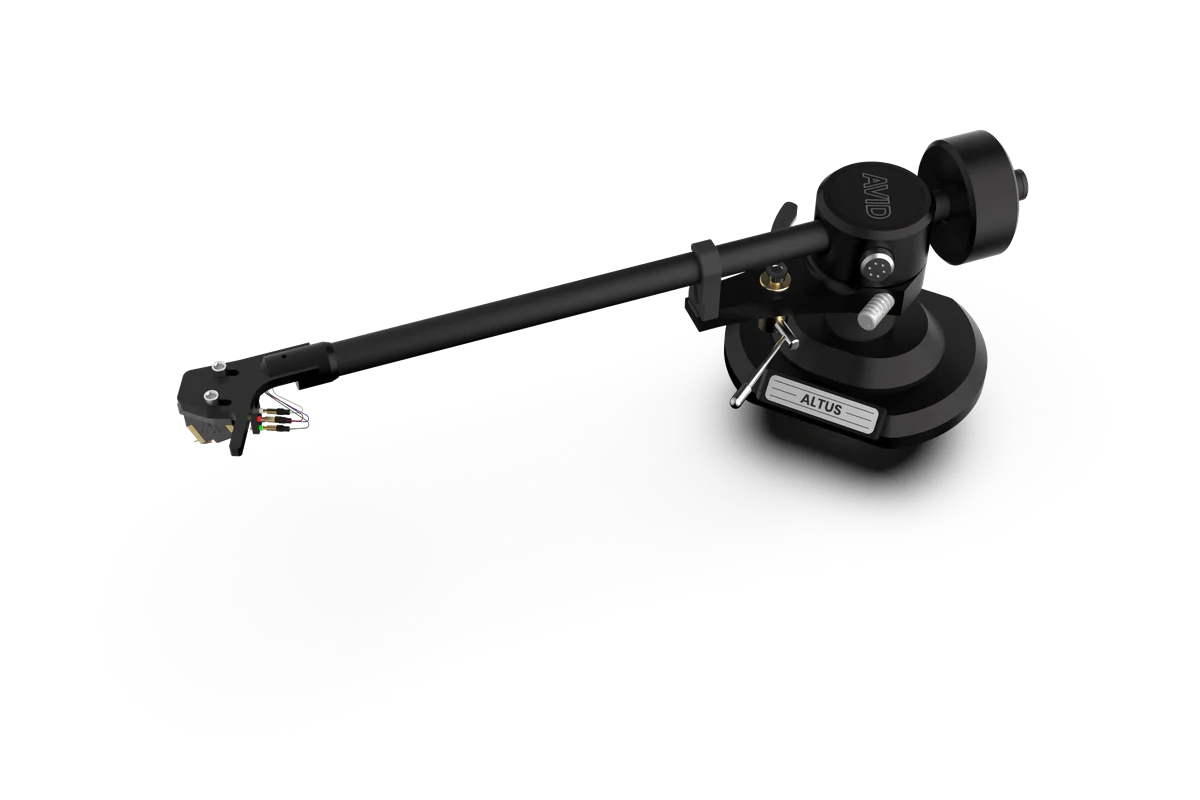

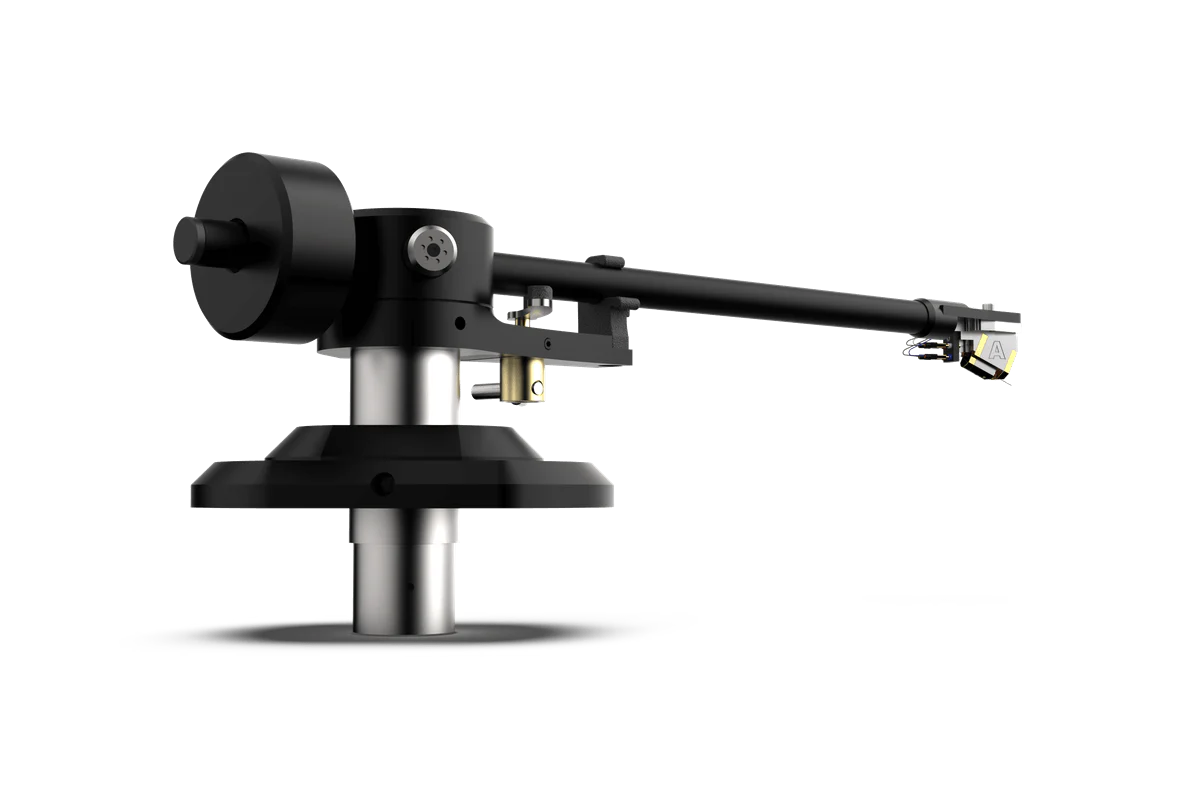

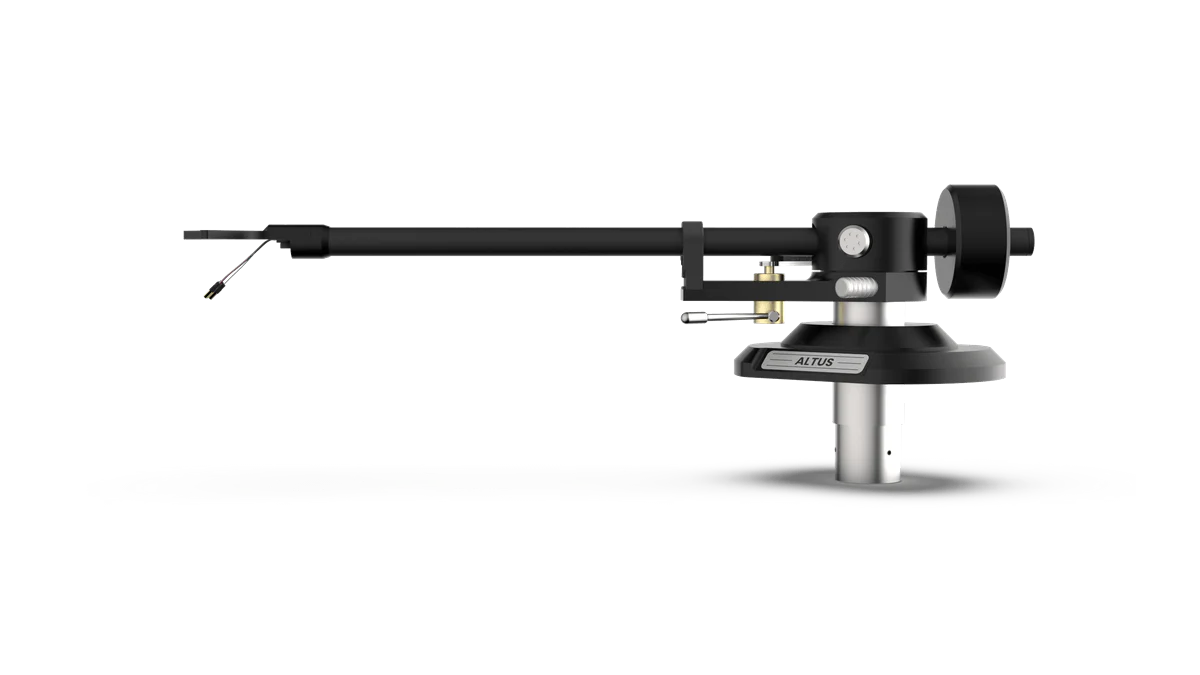

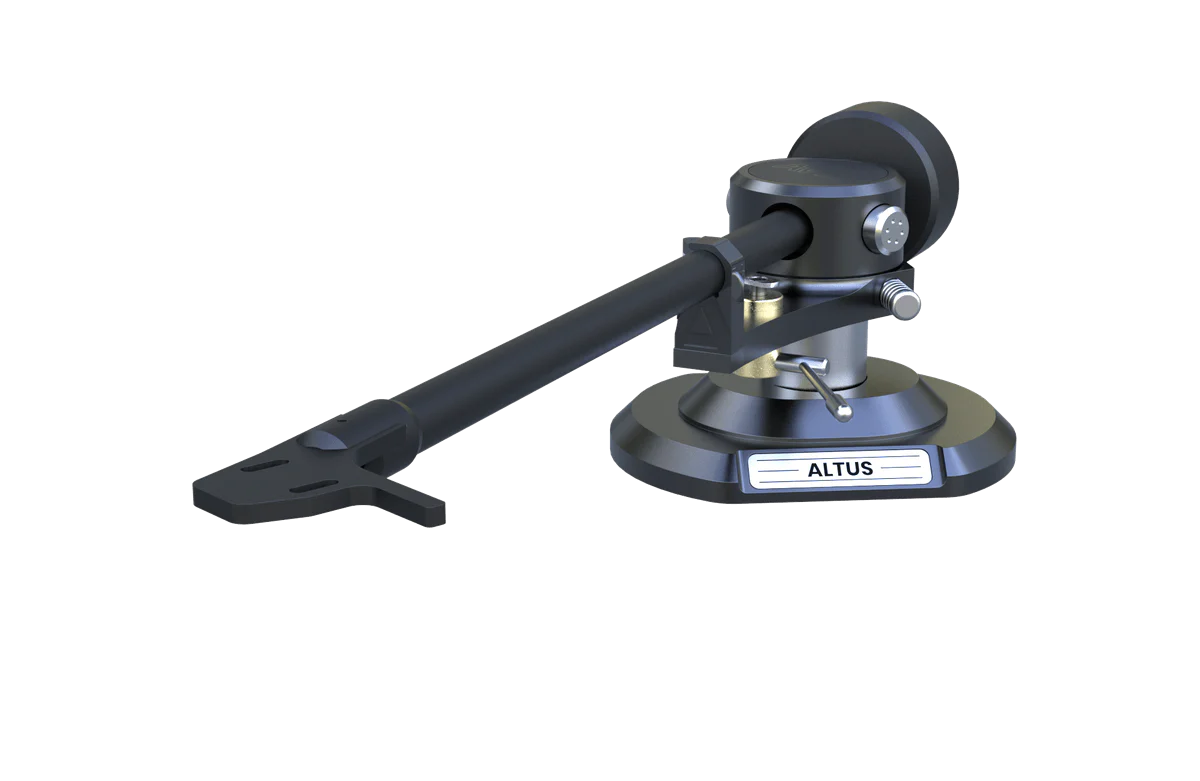

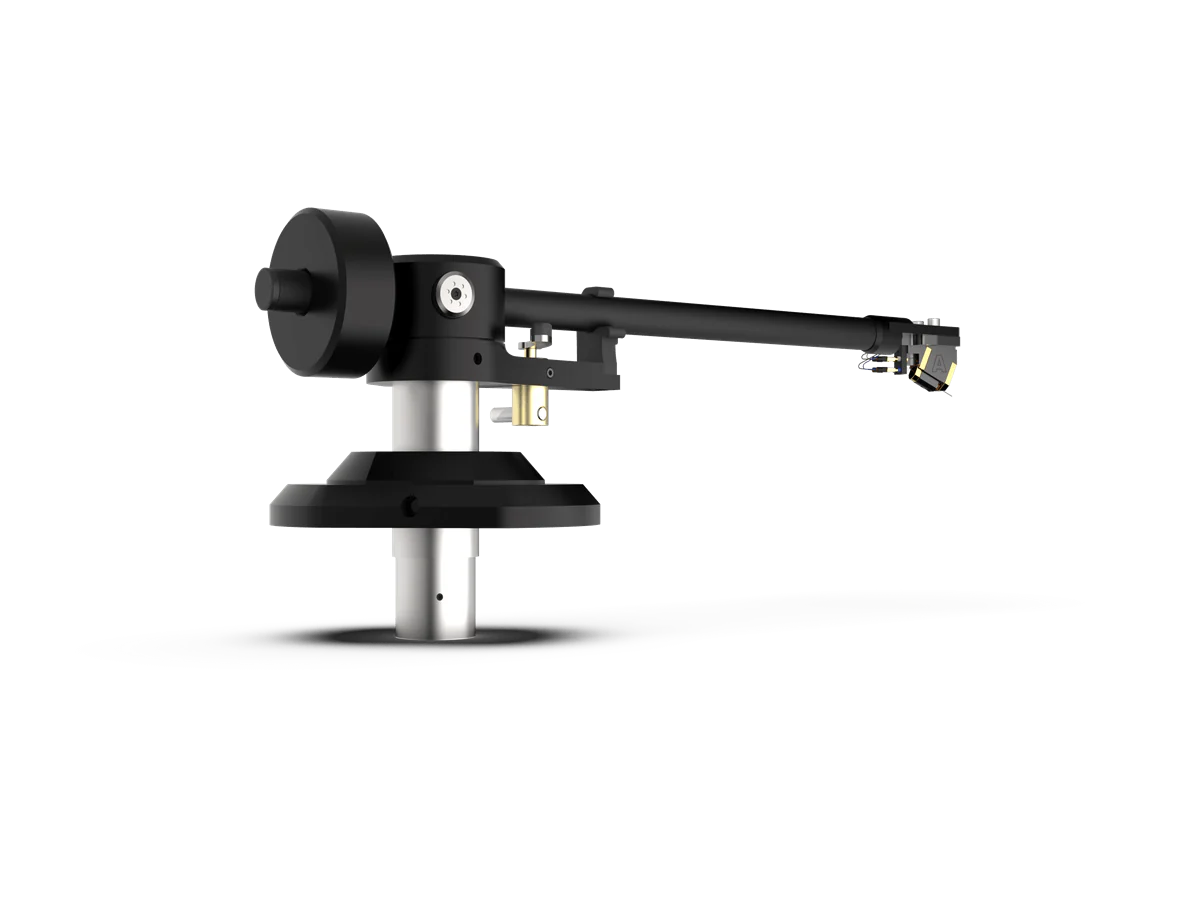

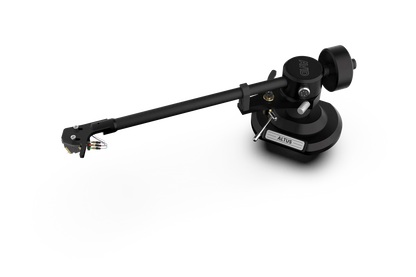

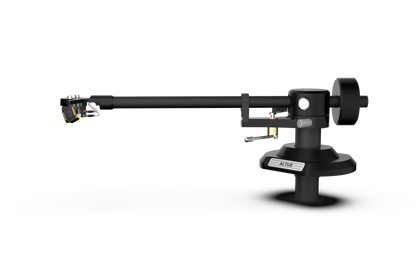

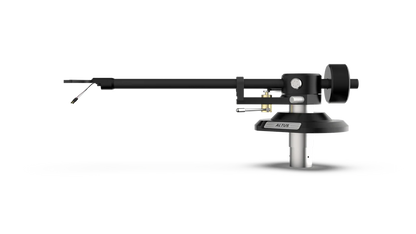

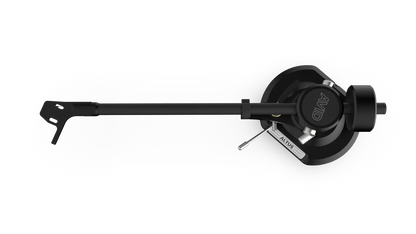

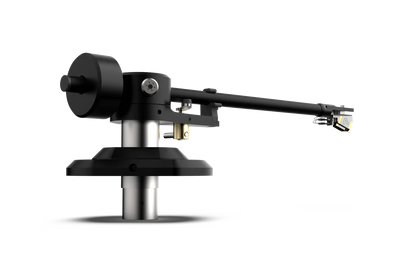

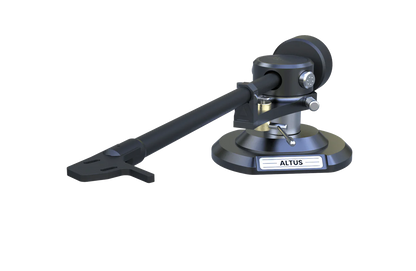

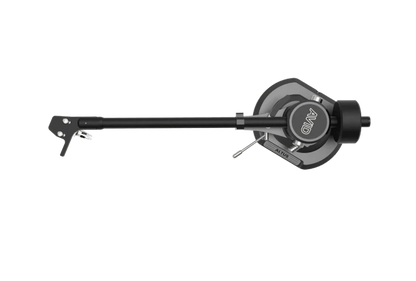

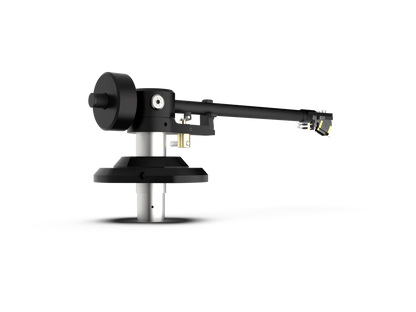

The AVID Altus™ Reference 9-Inch Tonearm combines precision mechanical engineering with a rigid, medium-mass design to provide exceptional cartridge control, accurate groove tracking, and refined analogue performance.
Hand-assembled in Cambridgeshire, England, the Altus is engineered to efficiently manage mechanical energy transfer between the cartridge and turntable platform. Its rigid aluminium arm tube, high-precision bearing assembly, and Progressive Bias Compensation system deliver excellent stability, low friction movement, and detailed musical reproduction.

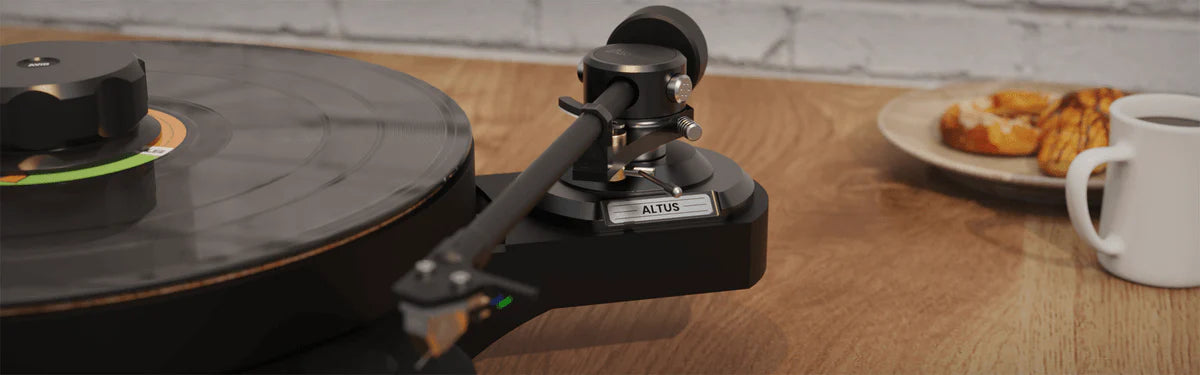

Designed for compatibility with a wide range of high-performance MM and MC cartridges, the Altus provides an ideal partner for AVID’s reference turntable platforms.
Key Features & Technological Innovations
-
Thick-Walled Drawn Aluminium Arm Tube: Features a rigid 2 mm profile aluminium wand designed to minimise unwanted resonance while maintaining structural integrity.
-
Micron-Tolerance Bearing Assembly: Precision vertical and horizontal bearings provide smooth movement with minimal friction and mechanical play.
-
Progressive Bias Compensation: Advanced anti-skate mechanism progressively adjusts compensation across the record surface for consistent tracking performance.
-
Rigid Mechanical Architecture: Integrated headshell, arm wand, and bearing structure provide efficient vibration transfer away from the cartridge.
-
Medium-Mass Design: With a 15 g effective mass, the Altus is suited to a broad range of medium- and high-performance MM and MC cartridges.
-
Detachable DIN Connection: Features a gold-plated 5-pin DIN connection with supplied audiophile DIN-to-RCA cable.
Technical Specifications
| Specification Metric |
AVID Altus™ Tonearm Specification |
| Tonearm Type |
9-Inch Medium-Mass Gimbal Tonearm |
| Arm Tube Construction |
Solid Drawn Aluminium (2 mm Wall Profile) |
| Effective Length |
233 mm |
| Mounting Distance |
216 mm (SME / Standard 9" Template Compatible) |
| Offset Angle |
23 Degrees |
| Overhang |
17 mm |
| Effective Mass |
15 g (Medium Mass) |
| Cartridge Balance Range |
5 g – 13 g |
| Bias Mechanism |
Progressive Dynamic Anti-Skate |
| Included Cable |
1.3 m Detachable 5-Pin DIN to Gold-Plated RCA (XLR Optional) |
| Total Weight |
680 g |
