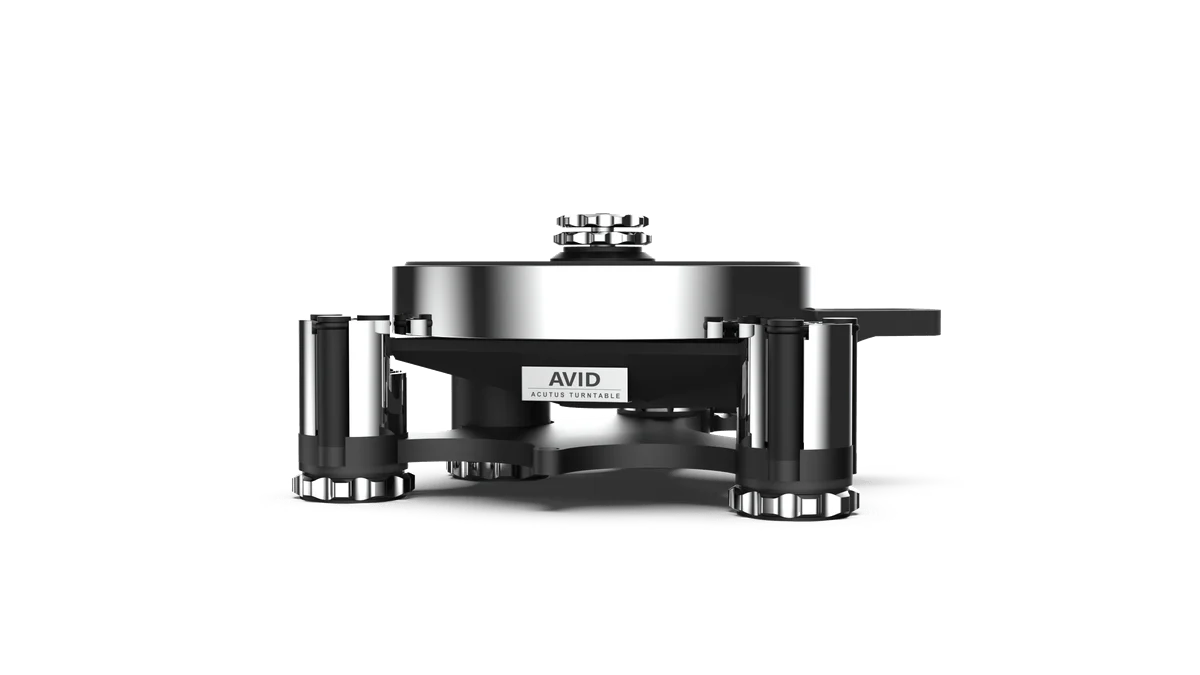

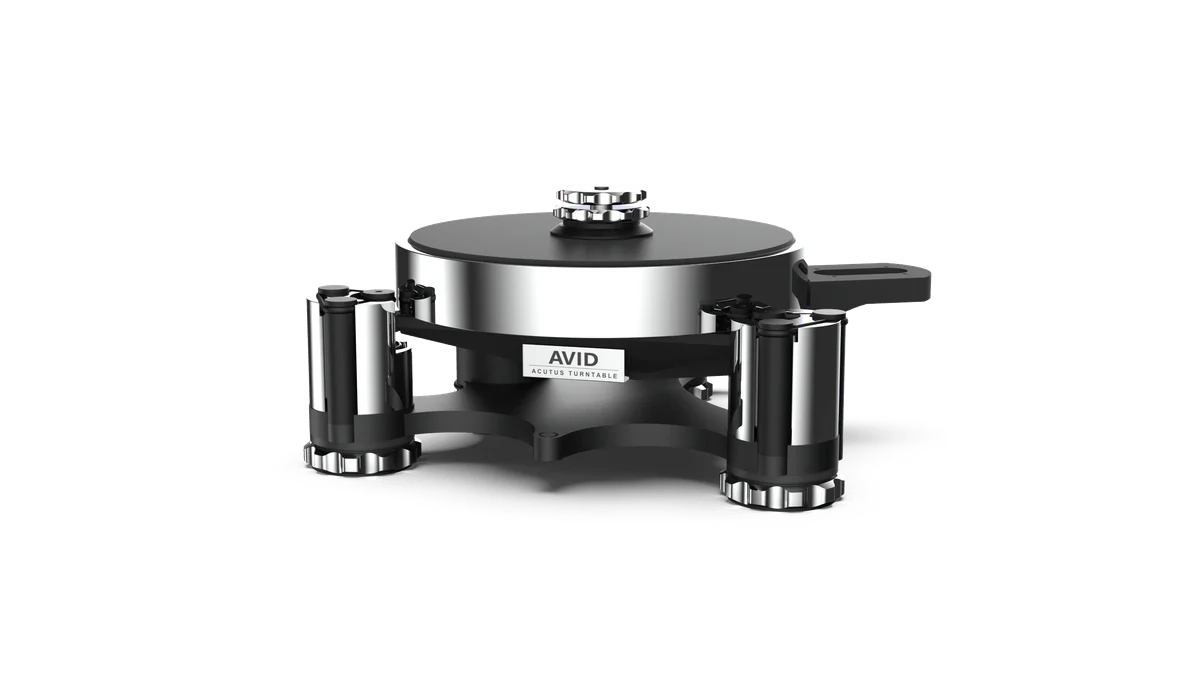

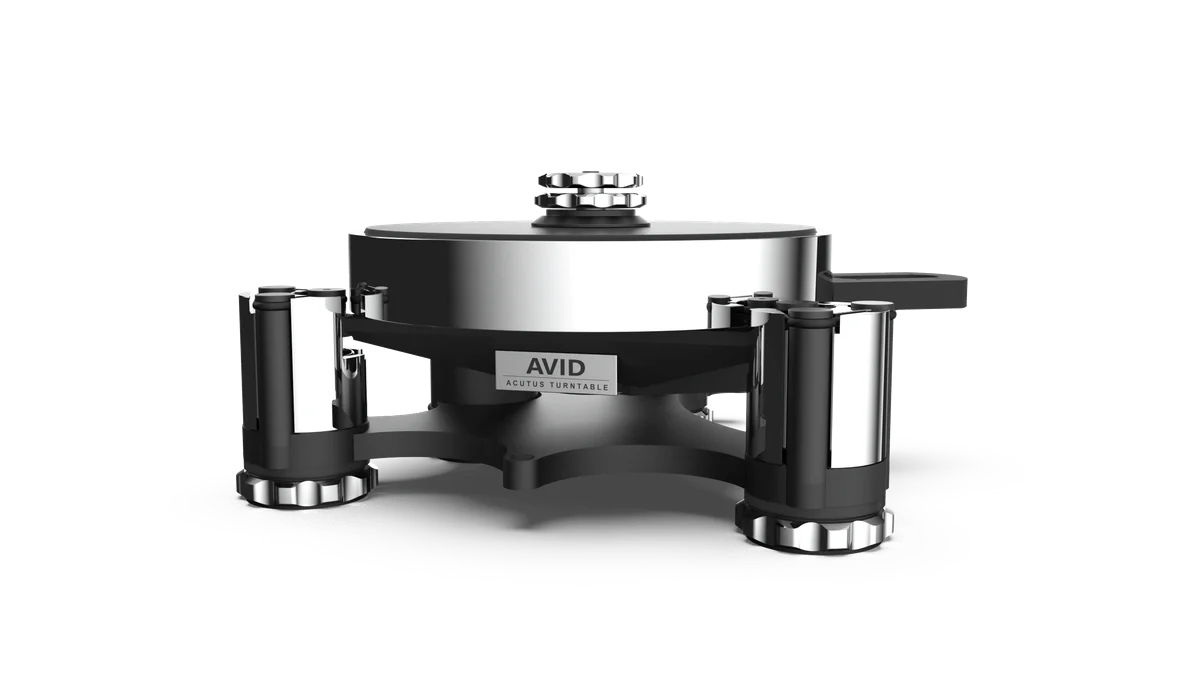

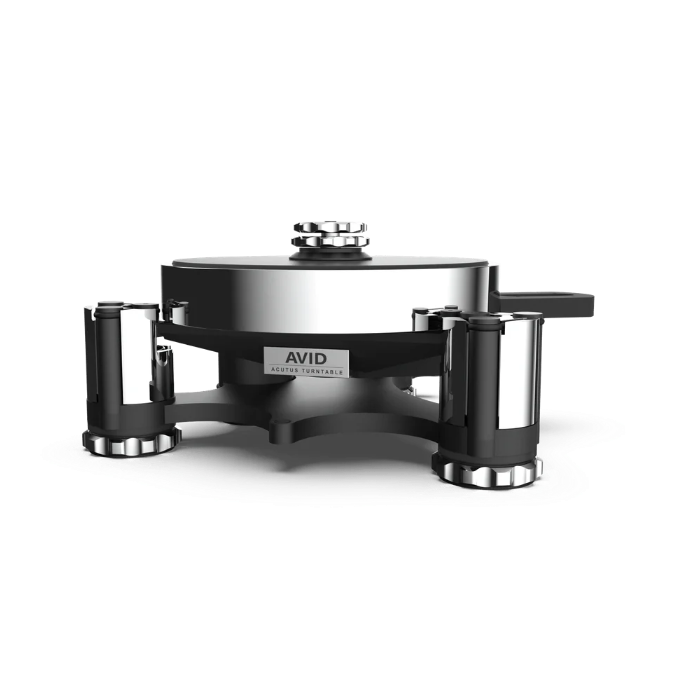

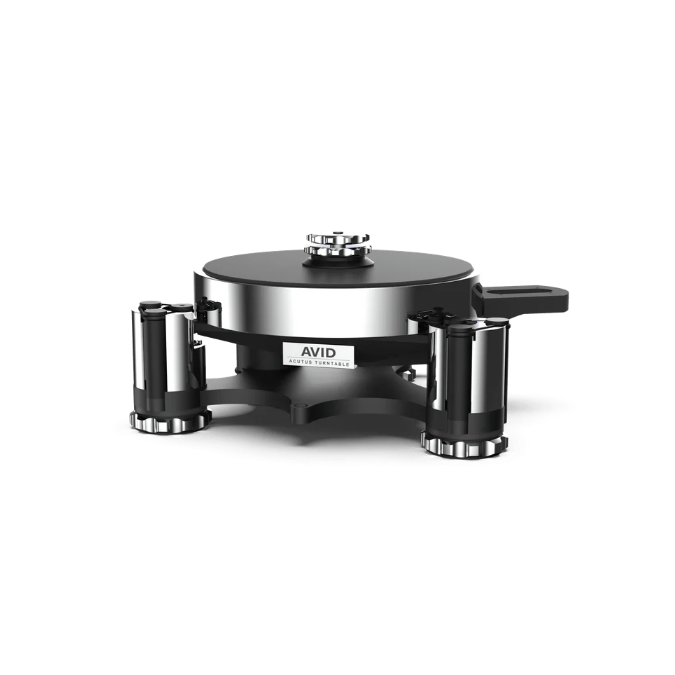

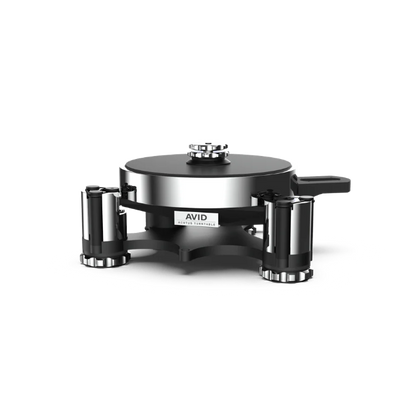

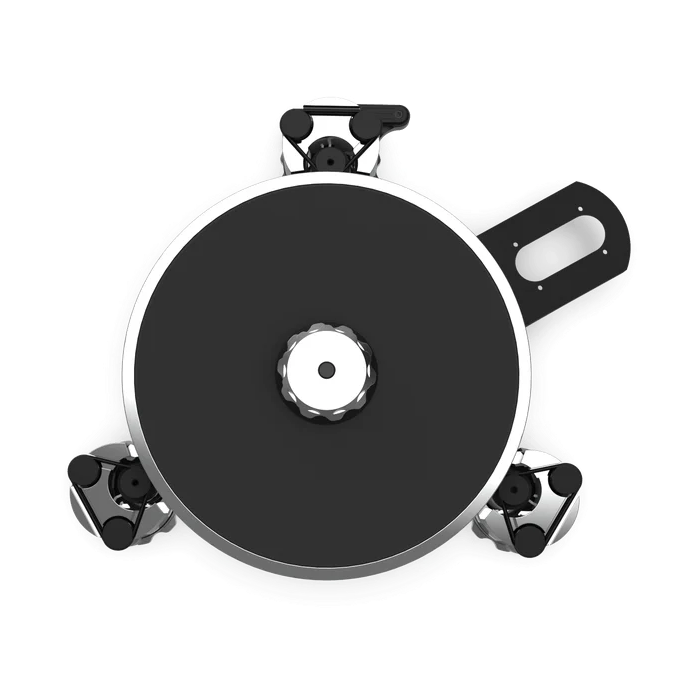

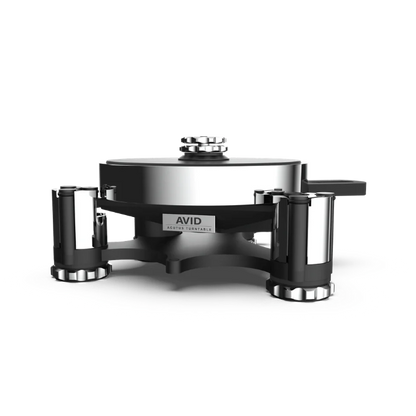

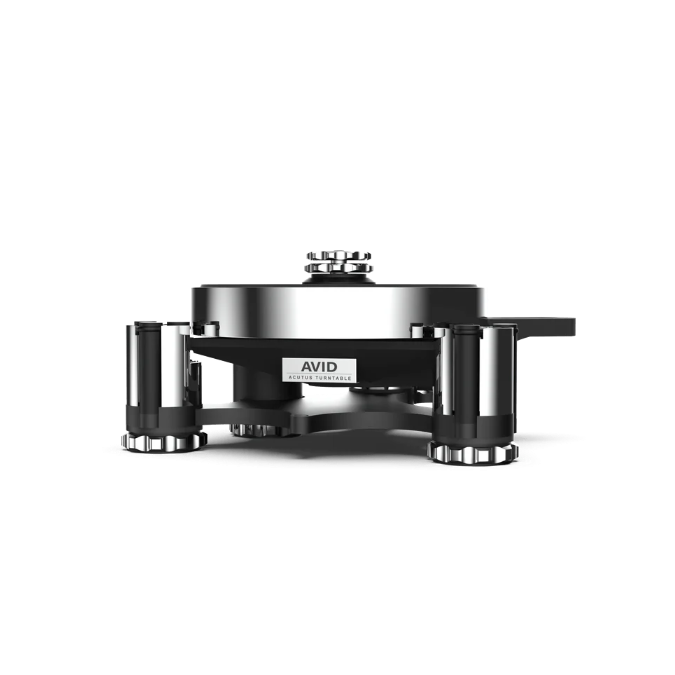

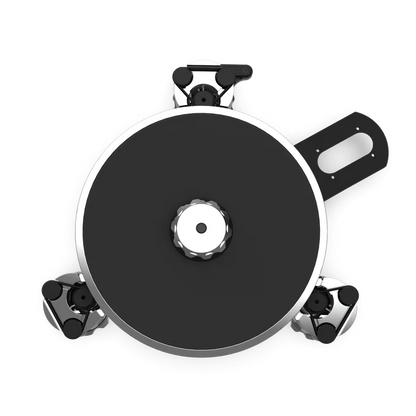

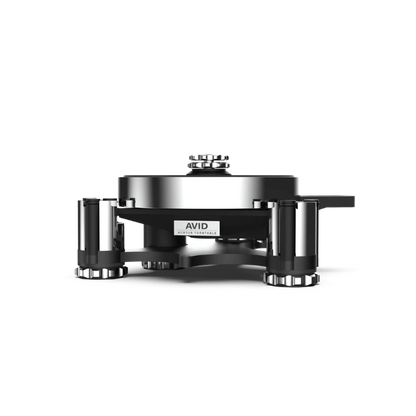

The AVID ACUTUS™ Reference Black & Chrome Turntable represents a significant evolution of AVID HiFi’s flagship analogue engineering, combining advanced mechanical isolation, precision speed control, and enhanced power delivery for reference-level vinyl playback.

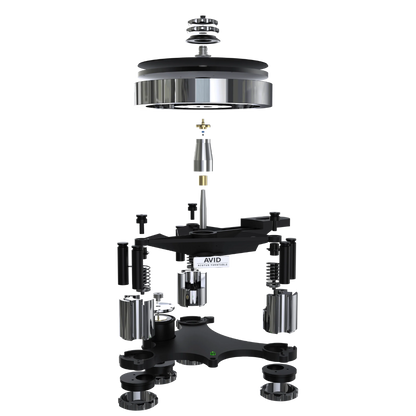

Finished in striking mirror-polished Chrome with contrasting black anodised components, the Acutus Reference builds upon AVID’s renowned suspended turntable architecture with a dedicated Reference Power Supply Unit designed to provide exceptional motor stability and rotational accuracy.

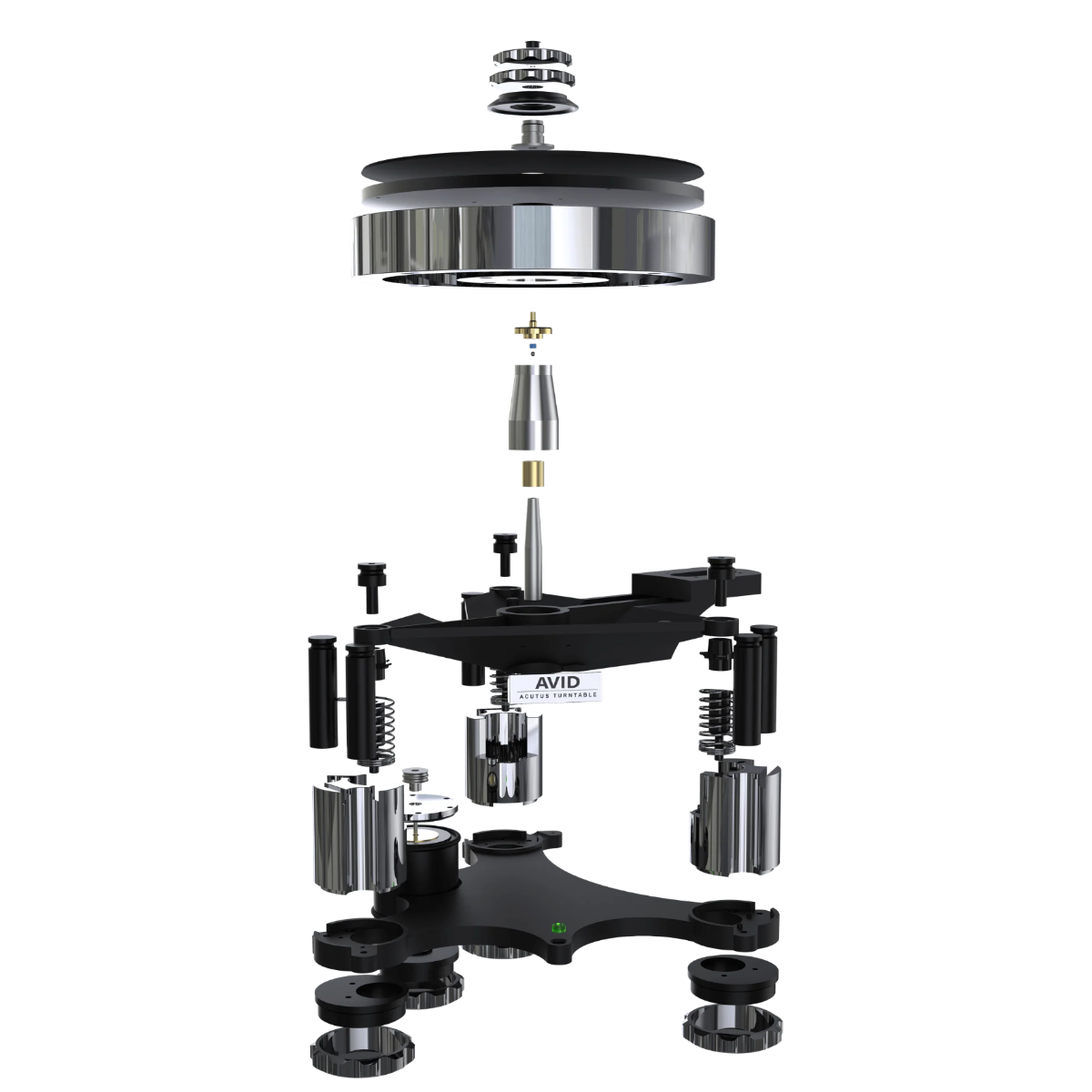

Featuring a 10 kg damped chrome-plated aluminium platter, inverted sapphire bearing system, dual-stage record clamping, and a three-point adjustable suspension platform, the Acutus Reference delivers exceptional timing, low noise performance, and detailed analogue reproduction.
Key Features & Technological Innovations
-

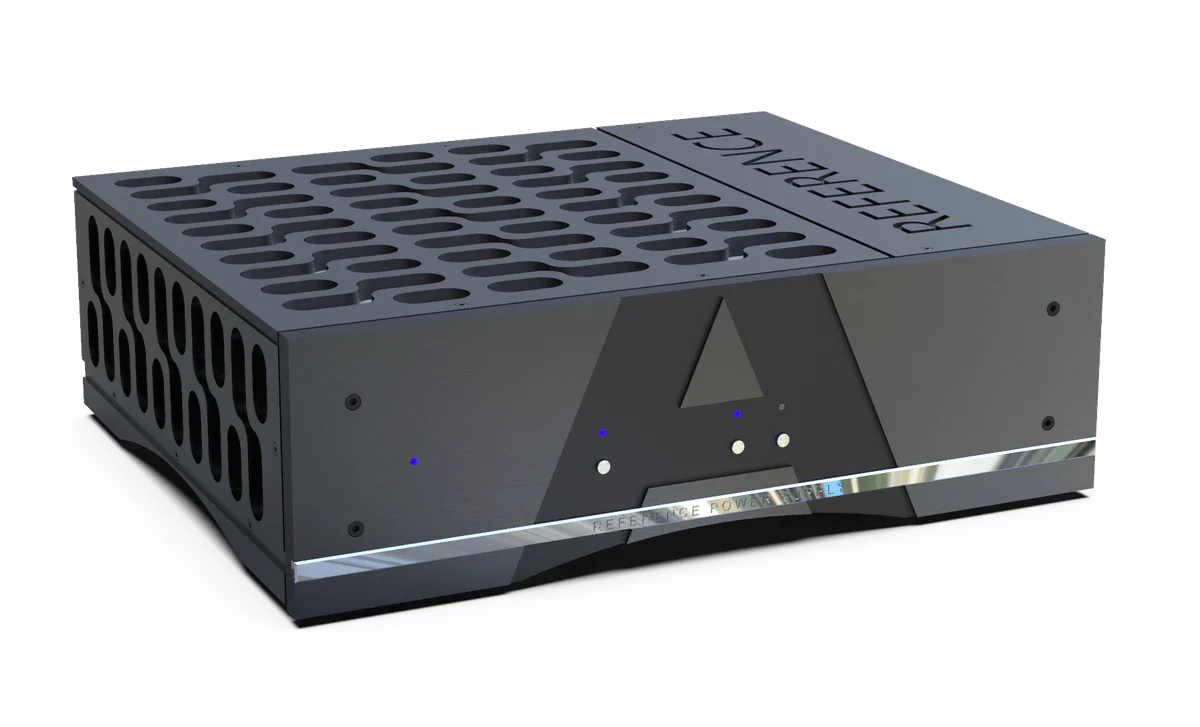

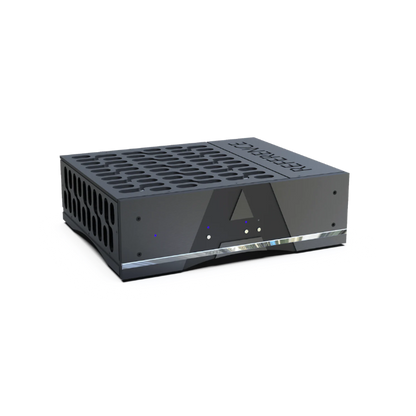

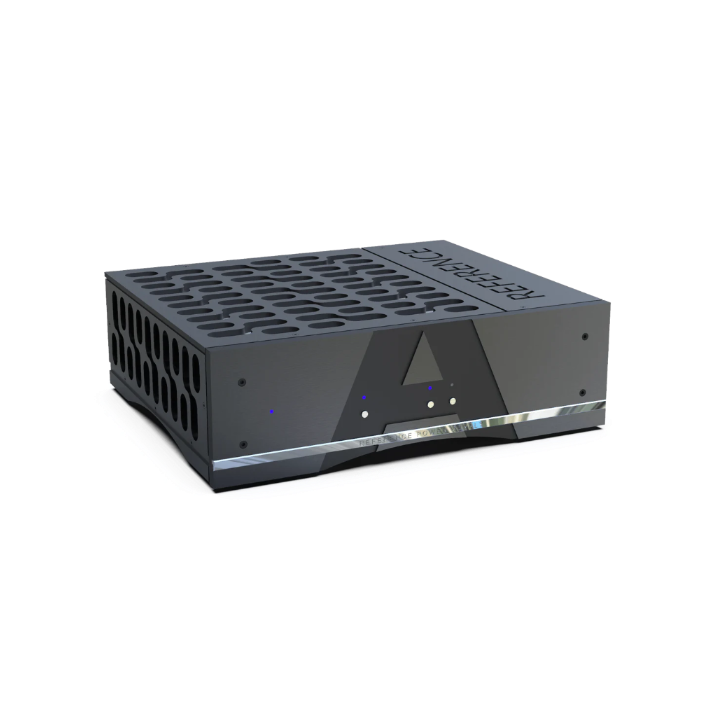

Dedicated Reference Power Supply: Features a substantial 1000VA mains transformer and 160,000µF energy storage capacity to provide clean, stable power delivery to the motor system.
-
Dual-Stage Grounding Record Clamp: Improves record coupling while helping transfer unwanted stylus-generated energy away from the vinyl surface.
-

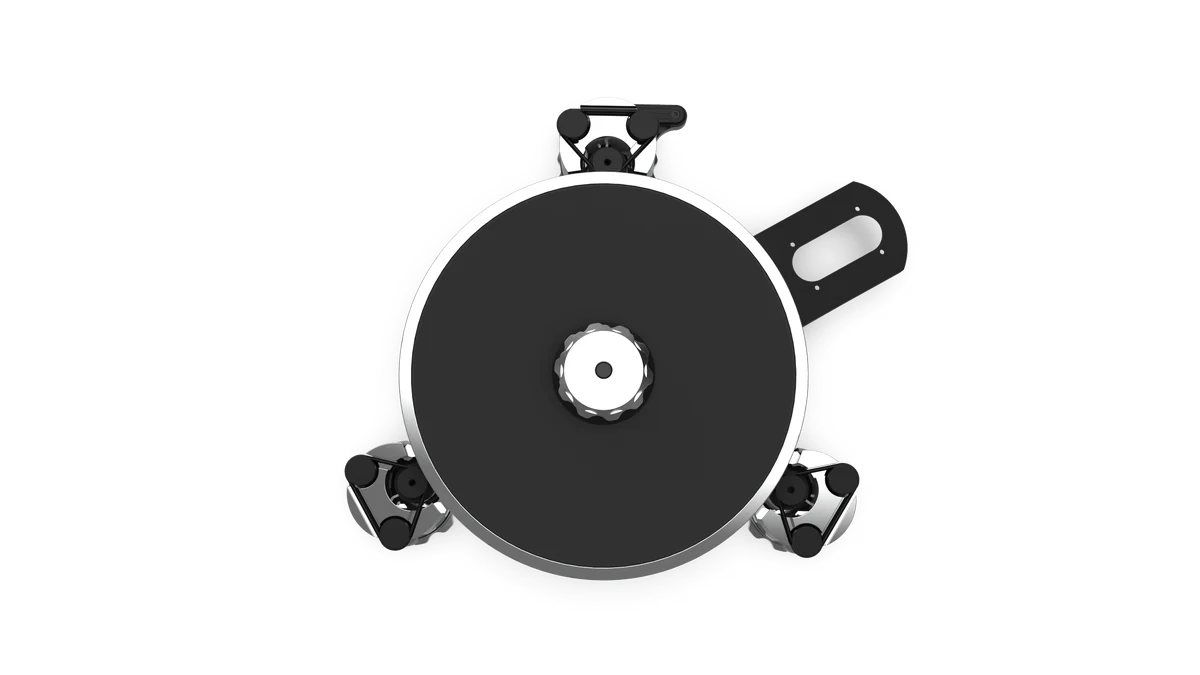

10kg Chrome-Plated Aluminium Platter: High-mass platter construction with damping treatment and resin mat provides rotational stability and controlled resonance characteristics.
-

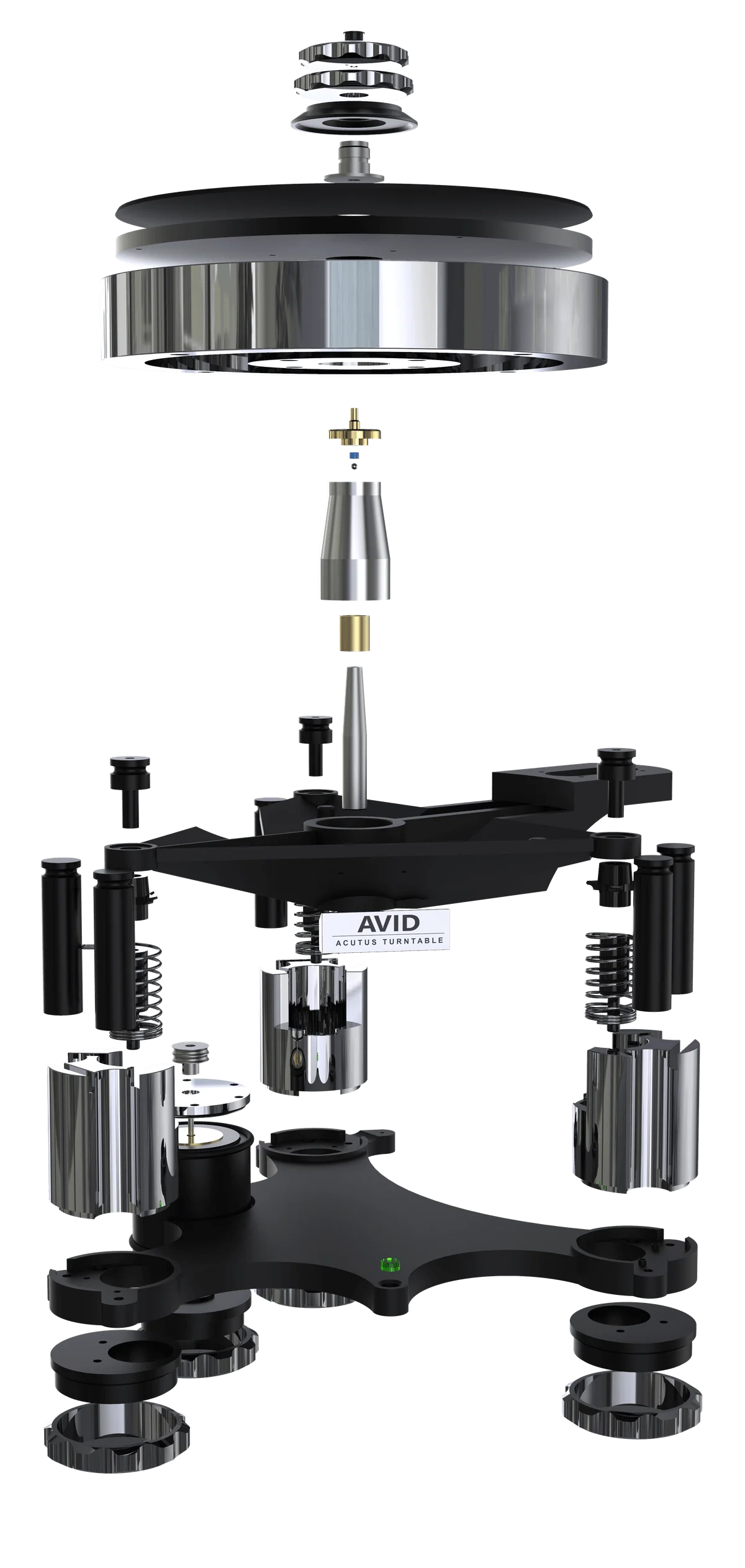

Inverted Sapphire & Tungsten Bearing: Precision bearing system uses a tungsten carbide thrust point and sapphire jewel interface for smooth, accurate platter rotation.
-
Damped Cast Aluminium Subchassis: Rigid aluminium construction with specialised damping treatment helps dissipate mechanical energy.
-
Adjustable 3-Point Spring Suspension: Tuned suspension system isolates the cartridge from footfall vibration and acoustic feedback.
Technical Specifications
| Specification Metric |
AVID ACUTUS™ Reference Specification |
| Drive Architecture |
Twin Round-Section Belt Drive |
| Speeds |
33.3 & 45.0 RPM (DSP Vari-Speed Adjustable) |
| Platter Mass & Finish |
10.0 kg Damped Chrome-Plated Aluminium with Resin Mat |
| Bearing Assembly |
Inverted Stainless Steel with Self-Lubricating Sleeve |
| Thrust Point |
Tungsten Carbide Ball / Sapphire Jewel |
| Suspension |
3-Point Spring (Vertical 2.5Hz, Lateral 4.5Hz) |
| Tonearm Mounting |
SME Template (Single or Twin Tonearm Adapters Available) |
| Motor Drive |
Hand-Built 24V 140mNm AC Synchronous |
| Power Supply Unit |
External Reference DSP PSU (1000VA Transformer / 160,000µF Storage) |

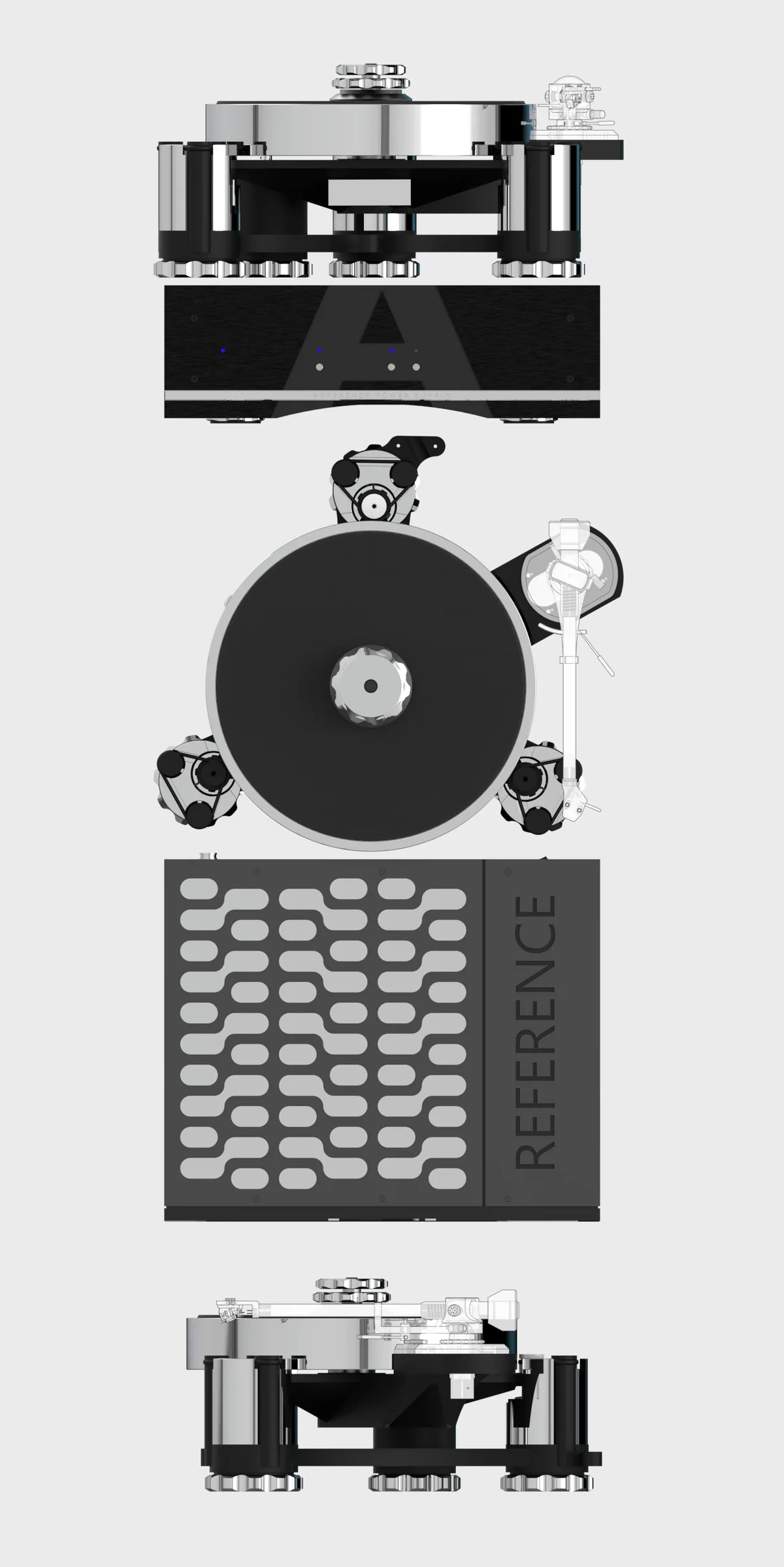

| Turntable Dimensions (Overall) |
460 mm × 400 mm × 210 mm (W × D × H) |
| Power Supply Dimensions |
415 mm × 350 mm × 140 mm (W × D × H) |
| Net Weight |
19.0 kg (Turntable) + 20.1 kg (Reference PSU) |
