The Ultimate Expression of Analogue Authority & Power Delivery | Available at Trimira Audio

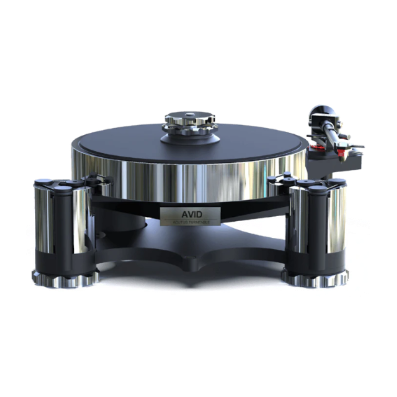

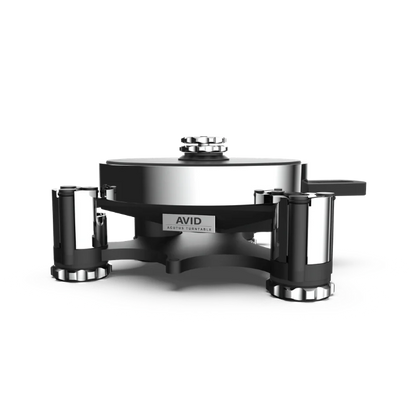

The AVID ACUTUS™ Mono Black & Chrome Reference Turntable represents the highest expression of AVID HiFi’s analogue engineering philosophy, combining advanced mechanical isolation, precision speed control, and uncompromising power delivery.
Finished in a striking combination of polished Chrome plating and deep black accents, the Acutus Mono builds upon AVID’s flagship suspended turntable architecture with a dedicated Twin Mono DSP power supply system designed to provide exceptional motor control and rotational stability.

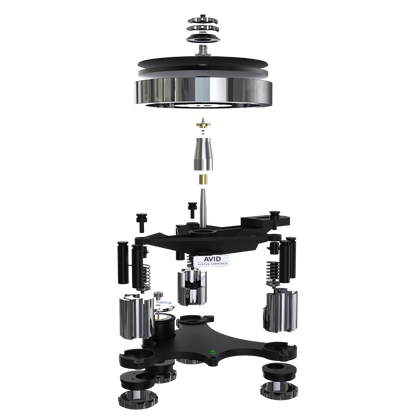

Featuring a 10 kg damped chrome-plated aluminium platter, dual-operation record clamping system, inverted sapphire bearing, and three-point adjustable suspension, the Acutus Mono delivers outstanding timing, dynamic scale, and microscopic vinyl detail retrieval.
Key Features & Technological Innovations
-
52 kg Twin Mono DSP Power Supply: Dedicated motor drive architecture supplies independent power amplification to each motor coil for improved torque control, speed stability, and reduced motor vibration.
-
Dual-Operation Grounding Record Clamp: Secures vinyl in two stages, improving record coupling while helping transfer unwanted stylus energy away from the playback surface.
-
10 kg Damped Chrome Platter & Resin Surface: High-mass aluminium platter with chrome finish and resin interface provides rotational stability and controlled resonance characteristics.
-
Inverted Sapphire & Tungsten Carbide Bearing: Precision bearing system uses a tungsten carbide thrust point and sapphire jewel interface for low mechanical noise and long-term accuracy.
-
Vibration-Tuned Cast Subchassis: Damped aluminium construction helps dissipate mechanical energy while maintaining structural rigidity.
-
Adjustable 3-Point Spring Suspension: Tuned suspension isolates the playback system from footfall vibration and acoustic feedback.
Technical Specifications
| Specification Metric |
AVID ACUTUS™ Mono Black & Chrome Specification |
| Drive System |
Twin Round-Section Belt Drive |
| Speeds |
33.3 & 45.0 RPM (DSP Electronic Fine-Tuning) |
| Platter Mass & Material |
10.0 kg Damped Chrome-Plated Aluminium with Resin Mat |
| Main Bearing Assembly |
Inverted Stainless Steel with Self-Lubricating Sleeve |
| Thrust Point |
Tungsten Carbide Ball / Sapphire Jewel |
| Suspension |
3-Point Spring (Vertical 2.5 Hz, Lateral 4.5 Hz) |
| Tonearm Mounting |
SME Template (Single or Twin Tonearm Adapters Available) |
| Motor Type |
Hand-Built 24V 140 mNm AC Synchronous |
| Power Supply Unit |
External DSP Vari-Speed Twin Mono Unit (100–240 VAC, 20W Max) |
| Turntable Dimensions (Overall) |
460 mm × 400 mm × 210 mm (W × D × H) |
| Power Supply Dimensions |
500 mm × 450 mm × 240 mm (W × D × H) |
| Net Weight |
19.0 kg (Turntable) + 52.0 kg (Twin Mono PSU) |
Consult with the High-End Analogue Specialists at Trimira Audio
Experience statement-level vinyl playback with the AVID ACUTUS™ Mono Black & Chrome Reference Turntable. Contact the analogue specialists at Trimira Audio in Brisbane to discuss tonearm selection, cartridge matching, phono stage pairing, or to arrange a private listening demonstration.
