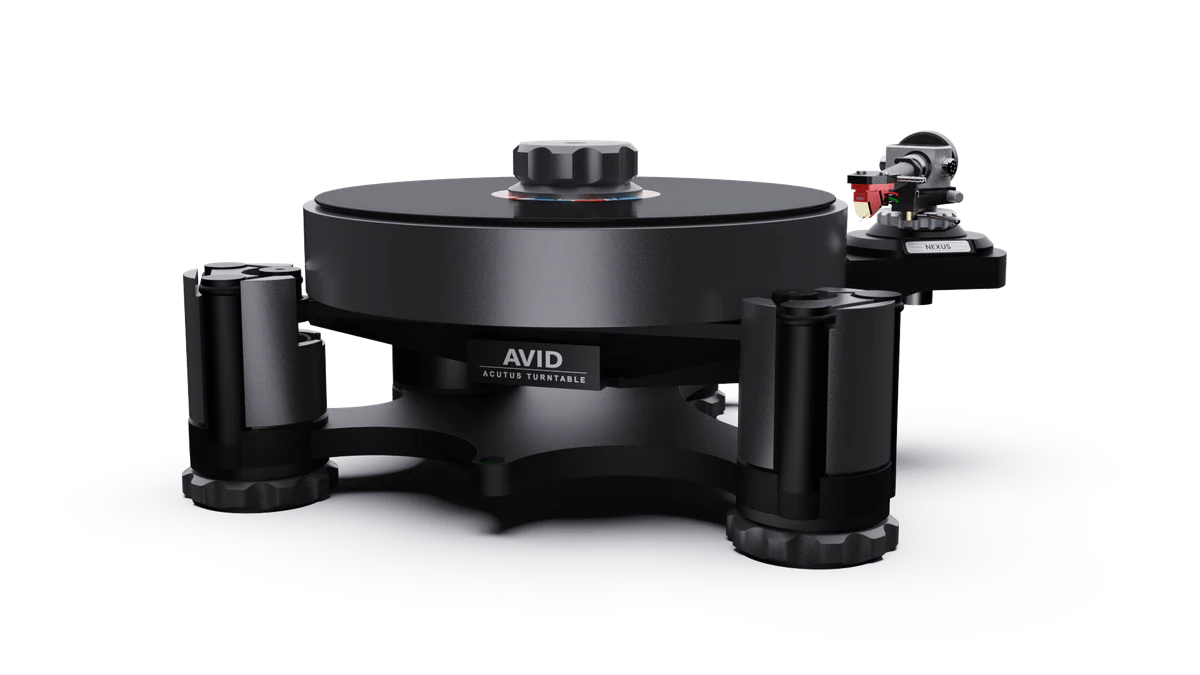

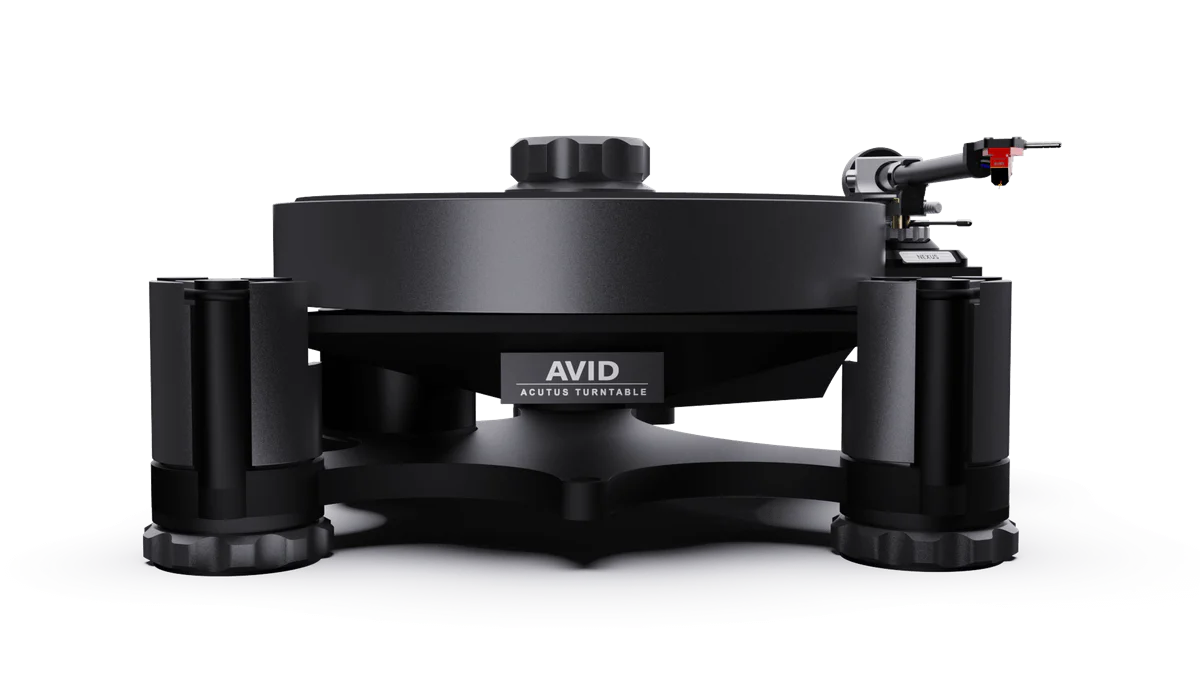

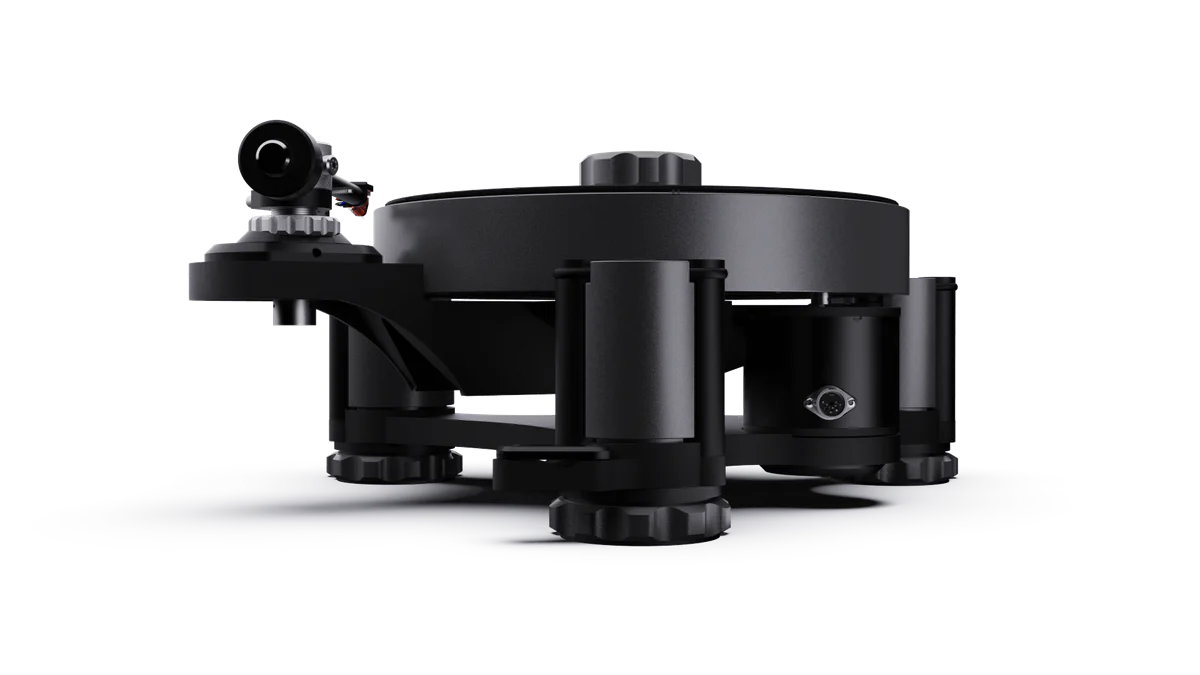

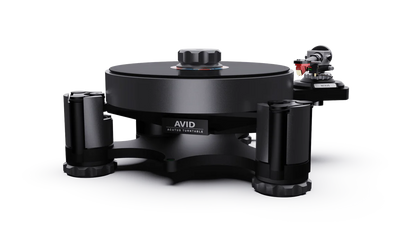

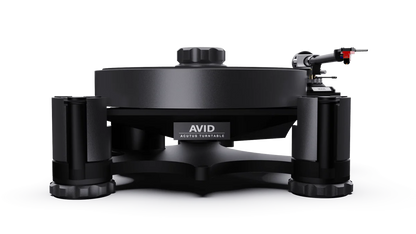

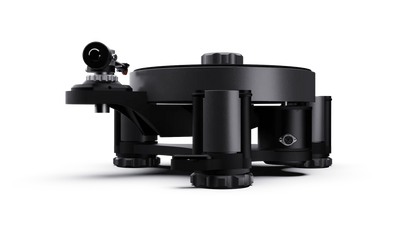

The AVID ACUTUS™ Dark Iron (STD) Turntable combines AVID HiFi’s advanced mechanical engineering with a distinctive Sparkle Black anodised finish, delivering reference-level vinyl playback with exceptional speed stability, vibration control, and analogue precision.
Handcrafted in Cambridgeshire, England, the Dark Iron edition introduces an integrated motor housing design that improves belt alignment and rotational consistency while maintaining AVID’s signature suspended subchassis architecture.
Featuring a 10 kg mass-loaded aluminium platter, inverted sapphire jewel bearing, tungsten carbide thrust point, three-point adjustable suspension, and external DSP Vari-Speed power supply, the ACUTUS™ Dark Iron is engineered to extract maximum detail and musical expression from vinyl recordings.
Key Features & Technological Innovations
-
Single-Action Aluminium Grounding Clamp: Secures records directly to the spindle while improving vinyl coupling and transferring unwanted energy away from the cartridge.
-
10kg Damped Aluminium Platter: High-mass platter construction with a 10mm damping disc reduces resonance while maintaining rotational stability.
-
Inverted Sapphire Bearing System: Precision bearing assembly uses a tungsten carbide ball and sapphire jewel interface for extremely low mechanical noise and accurate rotation.
-
Adjustable 3-Point Spring Suspension: Tuned suspension system isolates the playback platform from external vibration and footfall energy.
-
Damped Cast Aluminium Subchassis: Rigid aluminium construction with specialised damping treatment helps dissipate mechanical energy.
-
Integrated Motor Framework & DSP Control: Built-in 24V AC synchronous motor provides precise belt alignment, controlled by an external DSP Vari-Speed power supply.
Technical Specifications
| Specification Metric |
AVID ACUTUS™ Dark Iron (STD) Specification |
| Drive Architecture |
Twin Round-Section Belt Drive |
| Platter Mass & Material |
10.0 kg Aluminium with 10mm Damping Disc |
| Main Bearing Type |
Inverted Stainless Steel with Self-Lubricating Sleeve |
| Thrust Point |
Tungsten Carbide Ball / Sapphire Jewel |
| Subchassis Suspension |
3-Point Spring (Vertical 2.5Hz, Lateral 4.5Hz) |
| Tonearm Mounting |
SME Template (Single or Twin Tonearm Adapters Available) |
| Motor Drive |
Integrated 24V 140mNm AC Synchronous Motor |
| Power Supply Unit |
External DSP Vari-Speed Control Unit (100–240VAC) |
| Speeds |
33.3 & 45.0 RPM (Electronically Adjustable) |
| Turntable Dimensions (Overall) |
460 mm × 400 mm × 210 mm (W × D × H) |
| Power Supply Dimensions |
250 mm × 215 mm × 95 mm (W × D × H) |
| Net Weight |
19.0 kg (Turntable) + 3.5 kg (PSU) |
| Finish |
Sparkle Black Anodised Aluminium |
Consult with the High-End Analogue Specialists at Trimira Audio
Experience the precision and musical authority of the AVID ACUTUS™ Dark Iron (STD). Contact the analogue specialists at Trimira Audio in Brisbane to discuss tonearm and cartridge matching, phono stage selection, or to arrange a private listening audition.
