High-Current Dual-Mono Power & Modern Audiophile Engineering | Available at Trimira Audio

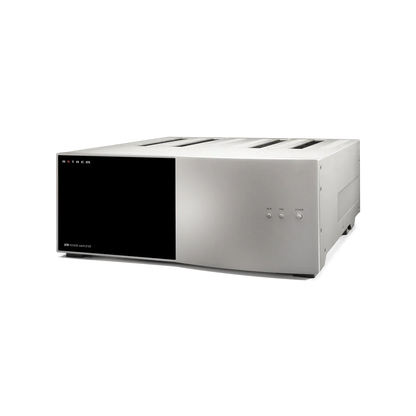

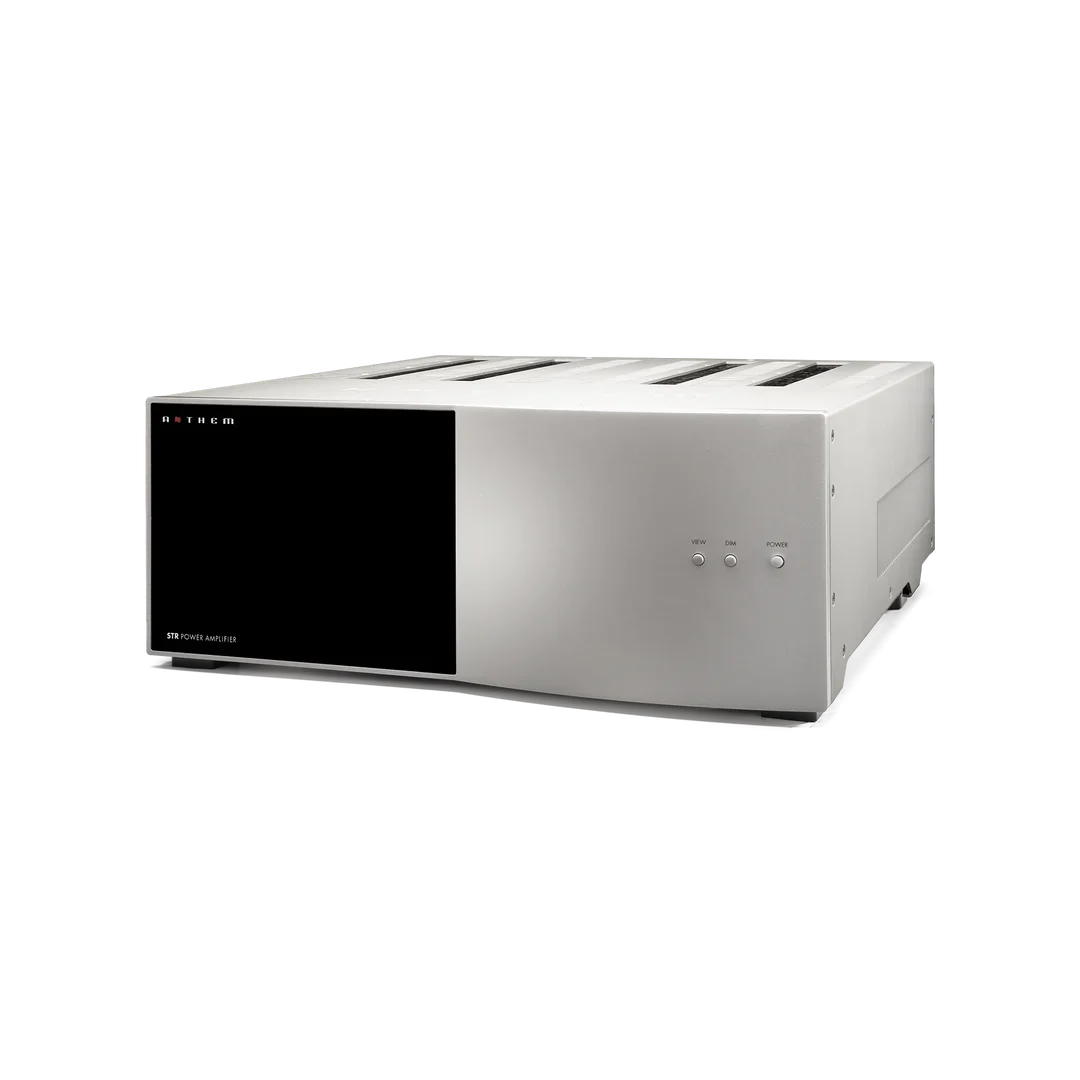

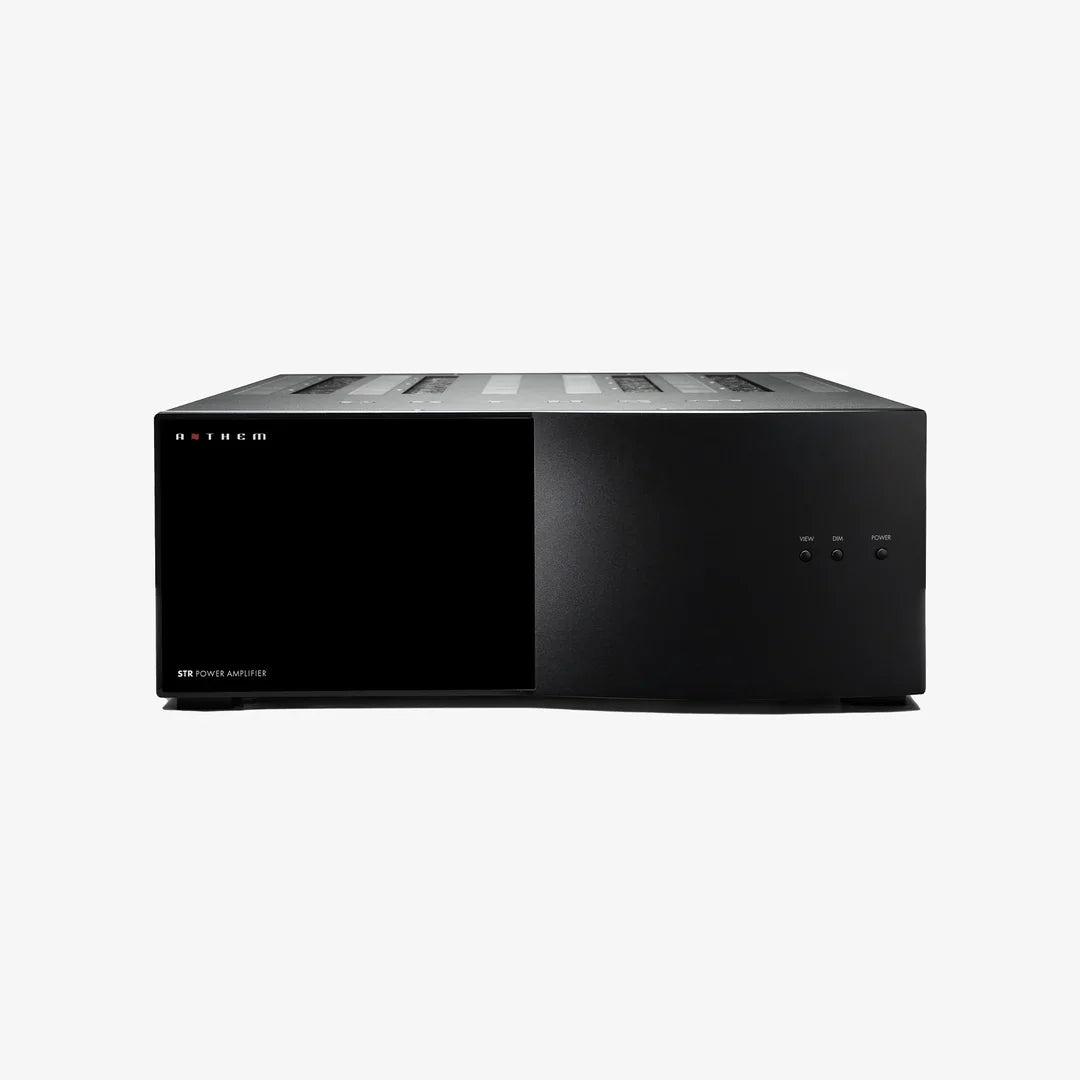

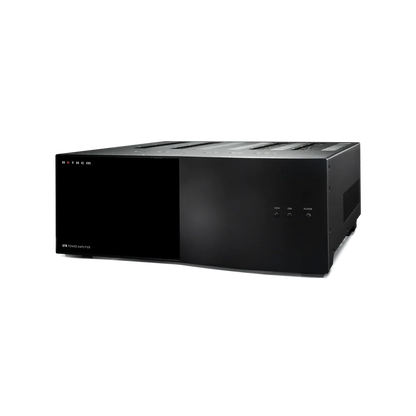

Designed and manufactured in Canada, the Anthem STR Power Amplifier stands as the flagship two-channel power amplifier of Anthem's revolutionary STR Series. Engineered to serve as the beating heart of world-class two-channel sound systems, the STR Power Amplifier combines monumental power generation with refined audiophile transparency. Built using a true dual-mono internal architecture, it delivers a continuous 400 Watts per channel into 8 Ohms, 600 Watts per channel into 4 Ohms, and a massive 800 Watts per channel into 2 Ohms with both channels driven simultaneously.

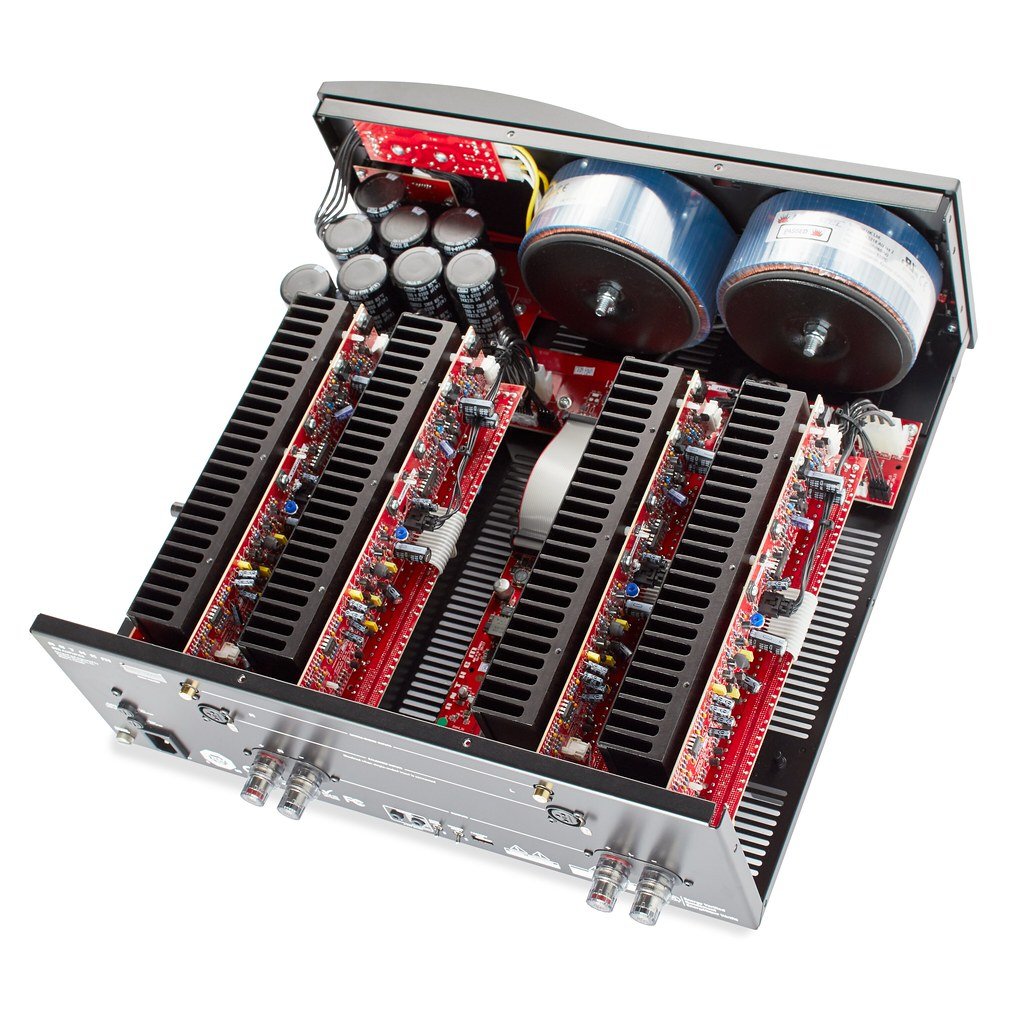

The STR Power Amplifier benefits from Anthem's proprietary cascoded complementary feedback input stage, which utilizes 8 low-noise bipolar input devices per channel to achieve high linearity, ultra-wide bandwidth, and minimal distortion. Power delivery is handled by 16 high-current bipolar output devices per channel (32 output transistors total) paired with twin, custom-wound low-profile toroidal transformers. On the front panel, a striking 7-inch graphic display provides real-time digital power meters and system status navigation. To safeguard performance without limiting dynamic range, Anthem's non-invasive Advanced Load Monitoring (ALM™) system continuously tracks temperature, voltage, and current without putting fuses in the audio signal path.
Key Features & Technological Innovations
-
True Dual-Mono Architecture: Features two entirely separate power supplies and low-profile toroidal transformers to eliminate cross-talk and deliver absolute channel isolation.
-
400W / 600W / 800W Power Output: Delivers immense power reserves (400W @ 8 Ohms, 600W @ 4 Ohms, 800W @ 2 Ohms continuous) to drive even the most difficult loudspeaker loads with complete control.
-
16 Bipolar Output Devices Per Channel: Employs 32 total discrete output transistors in Class AB configuration for instantaneous peak current capability and stress-free reliability.
-
Cascoded Complementary Feedback Input Stage: Hand-matched, low-noise input devices configured in active-load cascoded feedback reduce distortion and preserve micro-details.
-

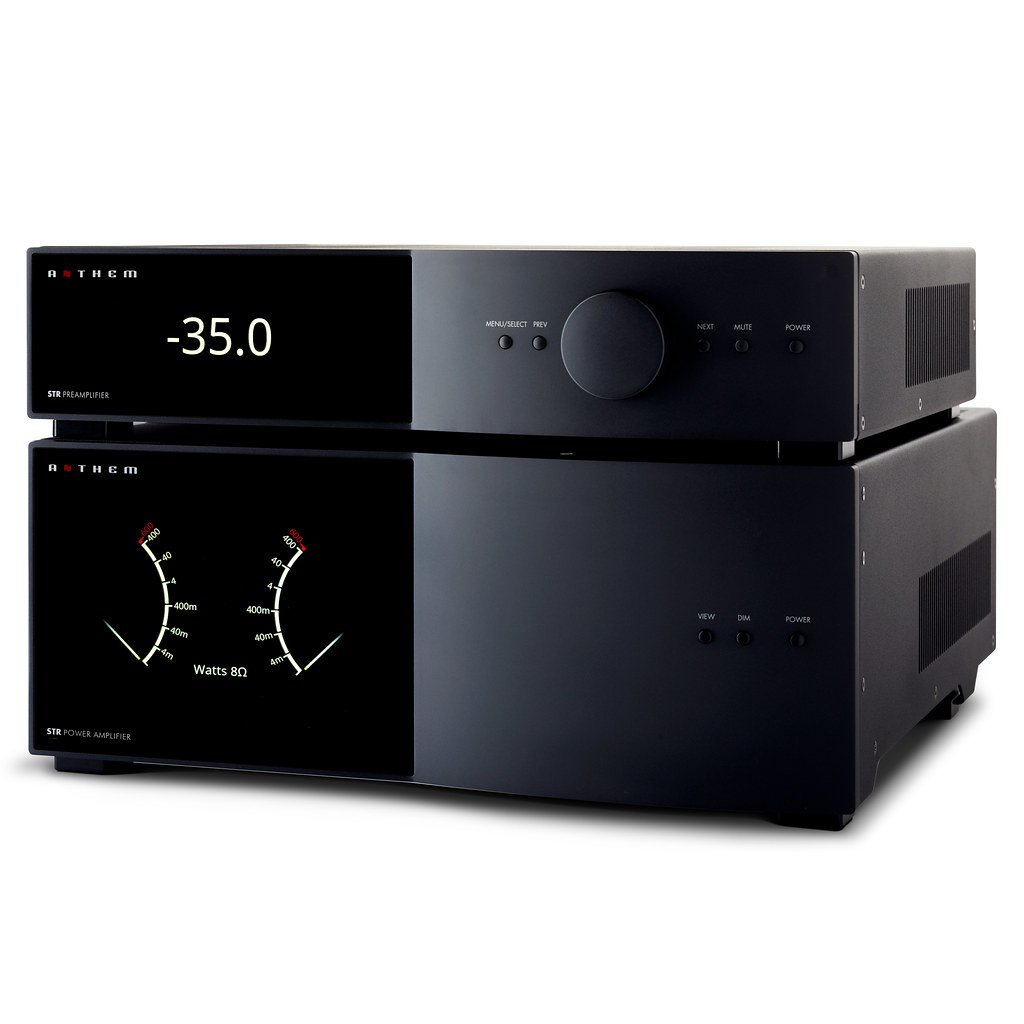

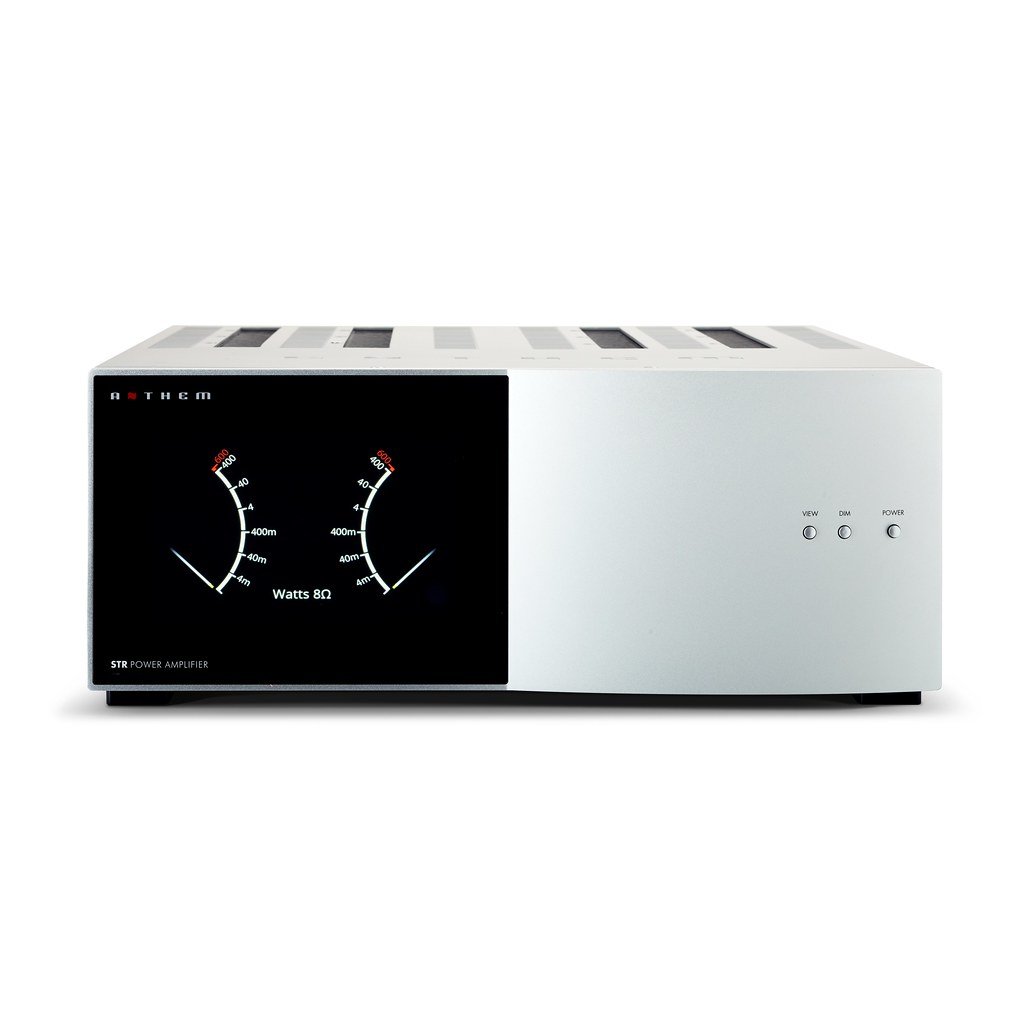

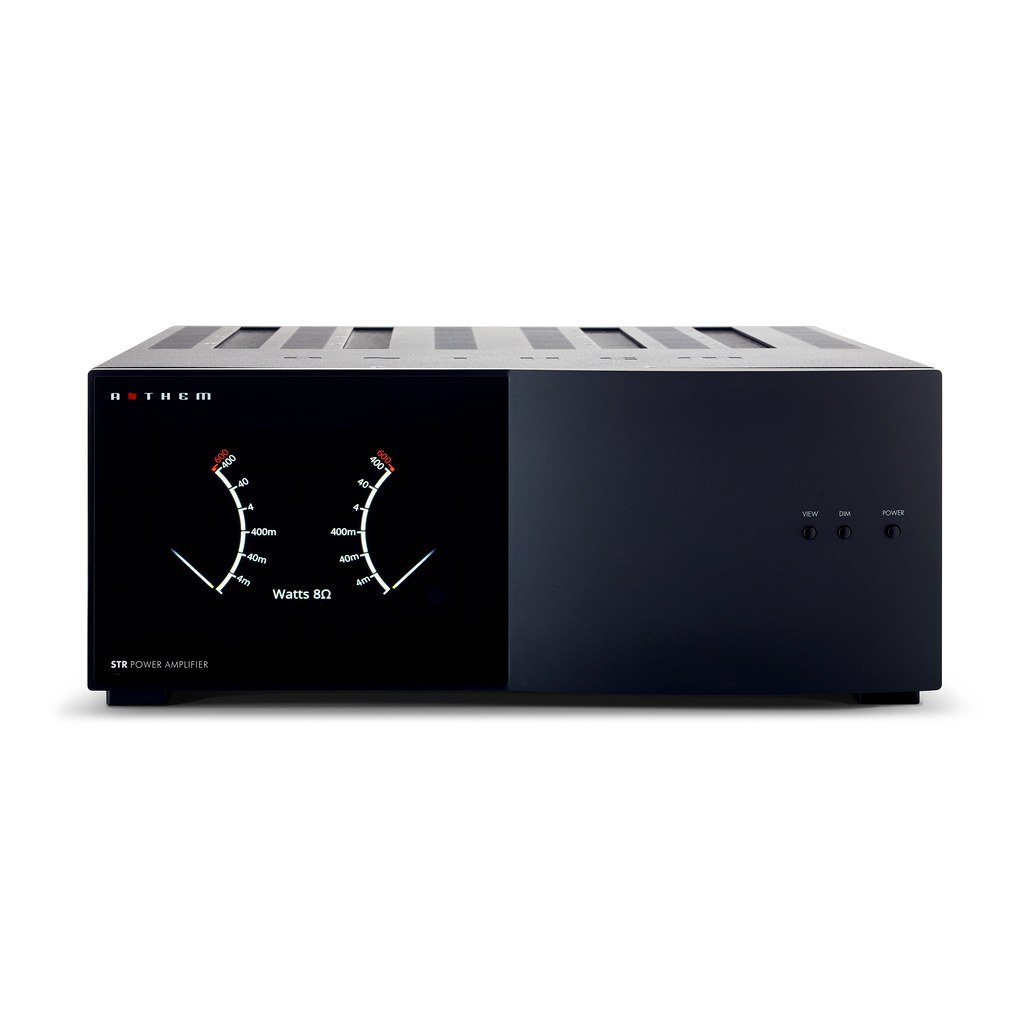

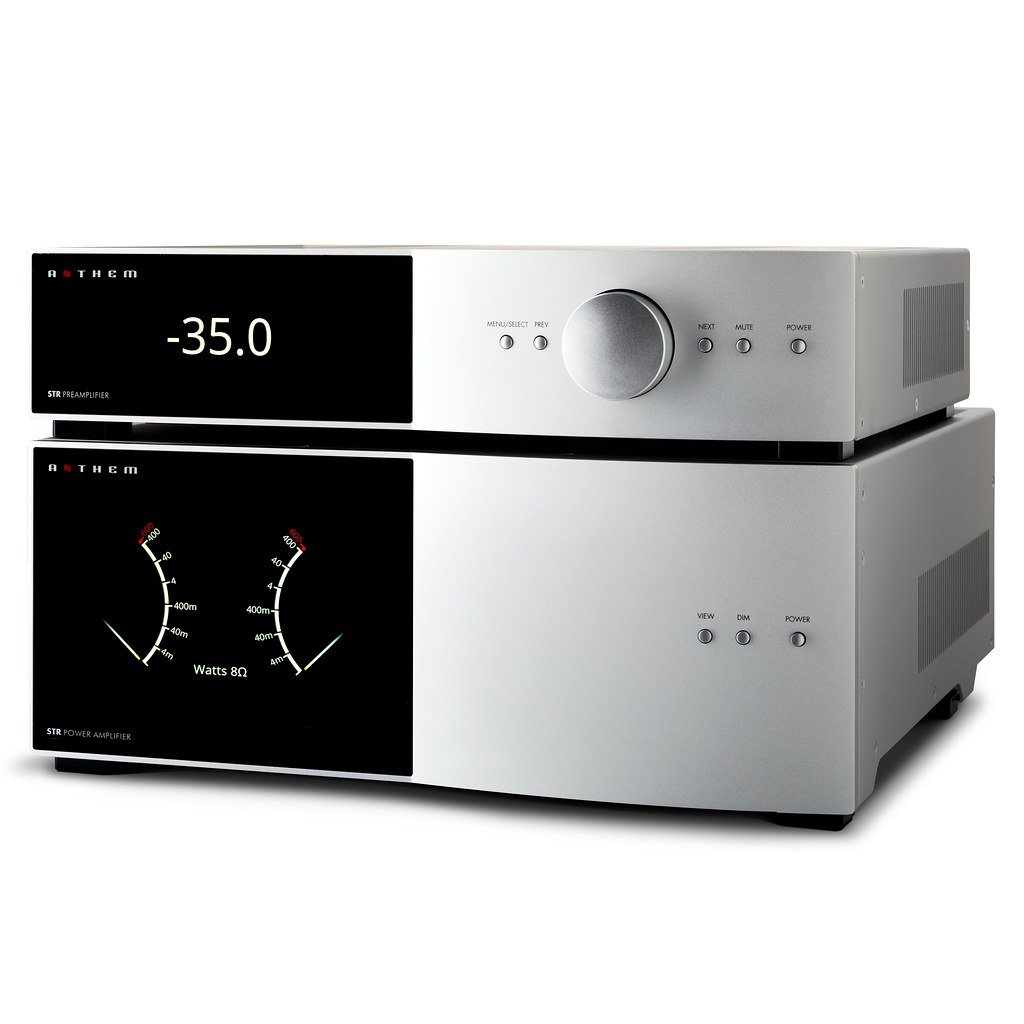

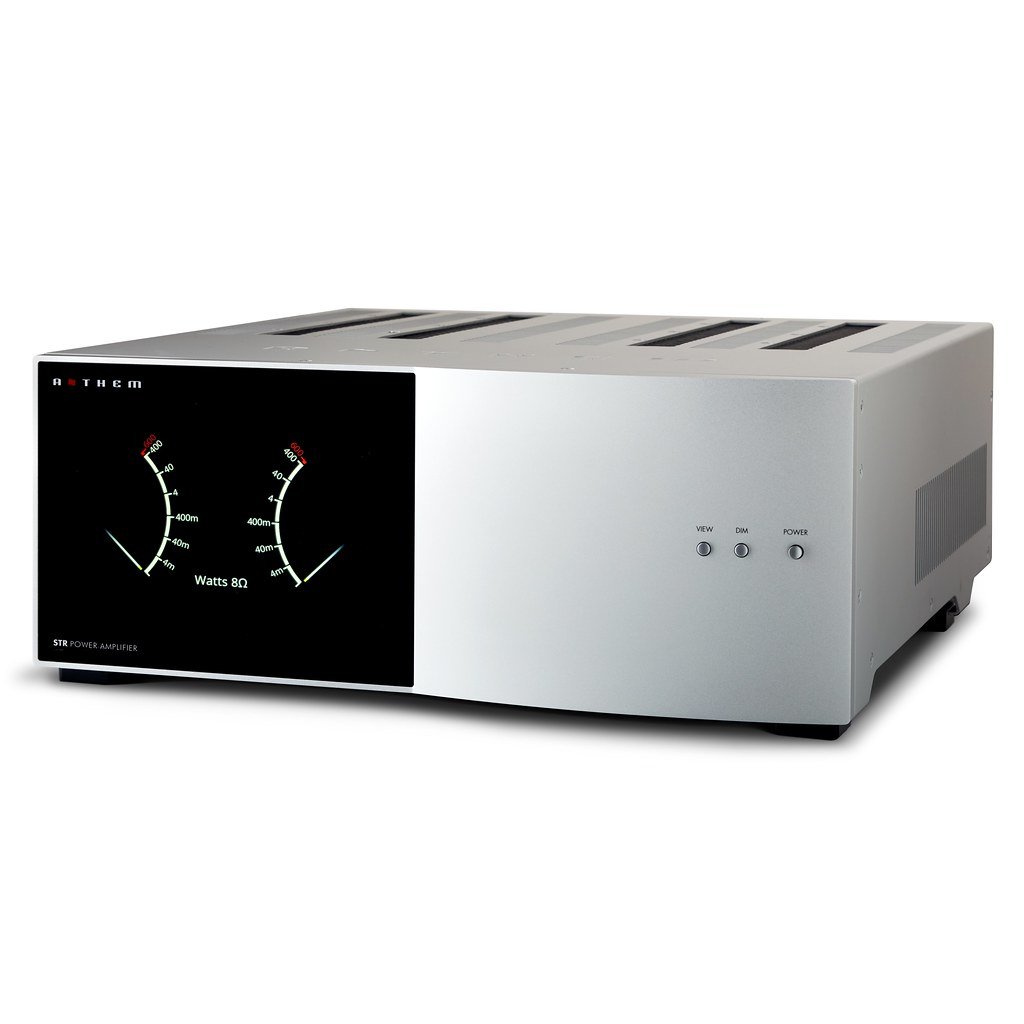

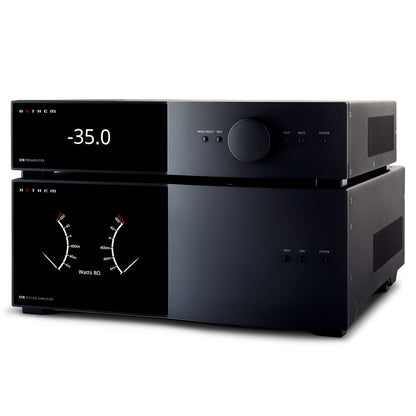

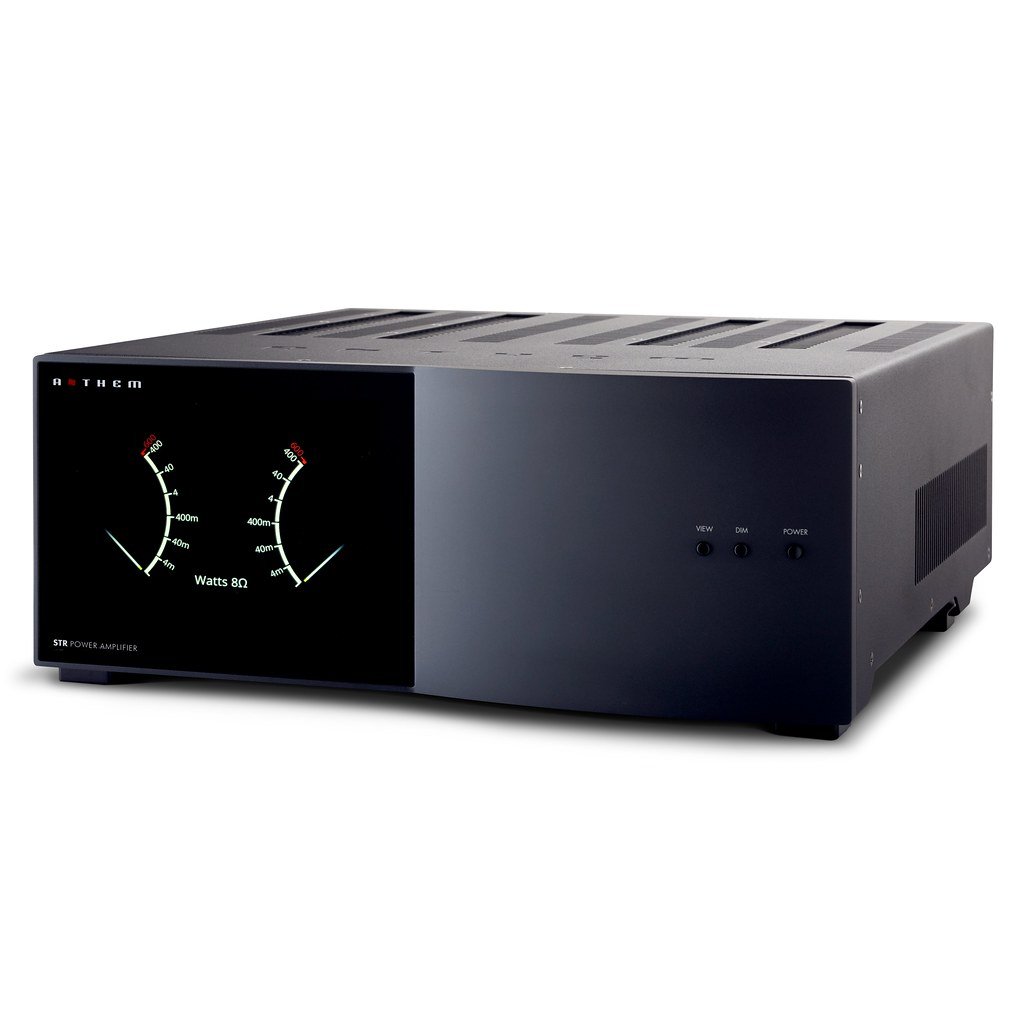

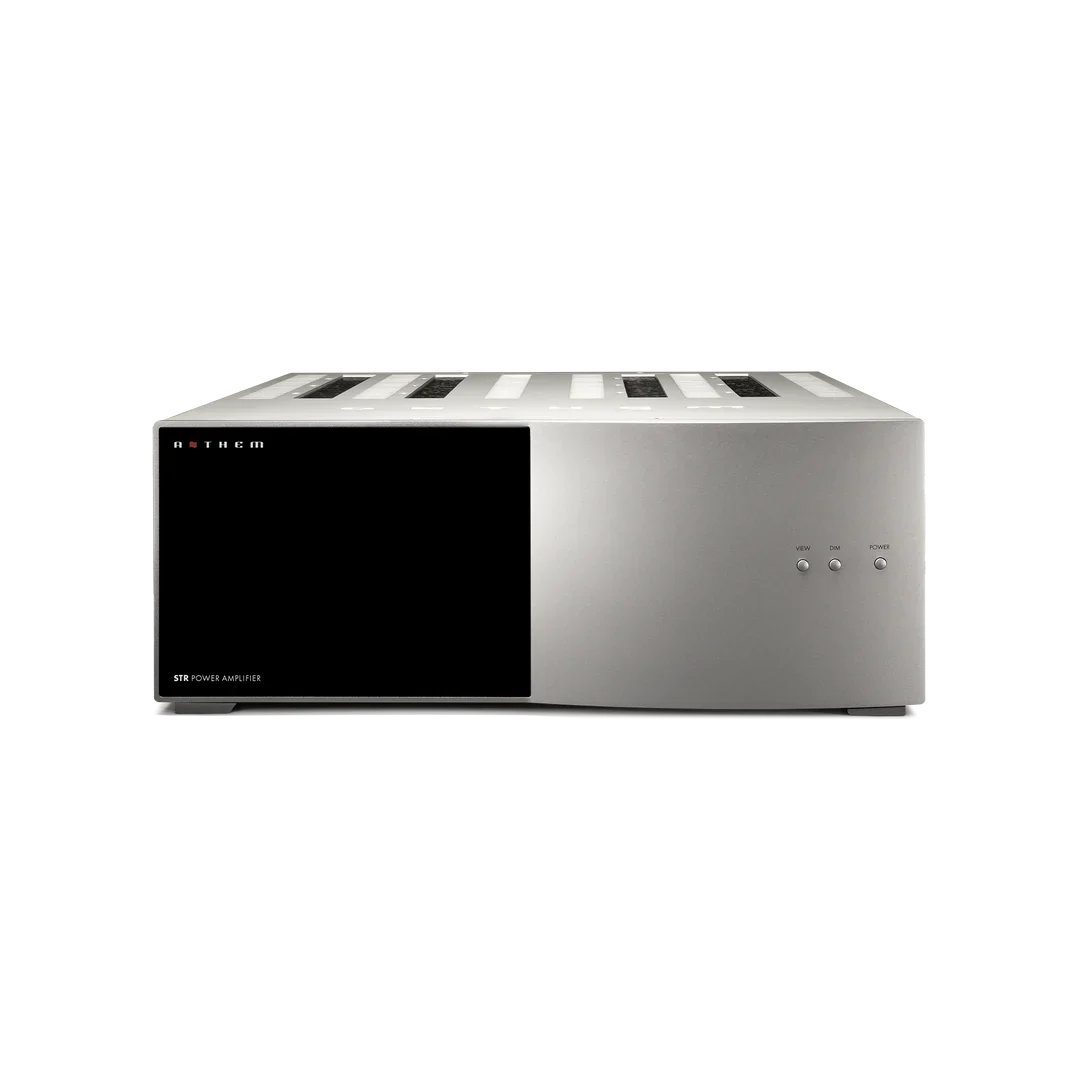

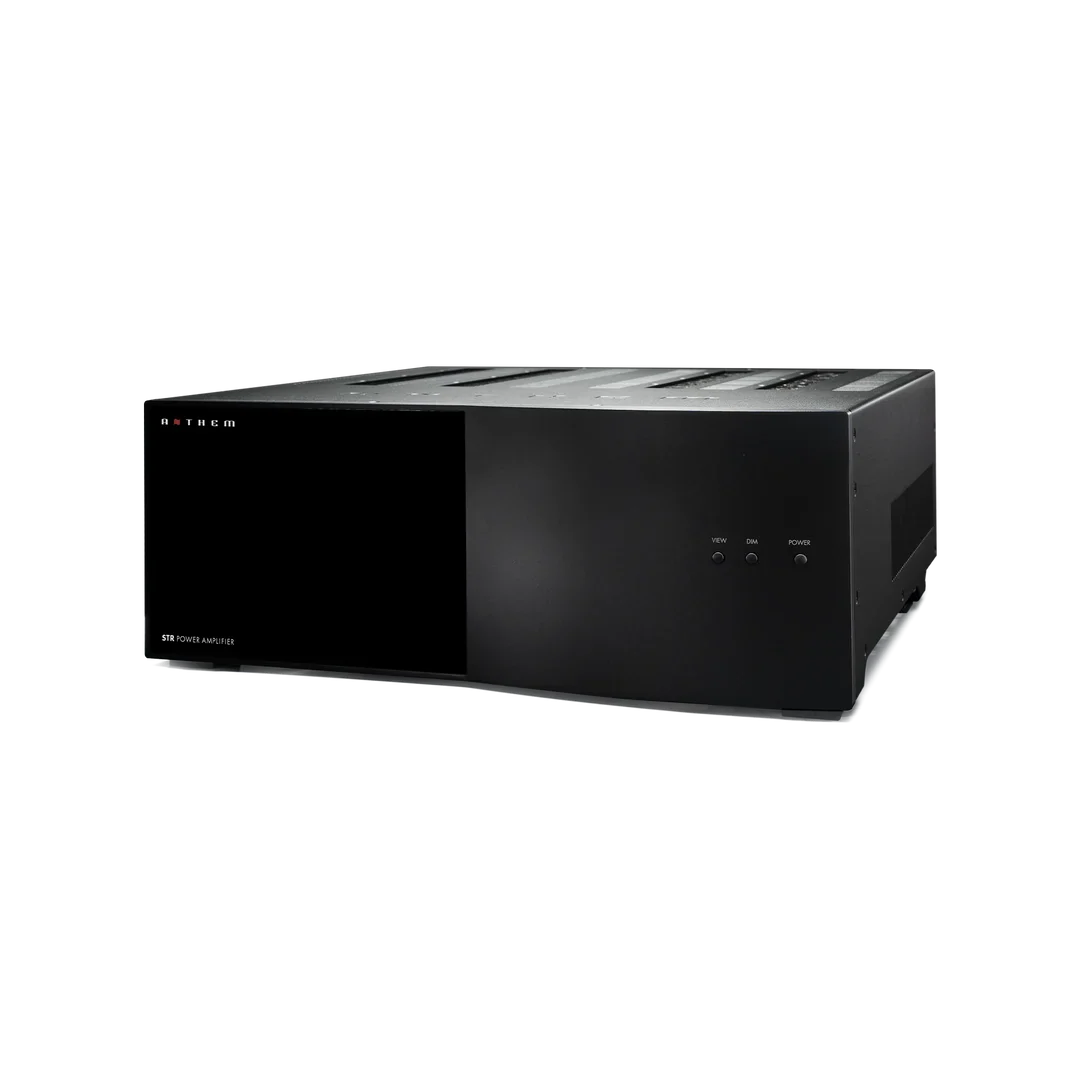

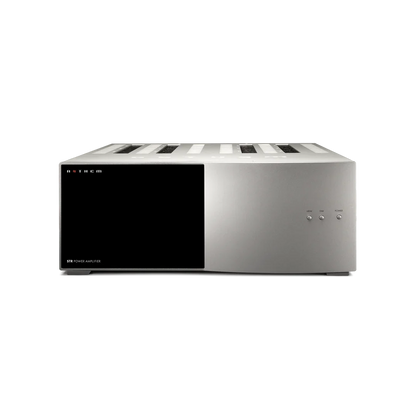

7-Inch Front Panel Graphic Display: Displays real-time status, setup navigation, and active digital power meters matching the aesthetic of the Anthem STR Preamplifier.
-
Advanced Load Monitoring (ALM™): Microprocessor-based protection actively monitors thermal and electrical parameters without sound-degrading rail fuses in the signal path.
-
Sequence-Controlled Soft Turn-On: Prevents power line transients and electrical in-rush currents during start-up, eliminating accidental circuit breaker tripping.
Technical Specifications
-
Amplifier Topology: 2-Channel Dual-Mono Class AB Power Amplifier
-
Continuous Power Output (8 Ohms): 400 Watts RMS per channel (20 Hz - 20 kHz, both channels driven)
-
Continuous Power Output (4 Ohms): 600 Watts RMS per channel (20 Hz - 20 kHz, both channels driven)
-
Continuous Power Output (2 Ohms): 800 Watts RMS per channel (20 Hz - 20 kHz, both channels driven)
-
Total Harmonic Distortion (THD+N): 0.004% @ 100W (1 kHz); 0.015% @ 100W (20 kHz)
-
Signal-to-Noise Ratio (SNR): 121 dB (A-weighted, ref. 400W)
-
Frequency Response: 20 Hz - 20 kHz (+/- 0.1 dB)
-
Power Bandwidth: 90 kHz (-3 dB @ 400W into 8 Ohms)
-
Slew Rate: 30 V/µs
-
Damping Factor: 360 (20 Hz to 1 kHz, ref. 8 Ohms)
-

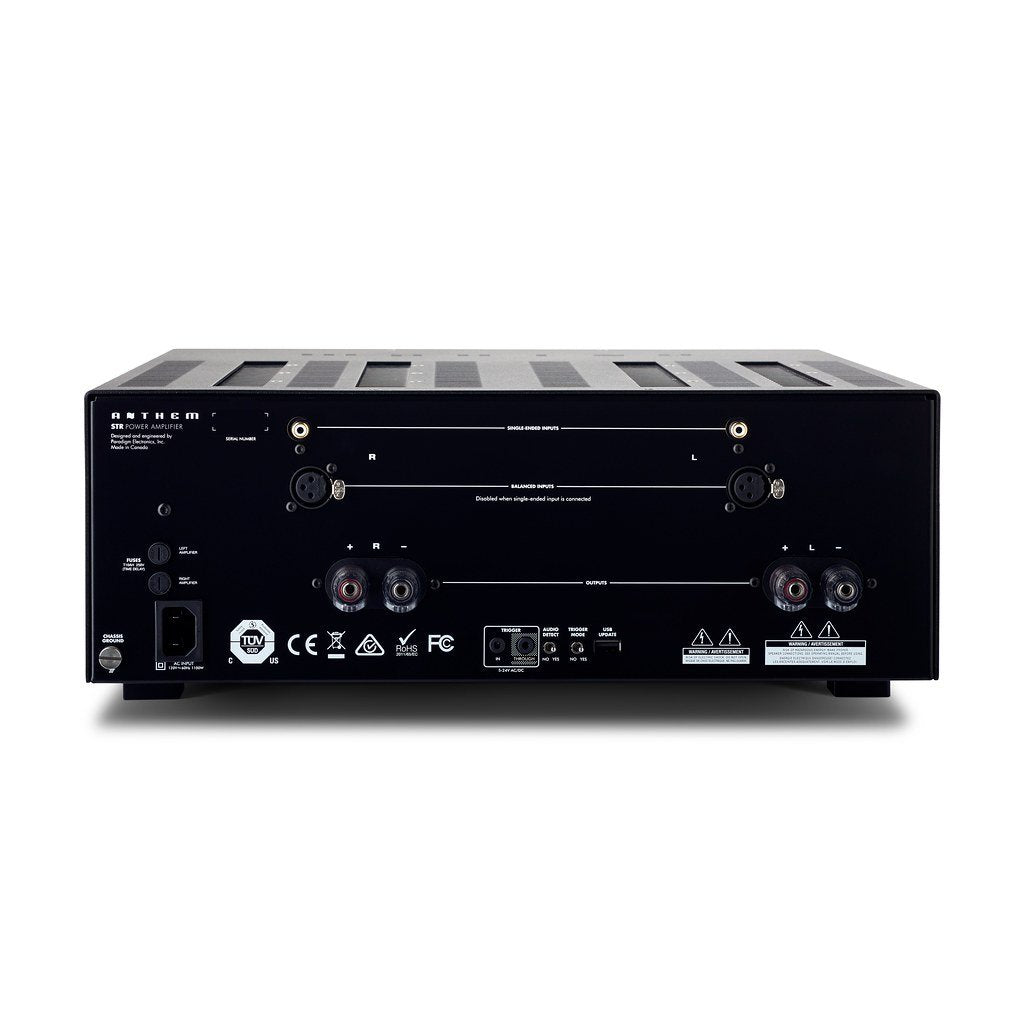

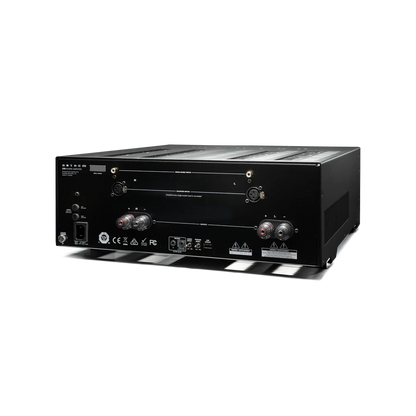

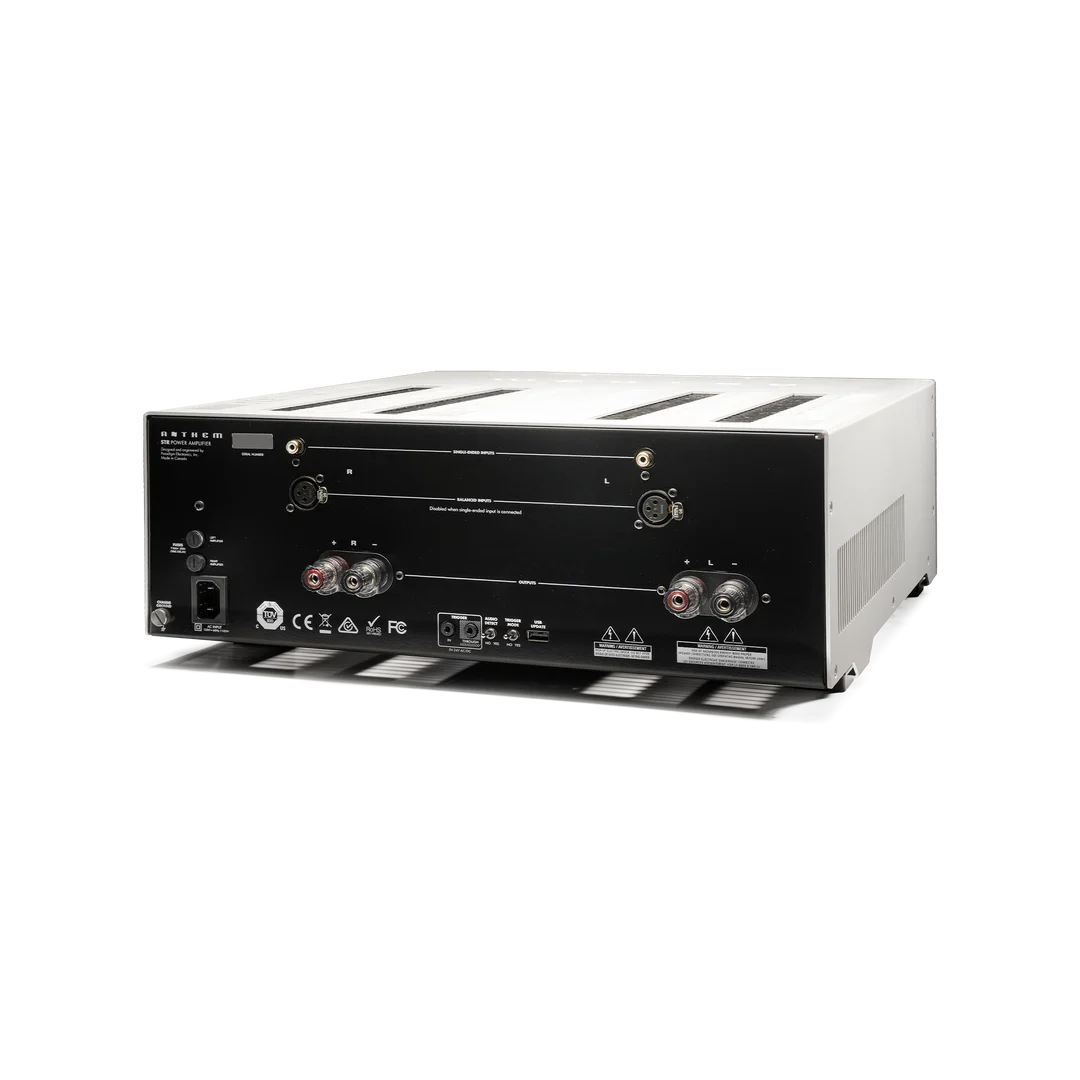

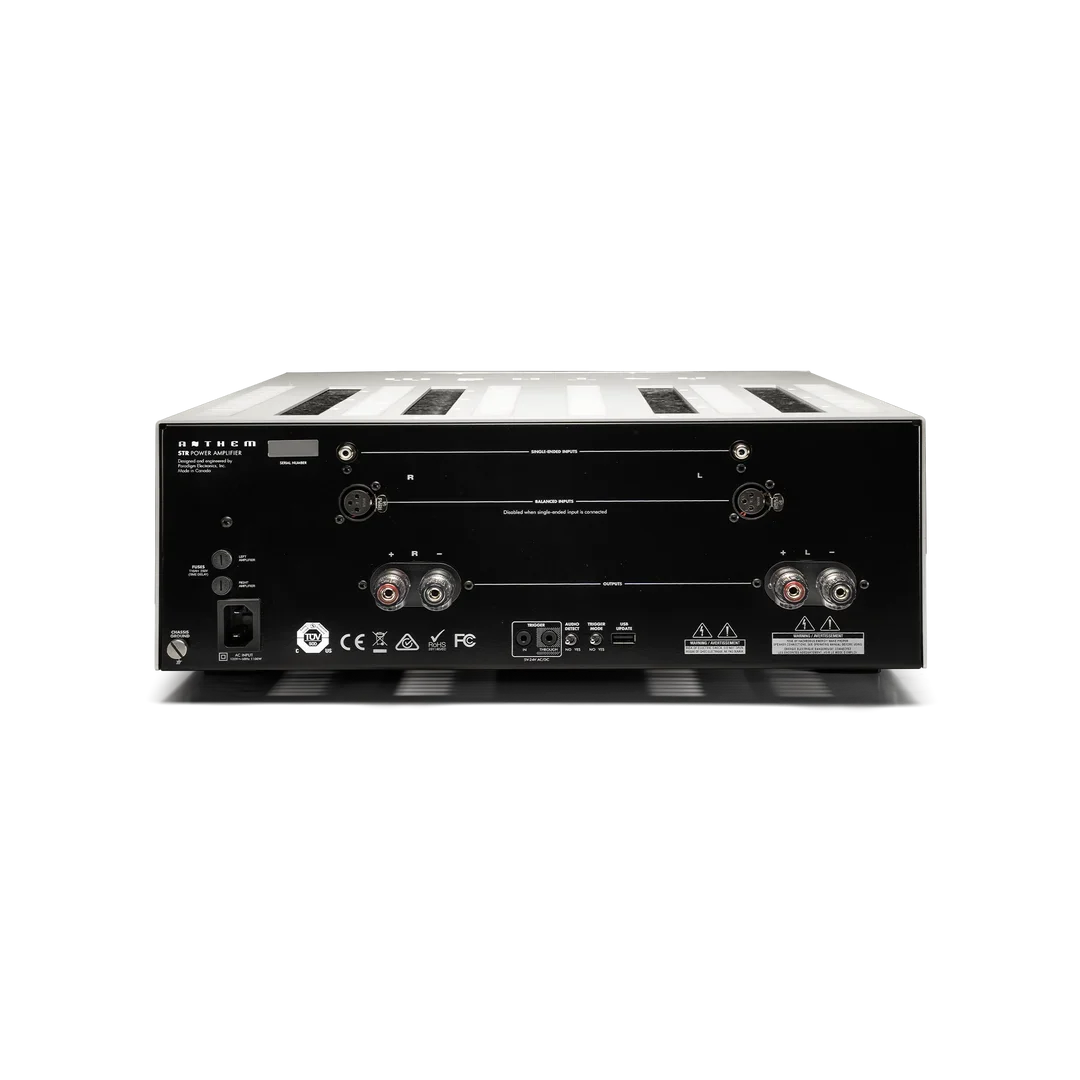

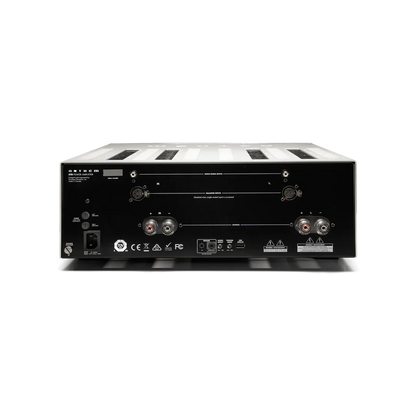

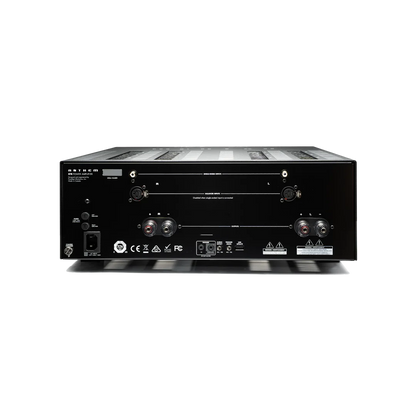

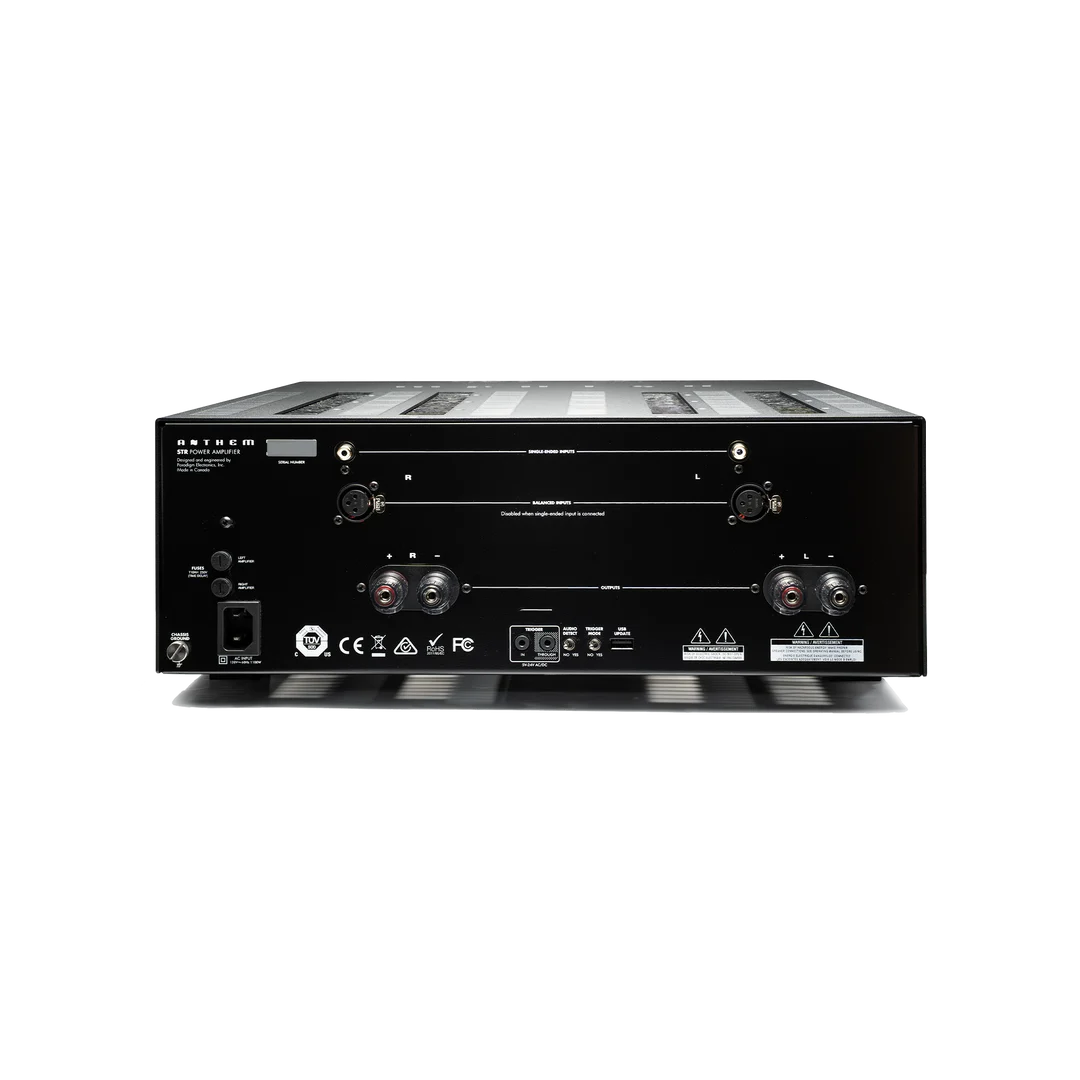

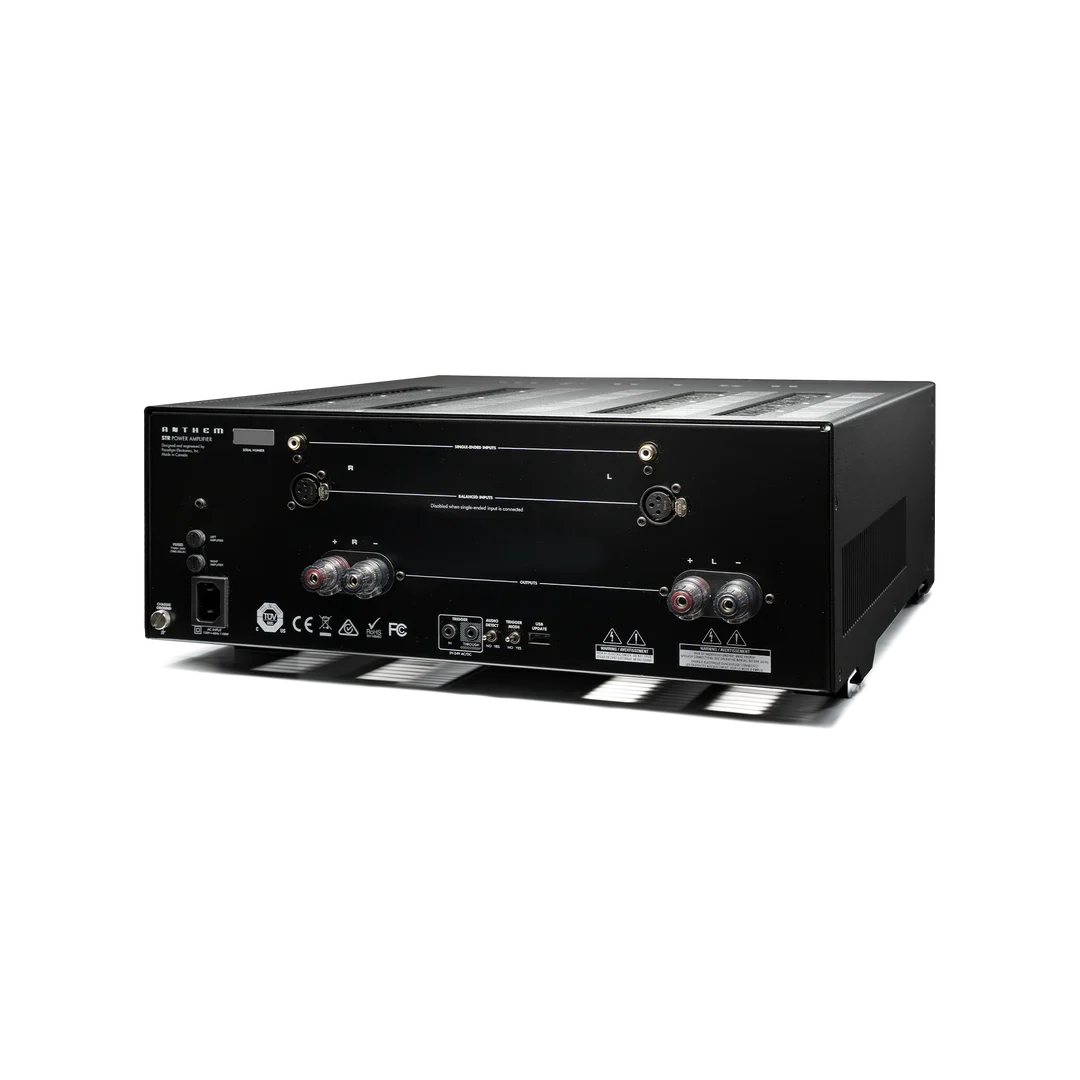

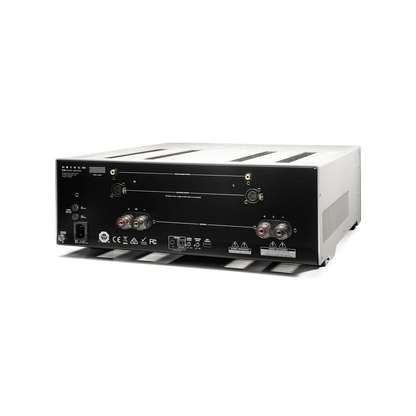

Analogue Inputs: 1 x Balanced XLR Stereo Pair, 1 x Single-Ended RCA Stereo Pair
-
Speaker Outputs: Custom Heavy-Duty Audiophile Binding Posts
-
Control & Power Modes: 12V Trigger In/Out (3.5 mm), Auto-Sensing Signal Power-On, Ethernet / IP
-
Dimensions (H x W x D): 17.2 cm x 43.2 cm x 47.0 cm
-
Net Weight: 27.2 kg (60.0 lbs)
Consult with the High-End Audio Specialists at Trimira Audio
Experience the ultimate in modern Canadian two-channel amplification. Contact the high-end audio specialists at Trimira Audio in Brisbane to discuss preamplifier matching, system topology, or to schedule a private audition of the Anthem STR Power Amplifier.
