Monumental 1,000-Watt Output & Advanced 1U Thermal Design | Available at Trimira Audio

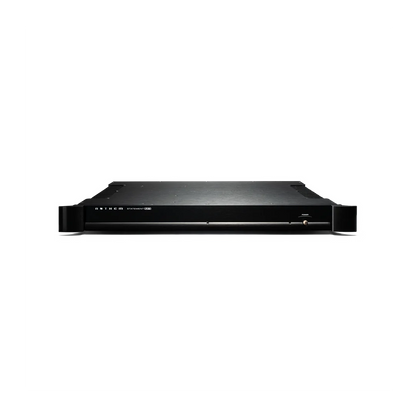

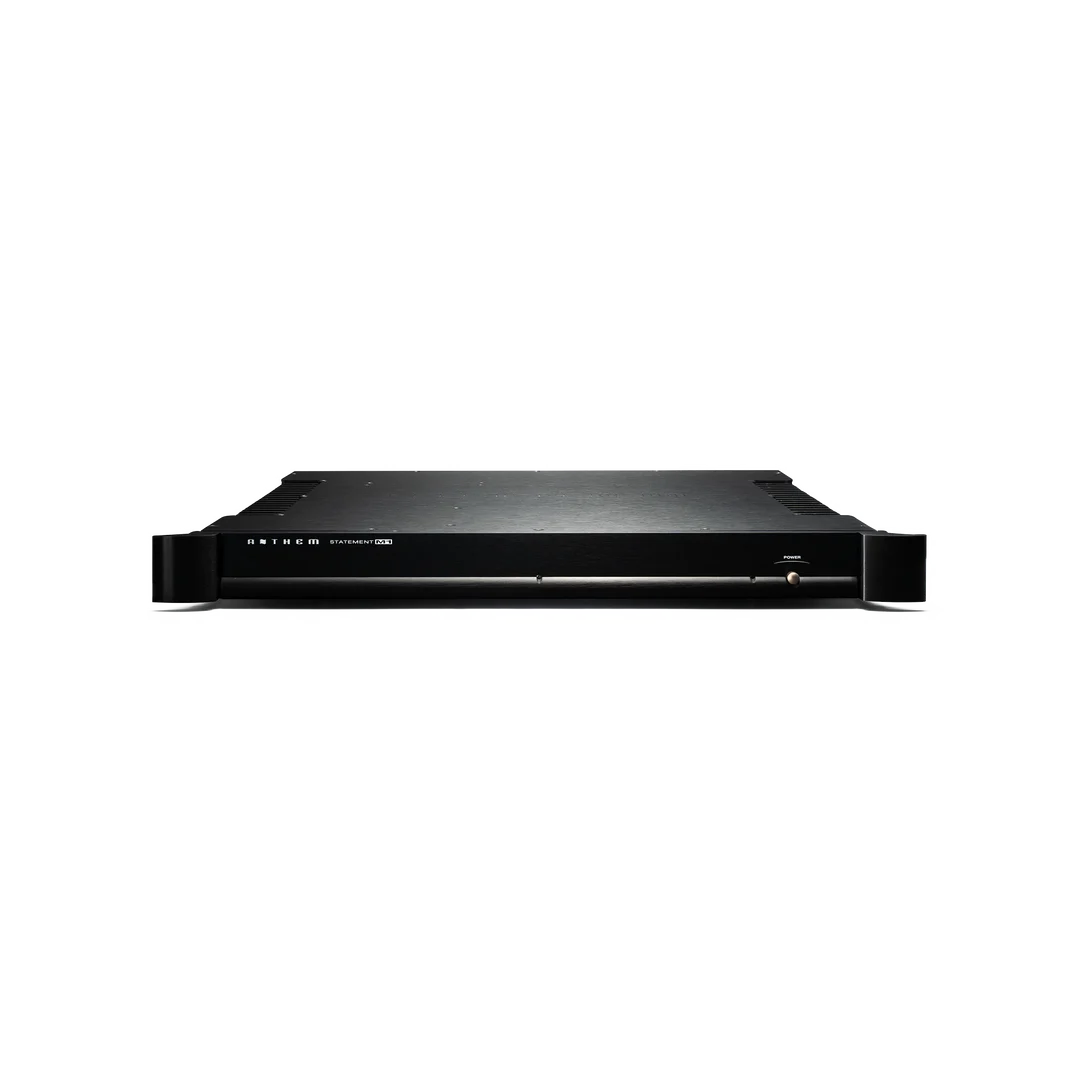

Designed and engineered in Canada, the Anthem Statement M1 Monoblock Power Amplifier represents the absolute pinnacle of Anthem’s power amplification technology. Built into a remarkably slim 1U rack-mount chassis ($5.7\text{ cm}$ height), the Statement M1 delivers a staggering 1,000 Watts continuous RMS into 8 Ohms and 2,000 Watts continuous RMS into 4 Ohms (scaling up to 2,400 Watts into 3 Ohms) with less than 0.1% total harmonic distortion across the full 20 Hz to 20 kHz audio spectrum.

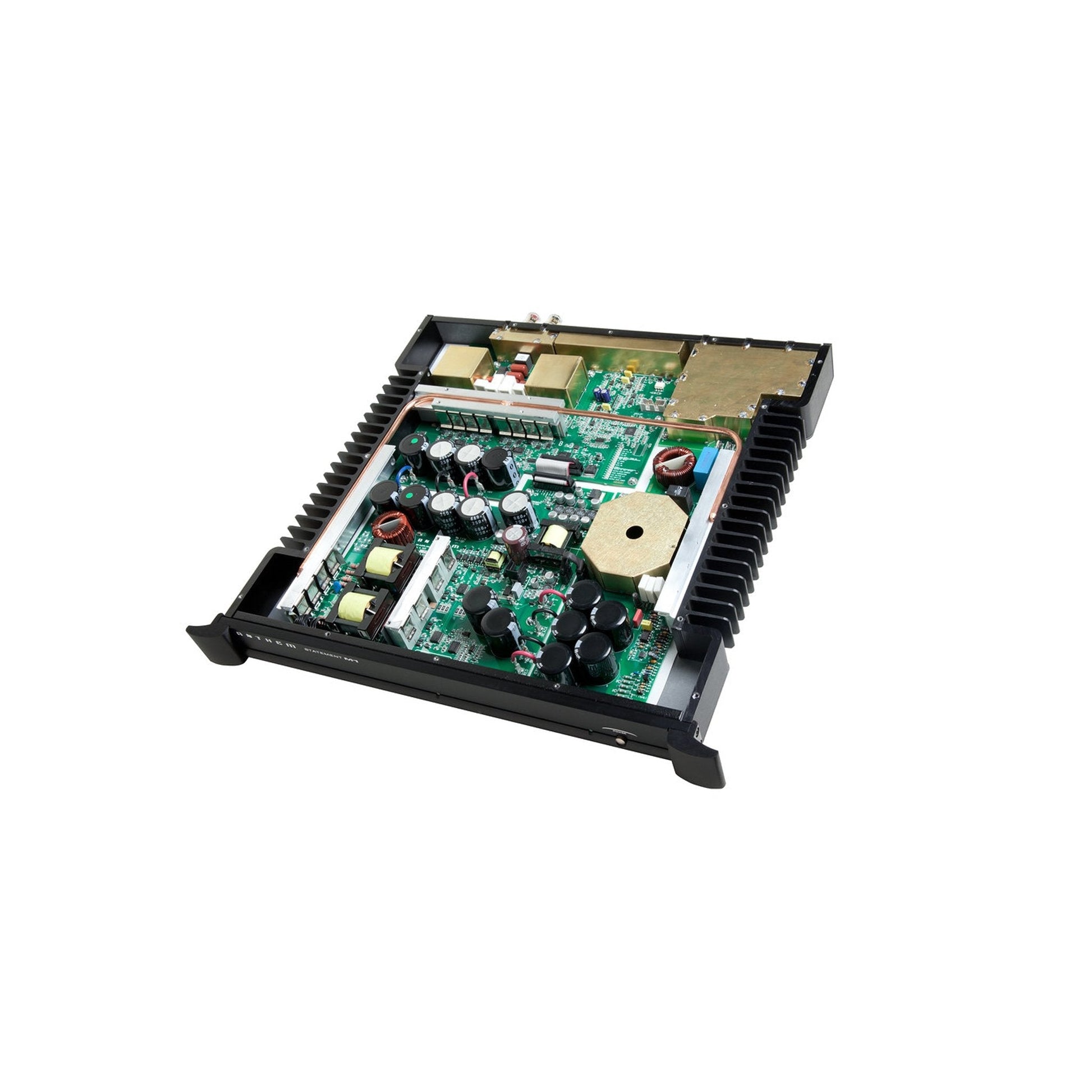

The M1 is a purely analogue Class D design that completely eliminates A/D and D/A converters from the signal path. Its proprietary control system continuously modulates output pulse width in direct relation to the analogue input signal, preserving raw dynamic range without clipping or dynamic compression. Powered by eight 65-amp MOSFETs per channel capable of driving 260-amp peak currents, the M1 effortlessly controls complex, low-impedance passive loudspeakers. To dissipate heat silently in its compact 1U enclosure, Anthem utilizes an advanced vacuum-sealed copper heat-pipe liquid cooling system, completely eliminating internal cooling fans.
Key Features & Technological Innovations
-
1,000W / 2,000W Continuous Output: Delivers massive power output (1,000W @ 8 Ohms, 2,000W @ 4 Ohms, 2,400W @ 3 Ohms) with zero dynamic compression or soft clipping.
-
Pure Analogue Class D Topology: Operates with continuous pulse-width modulation without A/D or D/A conversion, preserving pristine signal purity.
-
High-Current 260A Peak Capability: Utilizes 8 discrete 65-amp MOSFET output devices per channel to supply continuous current into demanding low-impedance speakers.
-
Vacuum-Sealed Heat-Pipe Thermal Cooling: Advanced liquid-assisted thermal management moves internal heat rapidly to exterior heat sinks without fan noise.
-

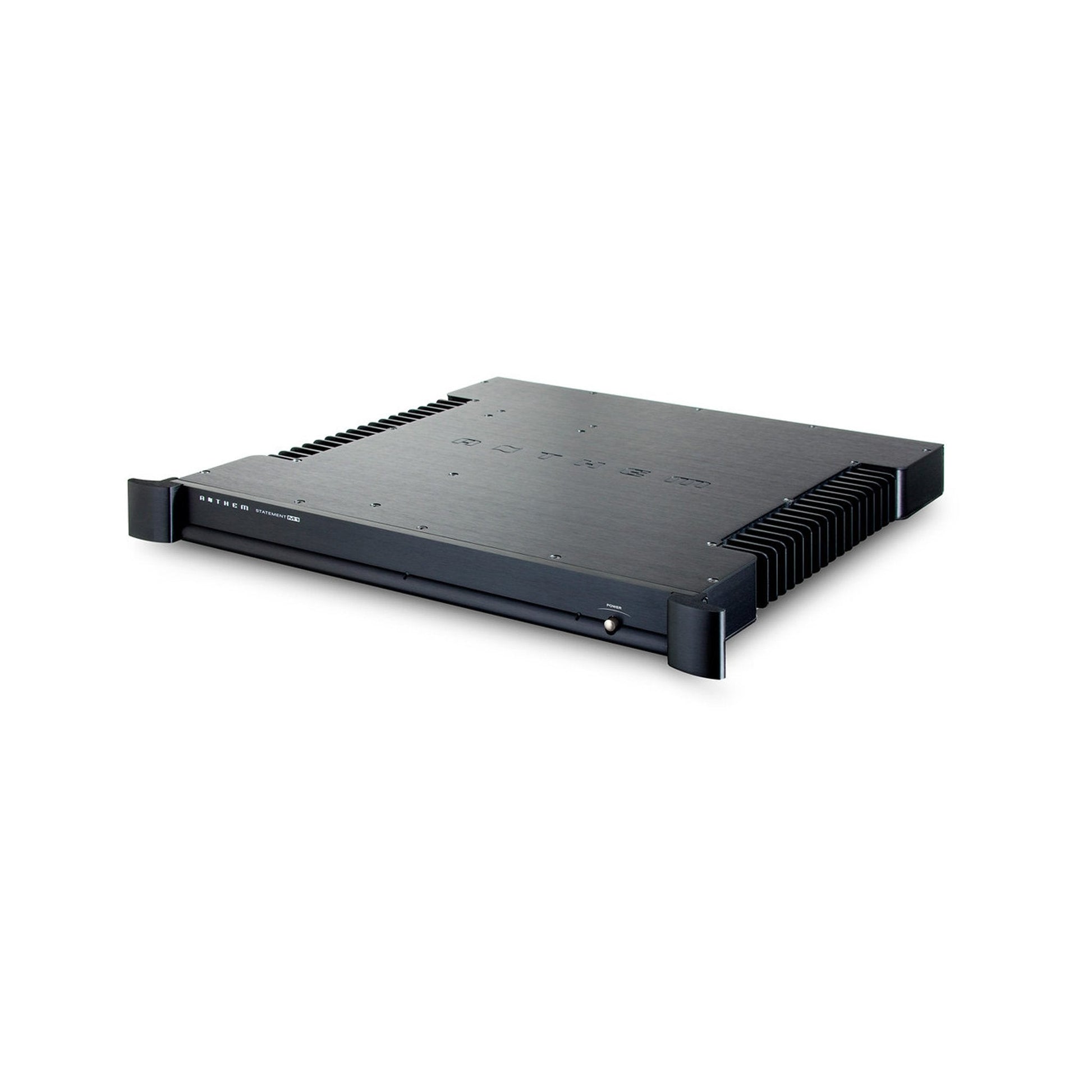

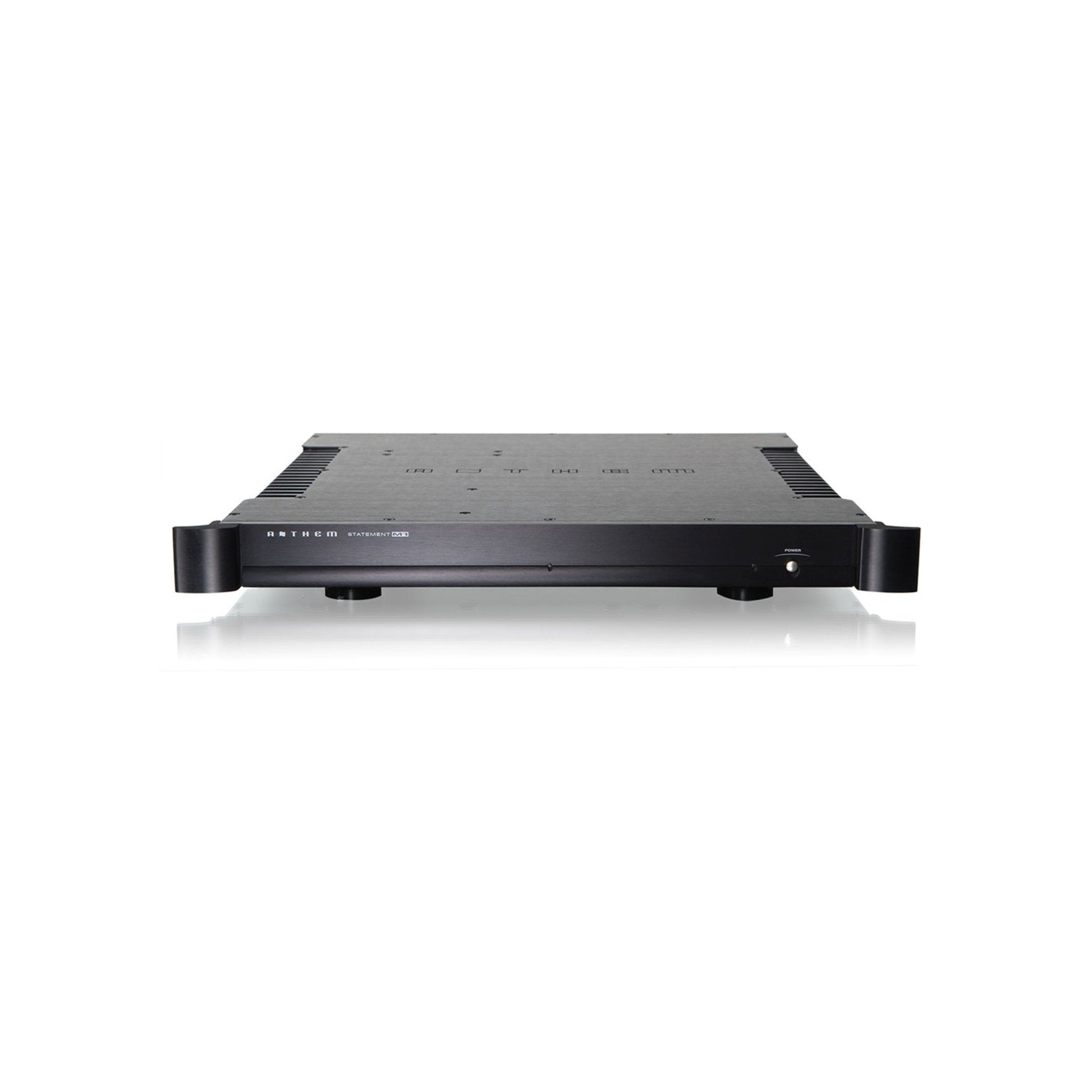

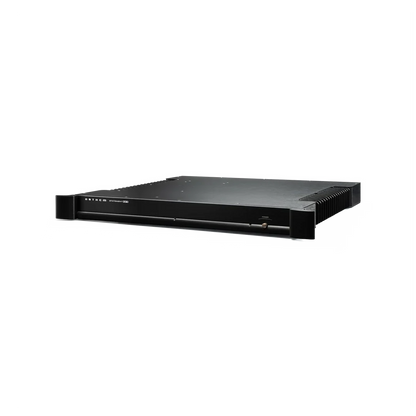

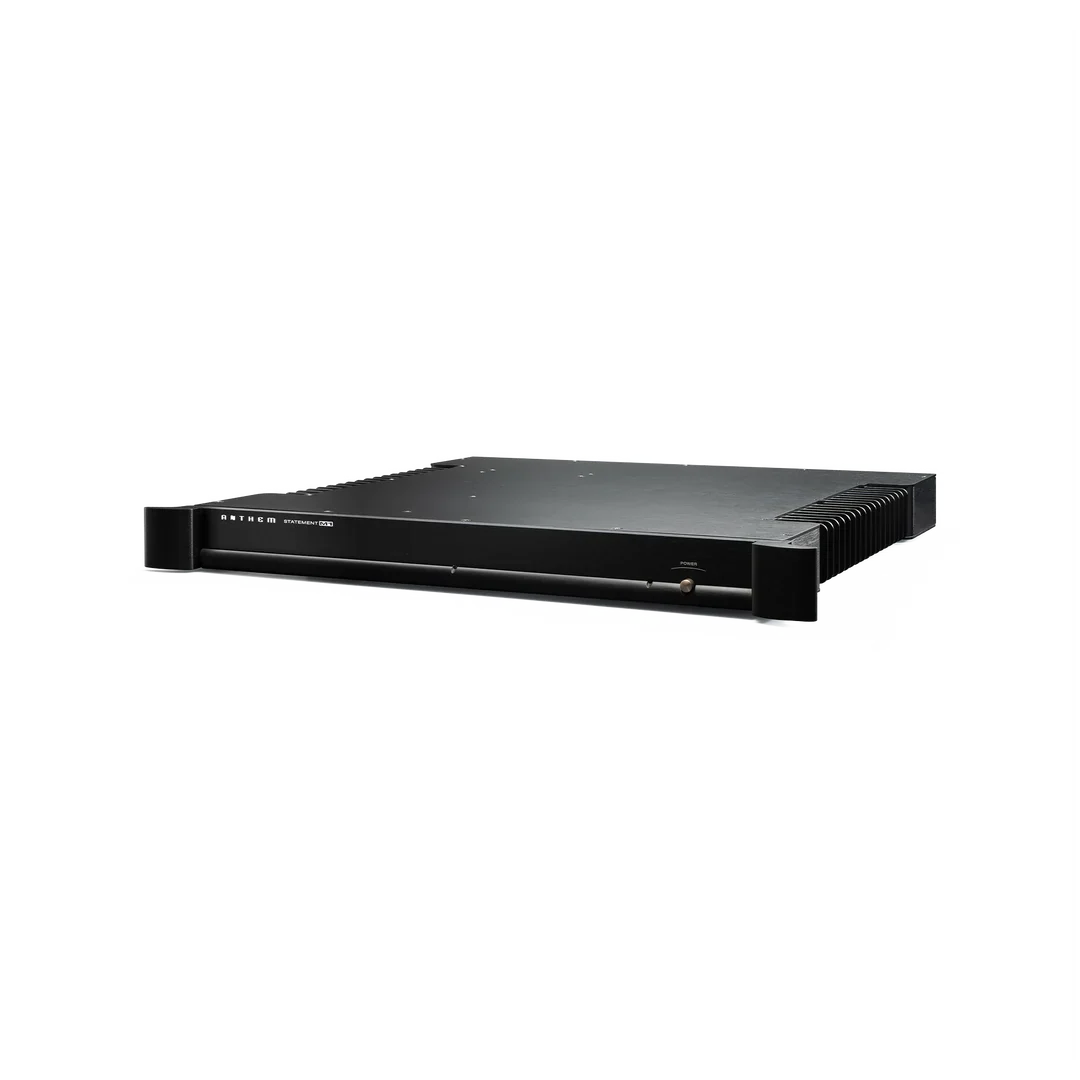

Compact 1U Rack Chassis: Delivers reference-grade power in a slim single rack-space enclosure (feet included for standalone shelf placement).
-
Relay-Free Signal Path & Bridged Output: Eliminates signal-degrading output relays, maintaining high damping factor (800 to 1400) and instant transient power delivery.
-

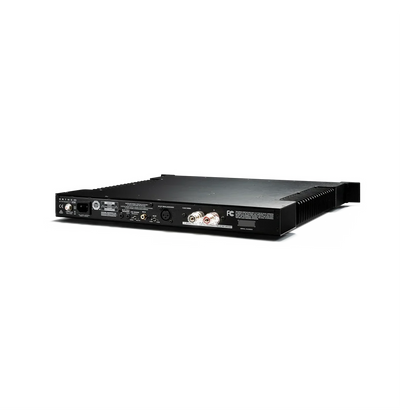

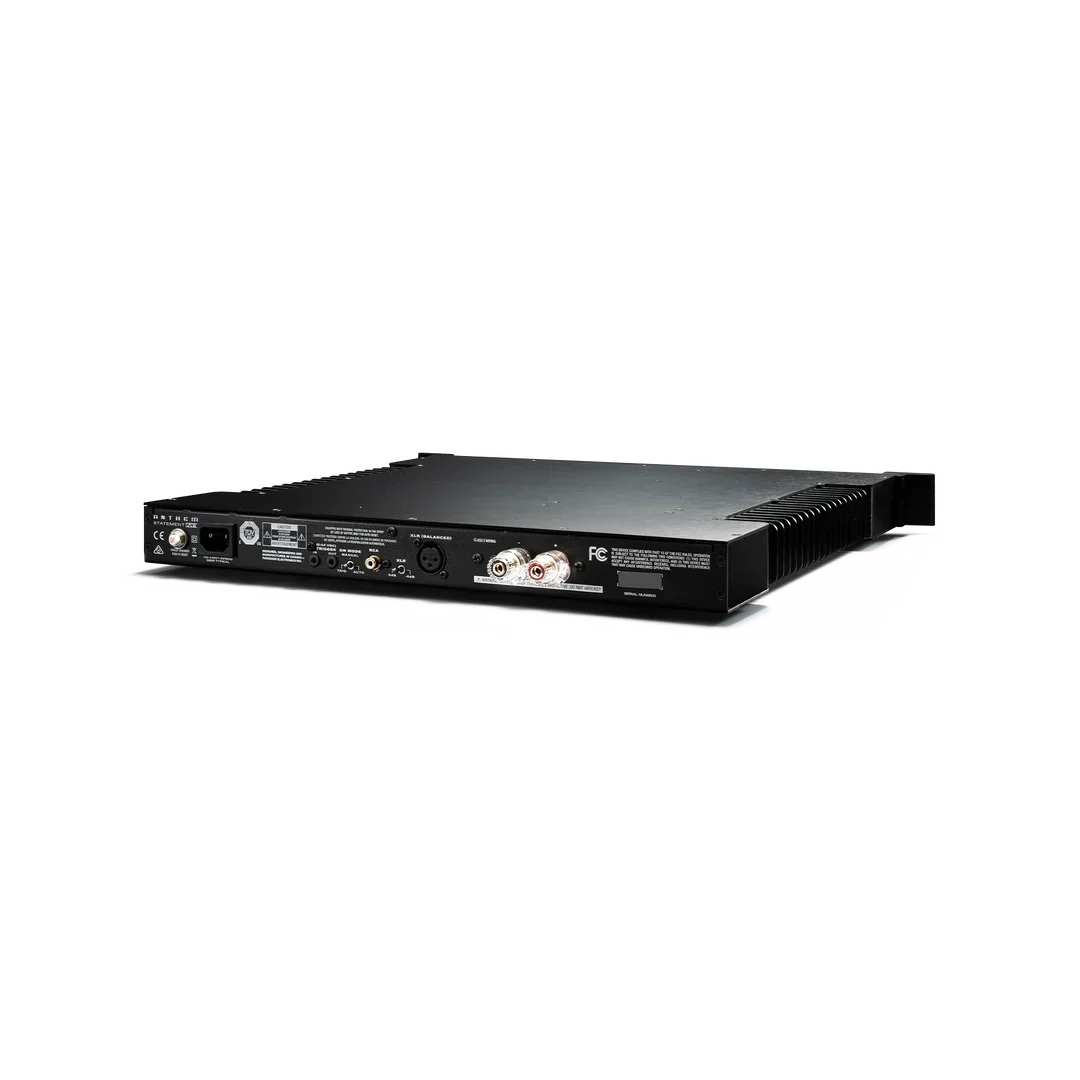

Comprehensive Control Connections: Features single-ended RCA, balanced XLR inputs, auto-sensing signal turn-on, and 12V DC trigger loop-through.
Technical Specifications
-
Amplifier Topology: Single-Channel Pure Analogue Class D Monoblock
-
Continuous Power Output (8 Ohms): 1,000 Watts RMS (20 Hz - 20 kHz, <0.1% THD+N)
-
Continuous Power Output (4 Ohms): 2,000 Watts RMS (20 Hz - 20 kHz, <0.1% THD+N)
-
Continuous Power Output (3 Ohms): 2,400 Watts RMS (20 Hz - 20 kHz, <0.1% THD+N)
-
Signal-to-Noise Ratio (SNR): 113 dB (IEC-A filter, ref. 1000W)
-
Frequency Response: 20 Hz – 20 kHz (+/-0.1 dB into open, 8 Ohm, or 4 Ohm loads)
-
Power Bandwidth: 5 Hz – 45 kHz (1,000W into 8 Ohms)
-
Total Harmonic Distortion (THD+N at 1 kHz): 0.01% @ 10W; 0.03% @ 100W; 0.06% @ 1,000W
-
Intermodulation Distortion (IMD): 0.003% (19 kHz + 20 kHz, CCIF)
-
Damping Factor: 800 to 1400 (frequency dependent)
-
Voltage Gain: 29 dB
-

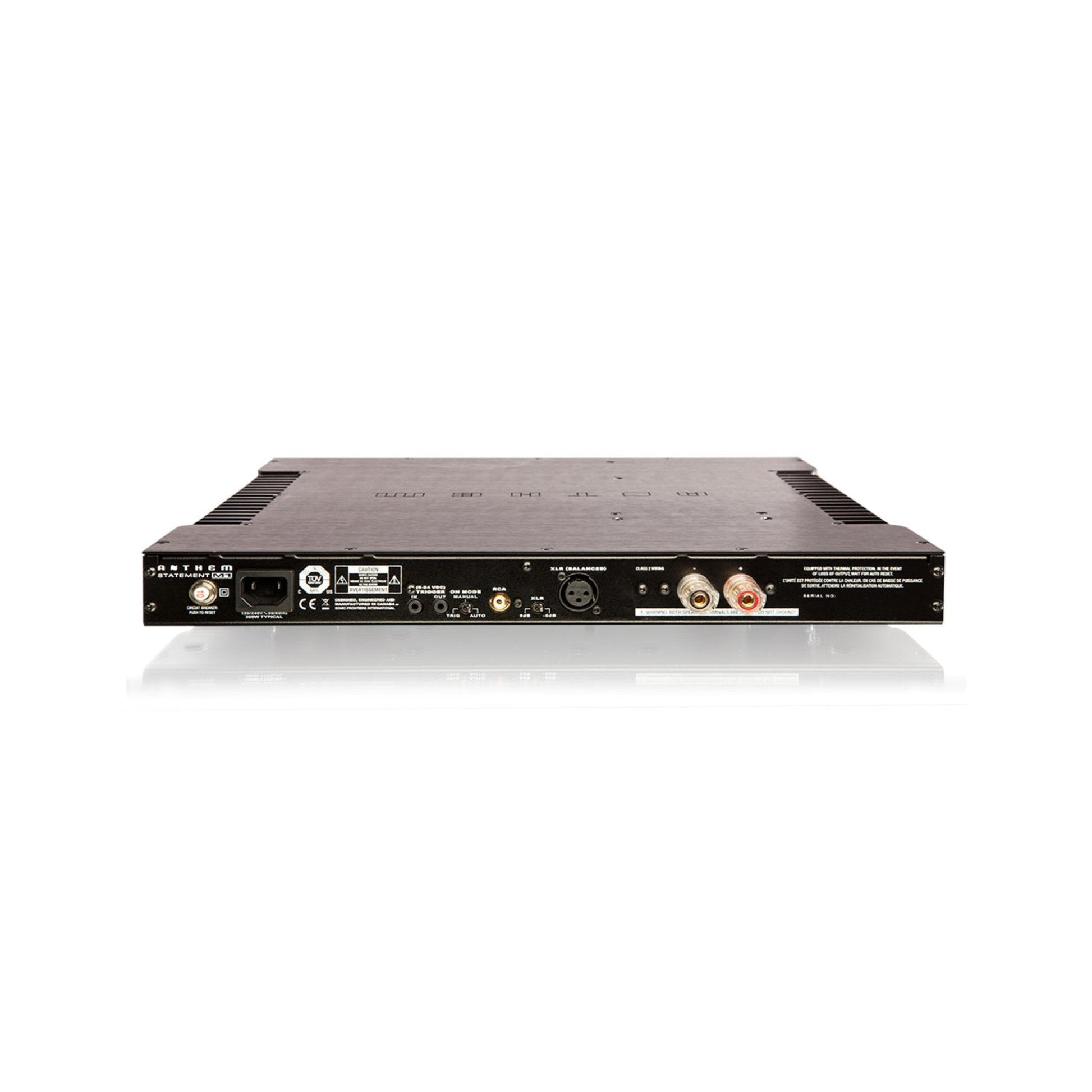

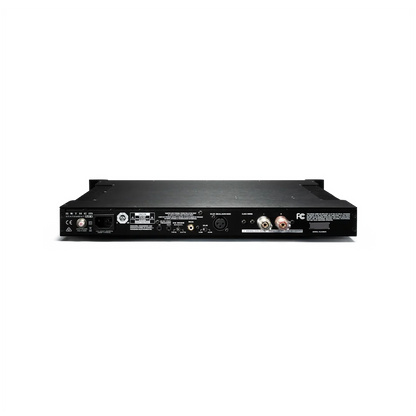

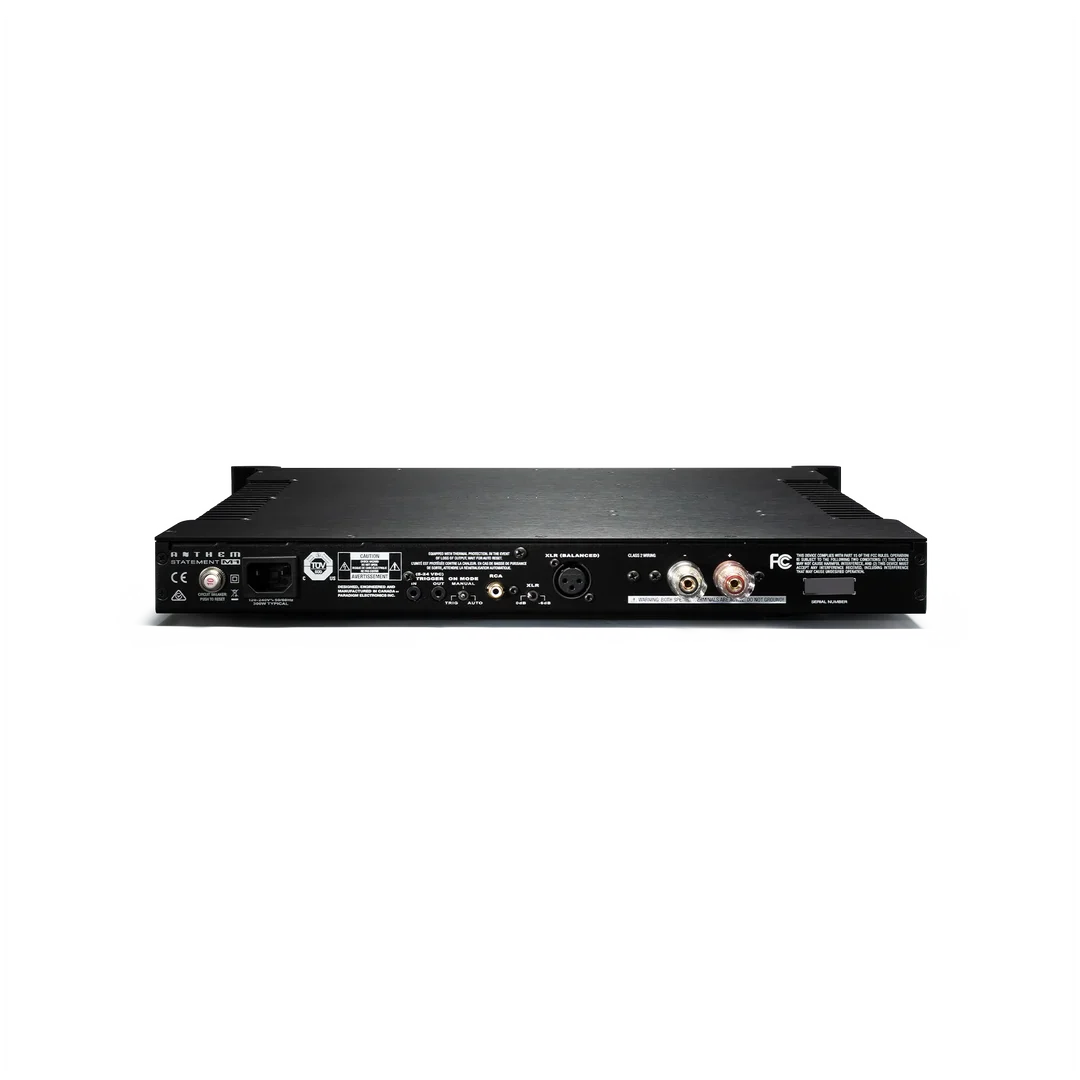

Analogue Inputs: 1 x Balanced XLR (20 kOhm), 1 x Single-Ended RCA (10 kOhm)
-
Speaker Outputs: 1 Pair Heavy-Duty 5-Way Binding Posts
-
Control Connections: 1 x 12V Trigger Input (3.5 mm), 1 x 12V Trigger Output (3.5 mm)
-
Dimensions (H x W x D): 5.7 cm (1U) x 49.0 cm x 47.6 cm
-
Net Weight: 9.0 kg (20.0 lbs)
Consult with the High-End Audio Specialists at Trimira Audio
Power your reference two-channel system or dedicated cinema channels with uncompromising Canadian power. Contact the two-channel and custom integration specialists at Trimira Audio in Brisbane to discuss Anthem processor matching, mains power requirements, or to schedule a private audition.
