High-Current Class AB Performance & 7.2-Channel Preamp Expansion | Available at Trimira Audio

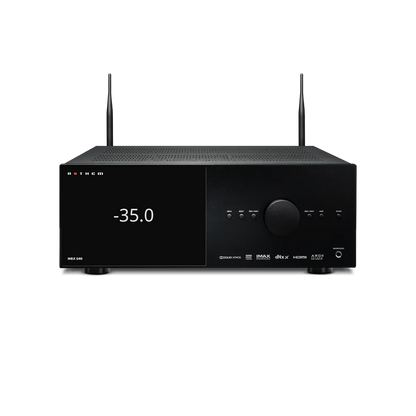

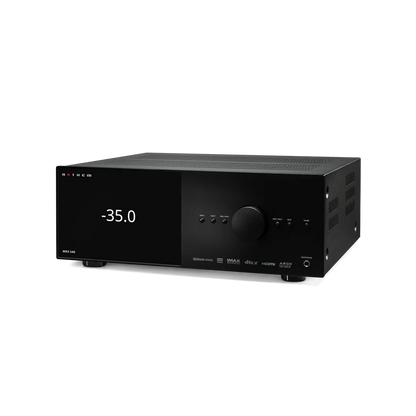

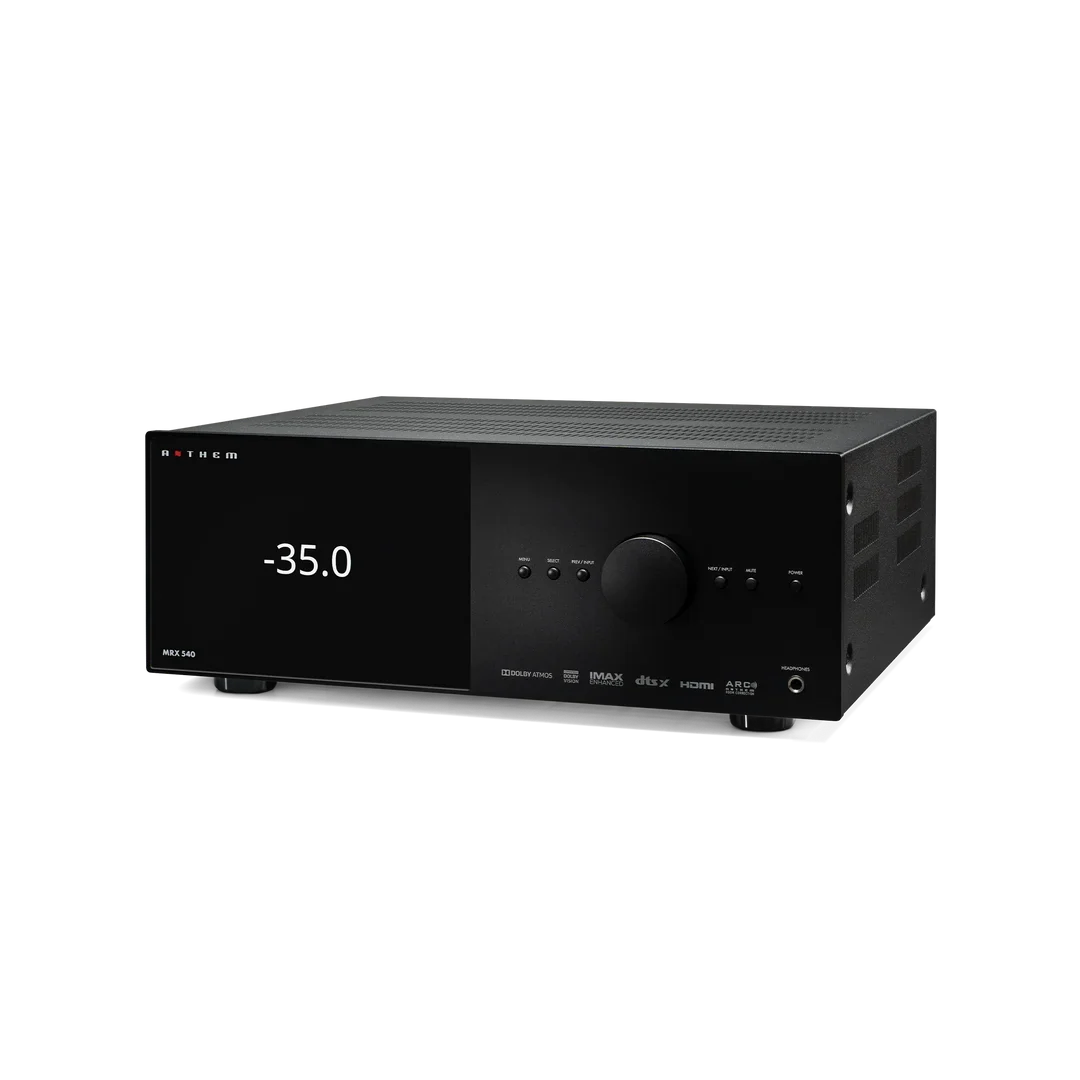

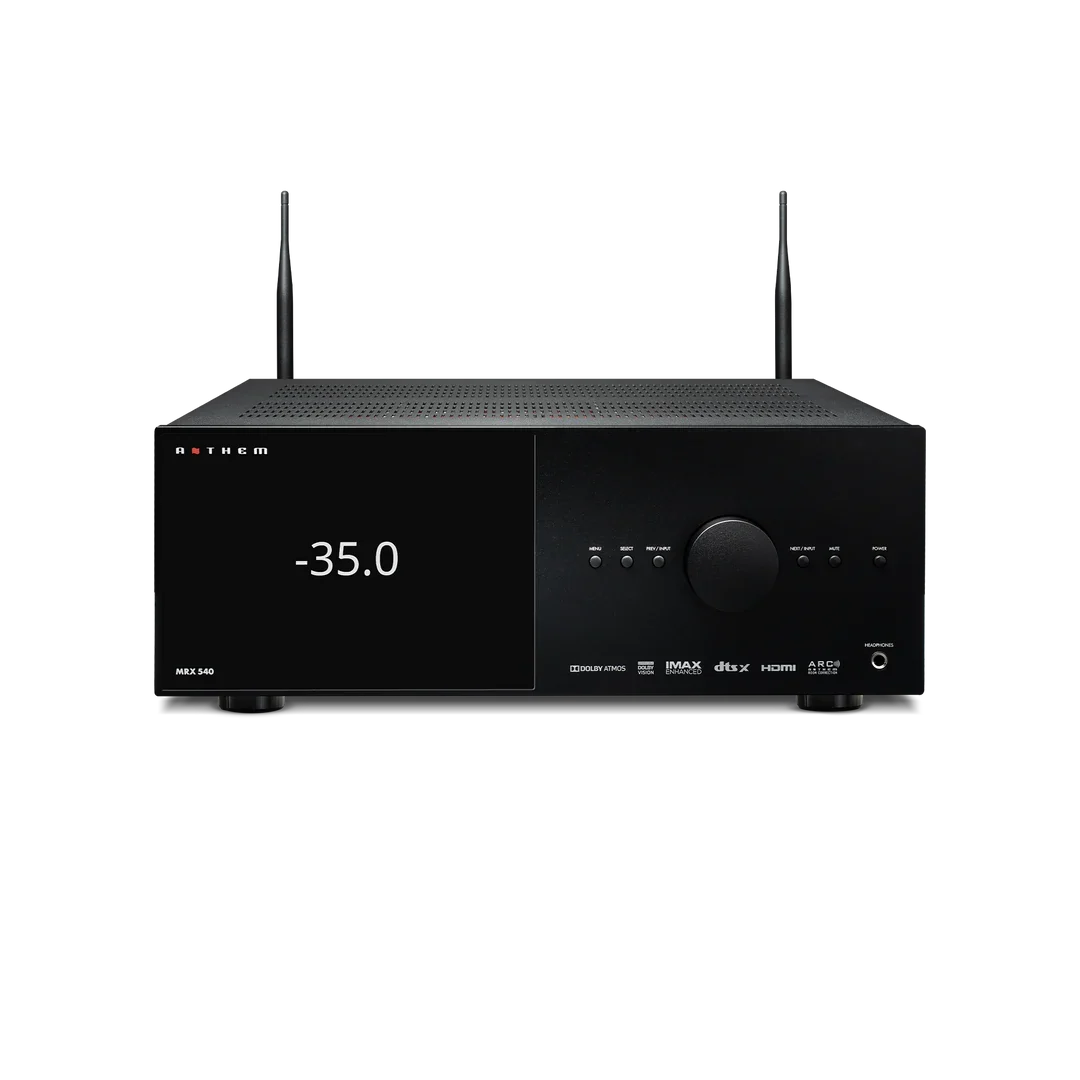

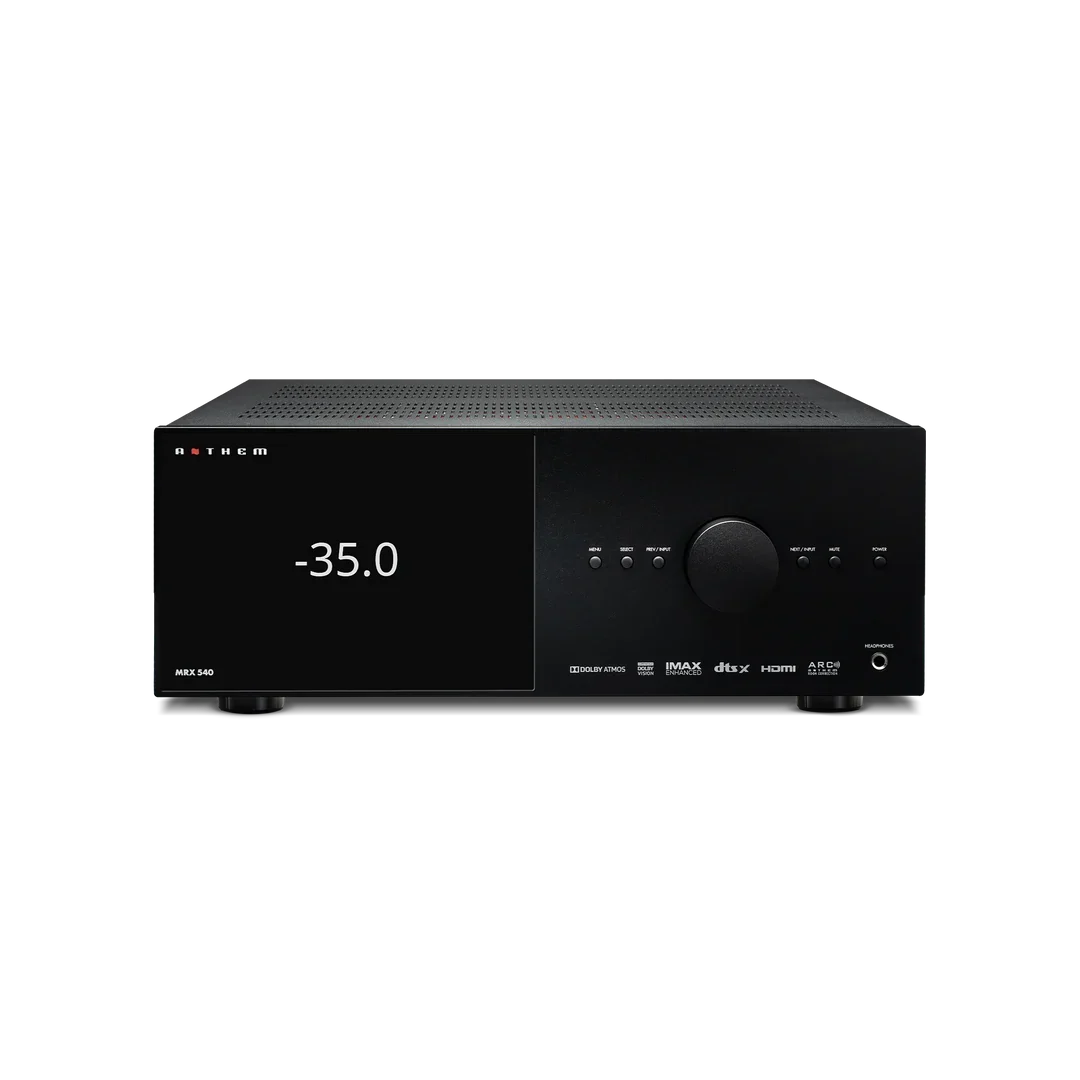

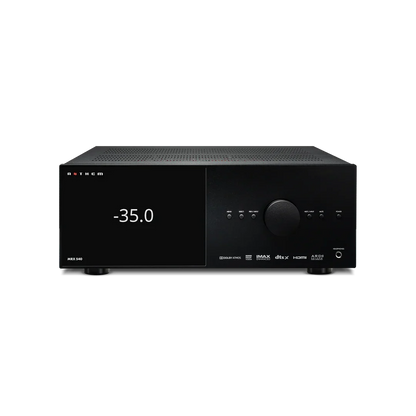

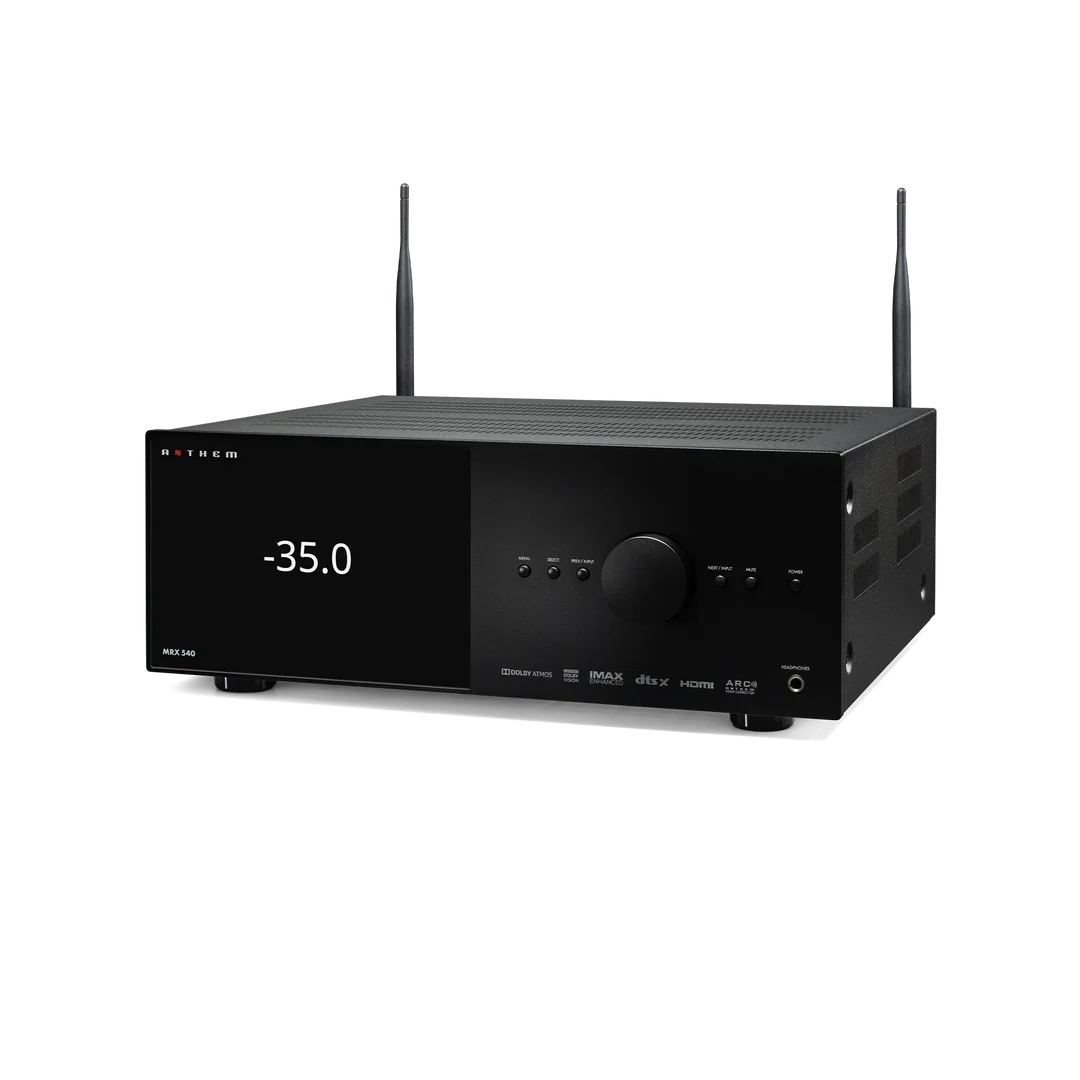

Designed and engineered in Canada, the Anthem MRX 540 8K AV Receiver brings reference-grade multi-channel performance to media rooms and dedicated home cinema installations. Combining 7.2 channels of discrete preamplifier processing with 5 channels of internal Class AB amplification, the MRX 540 8K powers classic 5.1 or 5.2 surround setups out of the box while offering expansion to a full 5.2.2 Dolby Atmos layout via an external 2-channel power amplifier.
The MRX 540 8K delivers robust continuous power, outputting 100 Watts per channel into 8 Ohms (or 130 Watts into 6 Ohms) with minimal distortion. Equipped with an upgraded HDMI 2.1 matrix video platform, it features 7 inputs and 2 outputs supporting 8K/60Hz, 4K/120Hz, eARC, Dolby Vision, and HDR10+. Integrated with Anthem's ARC™ Genesis room correction system (complete with a calibrated professional microphone), the receiver measures and corrects room boundary resonances to ensure tight, articulate bass and seamless soundstage integration.
Key Features & Technological Innovations
-
7.2 Preamp / 5 Amplified Channel Configuration: Features 5 internal Class AB amplifier channels backed by 7.2-channel RCA preouts, allowing easy expansion via external power amplification.
-
High-Current Class AB Amplification: Delivers 100W continuous output per channel into 8 Ohms across all five amplified channels for dynamic drive and low-frequency control.
-
ARC™ Genesis Room Correction: Includes Anthem's proprietary calibration software and precision microphone to optimize phase, frequency response, and dual-subwoofer timing.
-
HDMI 2.1 Video Platform: 7 HDMI inputs and 2 outputs supporting 8K/60Hz, 4K/120Hz pass-through, ALLM, VRR, eARC, and Dolby Vision.
-
Audiophile-Grade DAC Stage: Leverages premium 32-bit/768 kHz digital-to-analogue conversion to achieve ultra-low noise (-100 dB THD+N) and transparent audio playback.
-
Platform-Agnostic Streaming: Integrated wireless streaming support for Apple AirPlay 2, Google Cast, Spotify Connect, Roon, and Bluetooth v4.2.
-
Web-Based Interface & IP Control: Configured easily via browser interface or the Anthem Remote App, with native IP control integration for Control4, Crestron, Savant, and ELAN.
Technical Specifications
-
Preamplifier Processing Channels: 7.2 Discrete Channels (Dual Parallel Subwoofer Outputs)
-
Internal Amplified Channels: 5 Channels (Class AB)
-
Power Output (Channels 1–5 into 8 Ω): 100 Watts continuous per channel (2 channels driven, <1% THD)
-
Power Output (Channels 1–5 into 6 Ω): 130 Watts continuous per channel (2 channels driven, <1% THD)
-
Digital-to-Analogue Converters (DAC): 32-Bit / 768 kHz
-
Total Harmonic Distortion (THD+N): -100 dB (2 Vrms pre-out)
-
Signal-to-Noise Ratio (SNR): 110 dB (IEC-A filter, 2 Vrms pre-out)
-
Frequency Response: 20 Hz – 30 kHz (+/- 0.2 dB)
-
Surround Format Support: Dolby Atmos, DTS:X, DTS Virtual:X, IMAX Enhanced
-

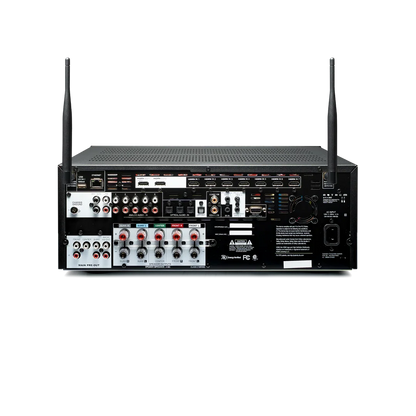

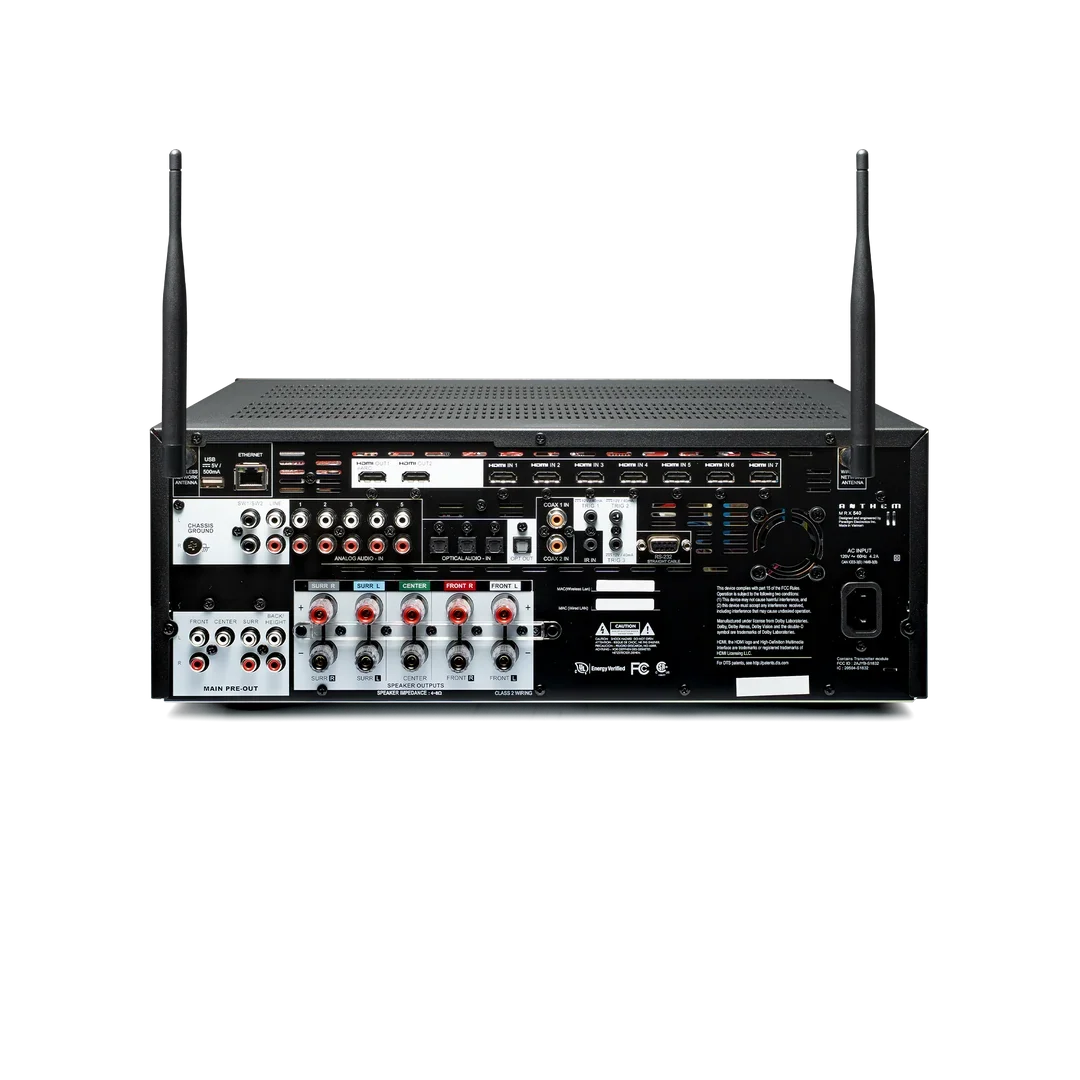

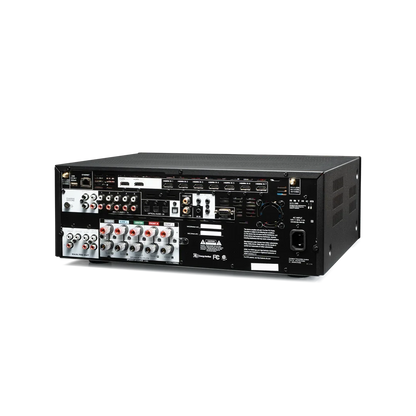

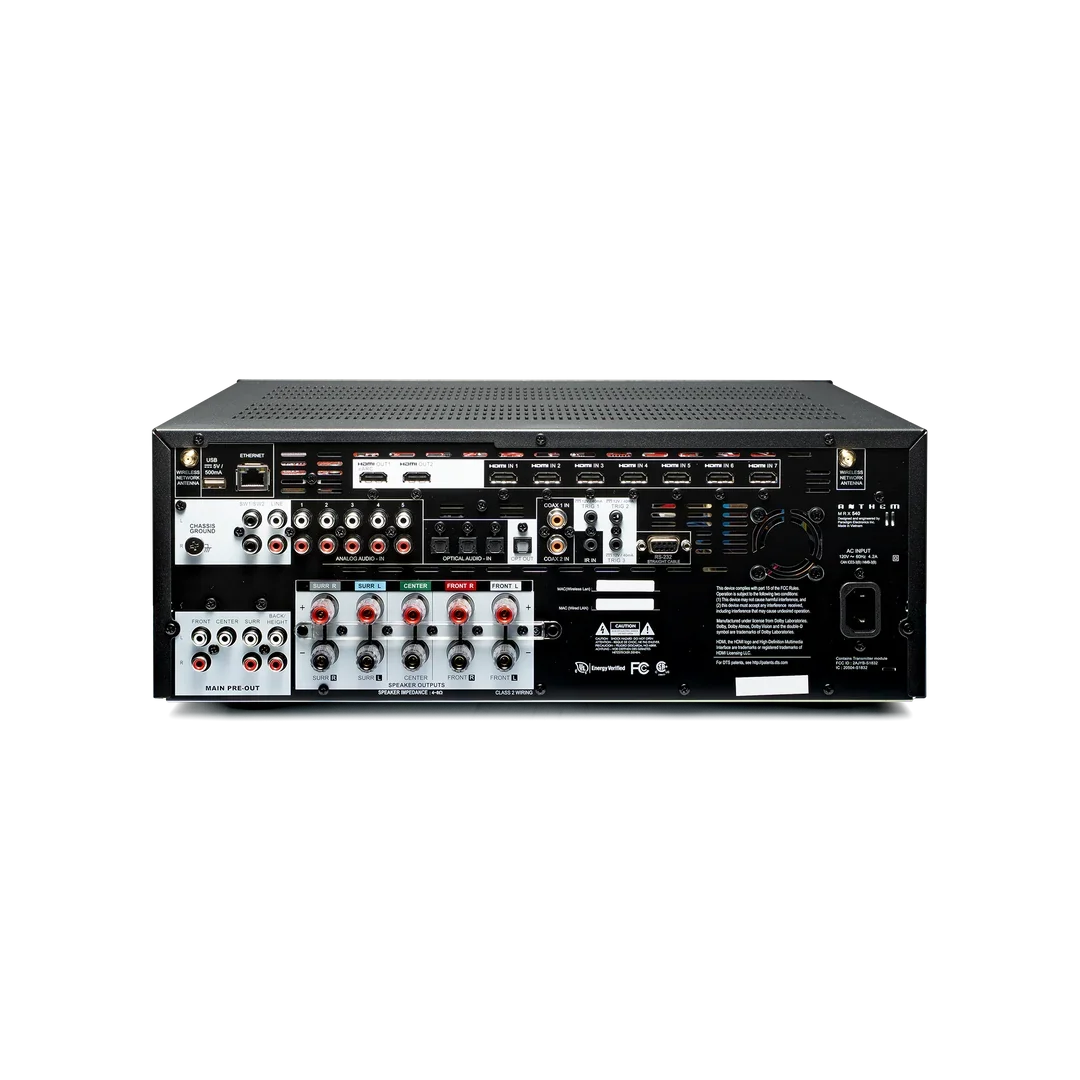

HDMI Video Platform: HDMI 2.1, HDCP 2.3 (7 Inputs / 2 Outputs including eARC)
-
Analogue Inputs: 5 x RCA Stereo Pairs
-
Digital Inputs: 3 x TOSLINK Optical, 2 x Coaxial SPDIF
-

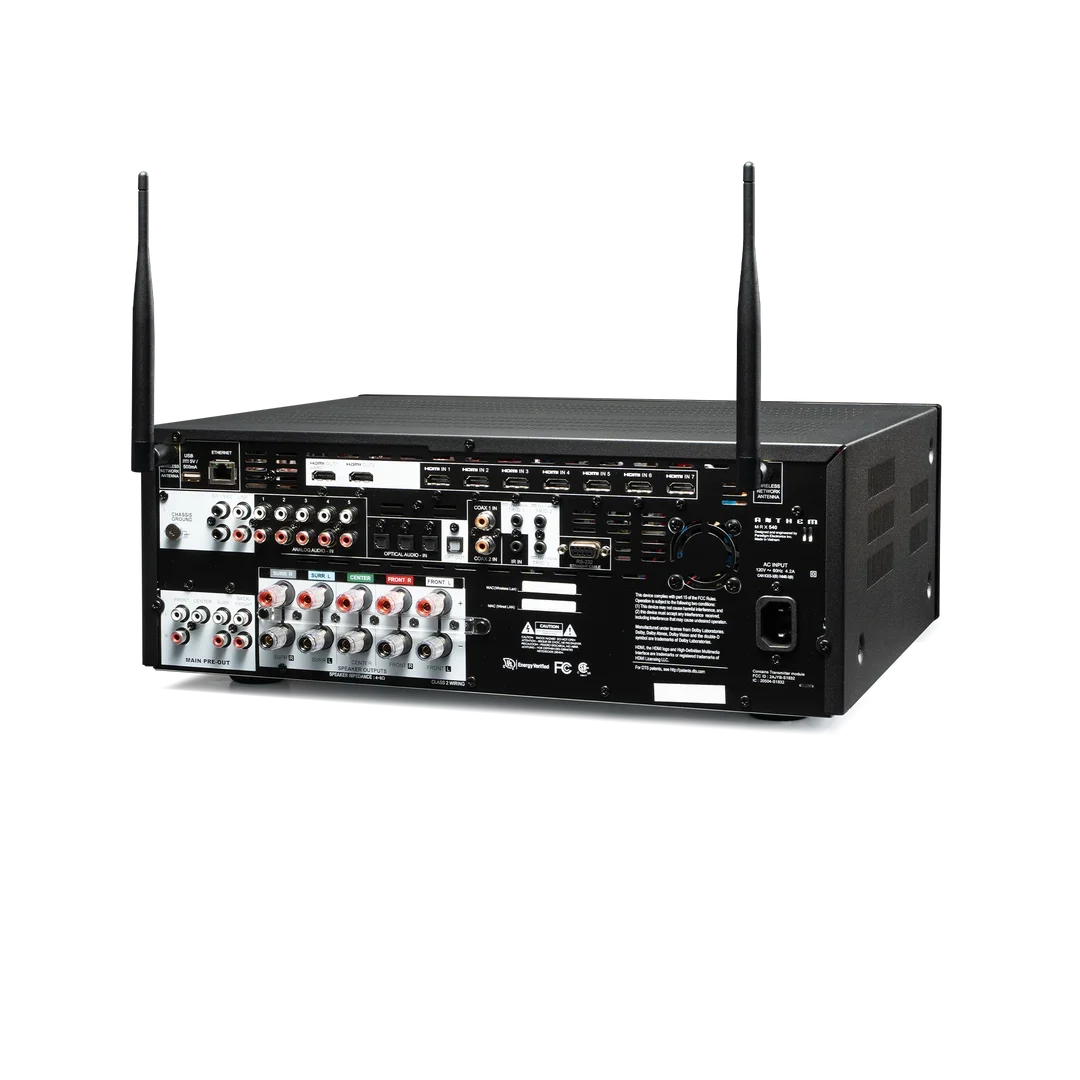

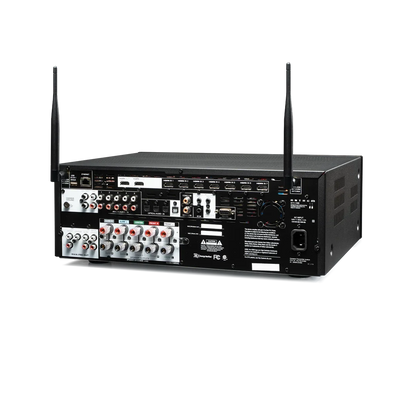

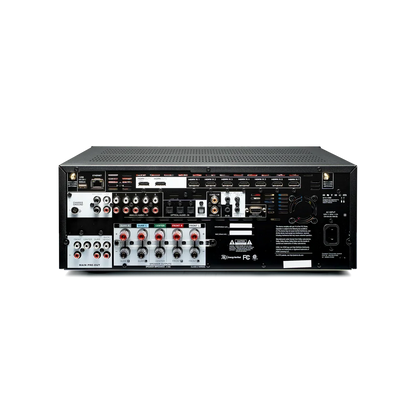

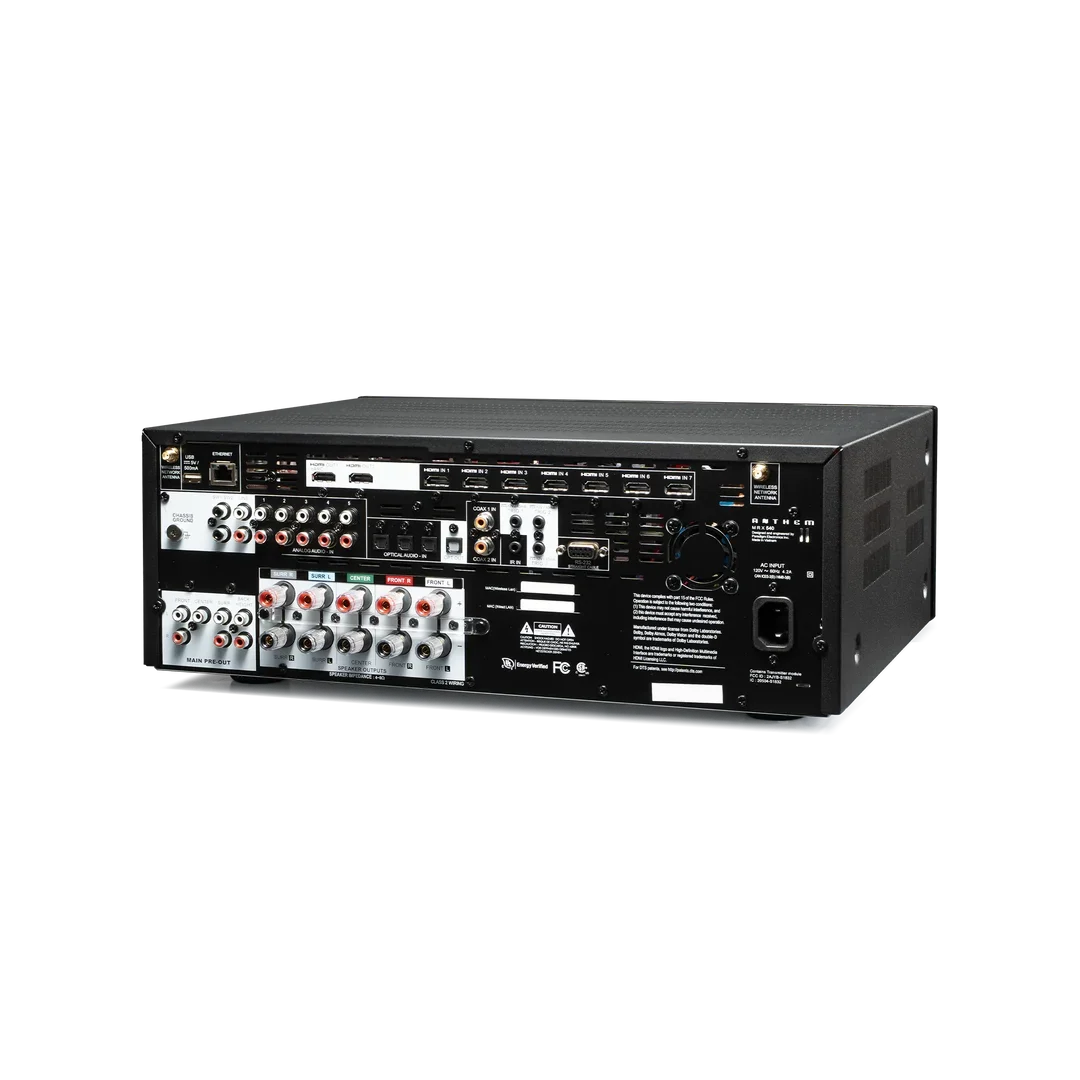

Pre-Outputs: 7.2 Channel Unbalanced RCA Pre-outs, Zone 2 Stereo RCA
-
Network / Streaming: Ethernet, Wi-Fi, AirPlay 2, Google Cast, Spotify Connect, Bluetooth v4.2
-
Dimensions (H x W x D): 15.24 cm x 43.18 cm x 36.4 cm (4U Rack Height)
-
Net Weight: 12.8 kg (28.2 lbs)
Consult with the Custom AV Specialists at Trimira Audio
Design a tailored multi-channel system centered around the Anthem MRX 540 8K. Contact the home theatre and custom integration specialists at Trimira Audio in Brisbane to discuss power amplifier expansion, ARC Genesis room calibration, or to schedule a private audition.
