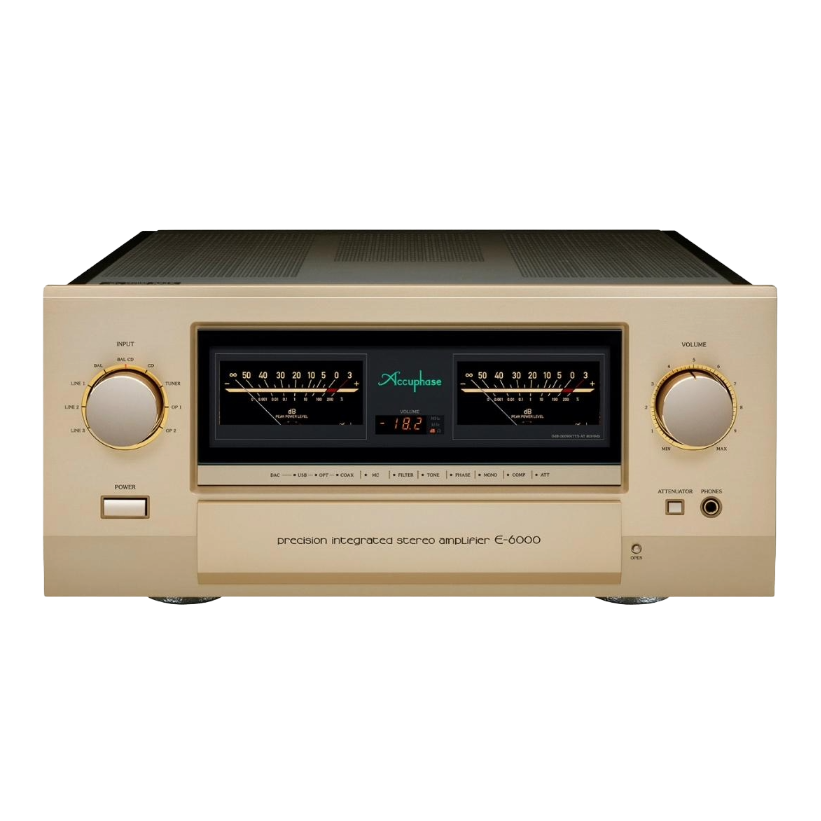

The Accuphase E-6000 is a flagship Class AB integrated amplifier designed to deliver the control, resolution, and authority normally associated with separate preamplifier and power-amplifier systems.
Combining Accuphase's fully balanced AAVA volume-control architecture, ANCC noise-cancellation technology, a six-parallel push-pull bipolar output stage, an oversized power supply, and an exceptionally high damping factor, the E-6000 is engineered to drive demanding loudspeaker loads with substantial reserves of current and power.
At Trimira Audio, we recommend the Accuphase E-6000 for reference two-channel systems where maximum loudspeaker control, dynamic scale, and sophisticated analogue circuitry are required from a single integrated chassis.
Key Features & Audio Engineering Highlights
Balanced AAVA Volume Control with ANCC
The E-6000 employs Accuphase's fully balanced AAVA (Accuphase Analog Vari-gain Amplifier) volume-control architecture.
Unlike conventional potentiometer-based volume controls, AAVA adjusts gain through an analogue current-based architecture while maintaining the signal in the analogue domain.
ANCC (Accuphase Noise and Distortion Cancelling Circuit) is incorporated into the I/V conversion stage to further reduce residual noise and distortion.
Six-Parallel Push-Pull Bipolar Output Stage
The power-amplifier section employs six high-output bipolar transistors in parallel per channel.
This substantial output stage delivers:
- 260 W/ch into 8 Ω
- 350 W/ch into 4 Ω
The parallel output architecture provides significant current capability for demanding loudspeaker loads.
Massive Low-Noise Power Supply
A large toroidal transformer is paired with custom Accuphase filter capacitors rated at:
2 × 47,000 µF / 100 V
This substantial power-supply reserve is designed to provide stable current delivery during demanding musical transients.
Ultra-High Damping Factor
The E-6000 specifies a damping factor of 1000, providing extremely low output impedance and strong electrical control of the loudspeaker load.
Accuphase also uses ultra-low-on-resistance MOS-FET switches in the speaker protection circuitry, with a specified on-resistance of just 0.84 mΩ.
Current-Feedback Amplifier Architecture
The power-amplifier section incorporates a current-feedback topology with cascode bootstrap circuitry.
This architecture is designed to maintain wide-band performance and stable high-frequency phase characteristics while delivering substantial output power.
Luxury Accuphase Construction
The E-6000 combines its substantial electronics with Accuphase's distinctive mechanical and visual design language, including:
- Large analogue power meters
- Satin-finished aluminium detailing
- Gold-plated control trim
- Large central volume control
- Rigid 221 mm-high chassis
At 38.6 kg, the E-6000 is built as a substantial reference-grade integrated amplifier.
Product Specifications
| Specification |
Technical Detail |
| Amplifier Class |
Class AB Integrated Stereo Amplifier |
| Rated Output Power |
260 W/ch into 8 Ω; 350 W/ch into 4 Ω |
| THD |
0.05% (2 Ω); 0.03% (4–16 Ω) |
| Intermodulation Distortion |
0.01% |
| Damping Factor |
1000 (guaranteed minimum at 8 Ω / 50 Hz) |
| Preamplifier Circuitry |
Fully Balanced AAVA with ANCC Noise Cancellation |
| Output Configuration |
6-Parallel Push-Pull Bipolar Transistors per Channel |
| Power Supply Capacitance |
2 × 47,000 µF / 100 V Custom Accuphase Capacitors |
| MOS-FET Switch On-Resistance |
0.84 mΩ |
| Analogue Inputs |
5 × Line RCA; 2 × Balanced XLR with Phase Selection |
| Pre/Power Separation |
MAIN IN (RCA/XLR) and PRE OUT (RCA/XLR) |
| Expansion Slots |
2 × Rear Option Slots for Accuphase DAC-60 or AD-60 Boards |
| Protection |
Short-Circuit, Over-Temperature and DC-Offset Detection |
| Dimensions (W × H × D) |
465 × 221 × 502 mm |
| Net Weight |
38.6 kg |
Expansion & System Integration
The E-6000 can be configured beyond its standard analogue inputs through Accuphase's rear-panel option slots.
DAC Expansion
The optional DAC-60 board provides integrated digital-input capability for systems that want digital conversion inside the amplifier.
Phono Expansion
The optional AD-60 phono board allows the E-6000 to accommodate a dedicated analogue phono input without requiring a separate external phono stage.
PRE OUT / MAIN IN
The separate preamplifier and power-amplifier connections allow the E-6000 to be incorporated into more complex systems, including:
- External processor integration
- External power amplification
- Bi-amping
- Subwoofer/system integration
Why Choose Trimira Audio for Your Accuphase Reference System?
Trimira Audio Showroom Experience
Visit the Trimira Audio showroom to audition the Accuphase E-6000 with high-end floorstanding loudspeakers and reference digital sources.
System Integration Specialists
Our team can assist with:
- DAC-60 versus AD-60 expansion
- Speaker matching
- Balanced XLR integration
- Bi-amping configurations
- Speaker-cable termination
- Digital-source integration
- Complete Accuphase system design
Australian Support
Trimira Audio supplies high-end Accuphase equipment throughout Queensland and Australia with local warranty support and specialist freight handling.
What's Included in the Box?
- 1 × Accuphase E-6000 Integrated Amplifier
- 1 × RC-260 Remote Commander
- 1 × Heavy-Duty AC Power Cord
- Owner's Manual
- Official Accuphase Warranty Documentation
