RMP-DAC3EX
- Regular price
- $10,499
- Regular price
-
- Sale price
- $10,499
- Unit price
- per
Made in Japan
Couldn't load pickup availability
Have a question?
Notified by email when this product becomes available
$10,499
- Description
- Specification
- Installation
- Returns
The sound concept of RMP-DAC3EX
"Realistic audio is the most beautiful".
This is why we strive for the most musicality in our audio equipment.
One of the most important factors for achieving realistic audio reproduction is "realistic tonality" of musical instruments .The violin must sound like a violin, and the oboe must sound like an oboe in order to faithfully convey the musical expression contained in the "performance."
This is why the design concept of reproducing the original recorded source information without alteration and spoiling is important.
Because the tonality of live musical instruments consists of minute harmonics that are intertwined in multiple layers, its reproduction is directly linked to musicality.
The DAC3 brings out the musicality of the performer by valuing the original timbre and expression of various musical instruments, especially the natural reproduction of minute signals.
Capacitor Blending for RMP-DAC3EX
HBIKIICHI is a capacitor developed in collaboration with Nichicon to bring out a natural sound and is also used in our amplifiers (pictured above on the far right).
In addition,DAC3EX features new capacitor "MR56"which increases the expressiveness of the midrange.
Furthermore, from the SPEC sound quality capacitor lineup, we have selected and blended capacitors to achieve more realistic sound reproduction than ever before.
R core transformer for energetic expression
A dedicated R-core transformer supplies the drive current of the output stage by a margin.
R core transformer
Diode Bridge Rectifier Circuit
The DAC as a Musical Instrument
A DAC is a device that reconverts the digital signal into the analog signal,
In order to reconvert minute signals into fresh analog, the DAC3 has a separated power supply. The power supply, which is free from the vibration of the transformer and has excellent "musical expressiveness", surely conveys the musicality of the performer.

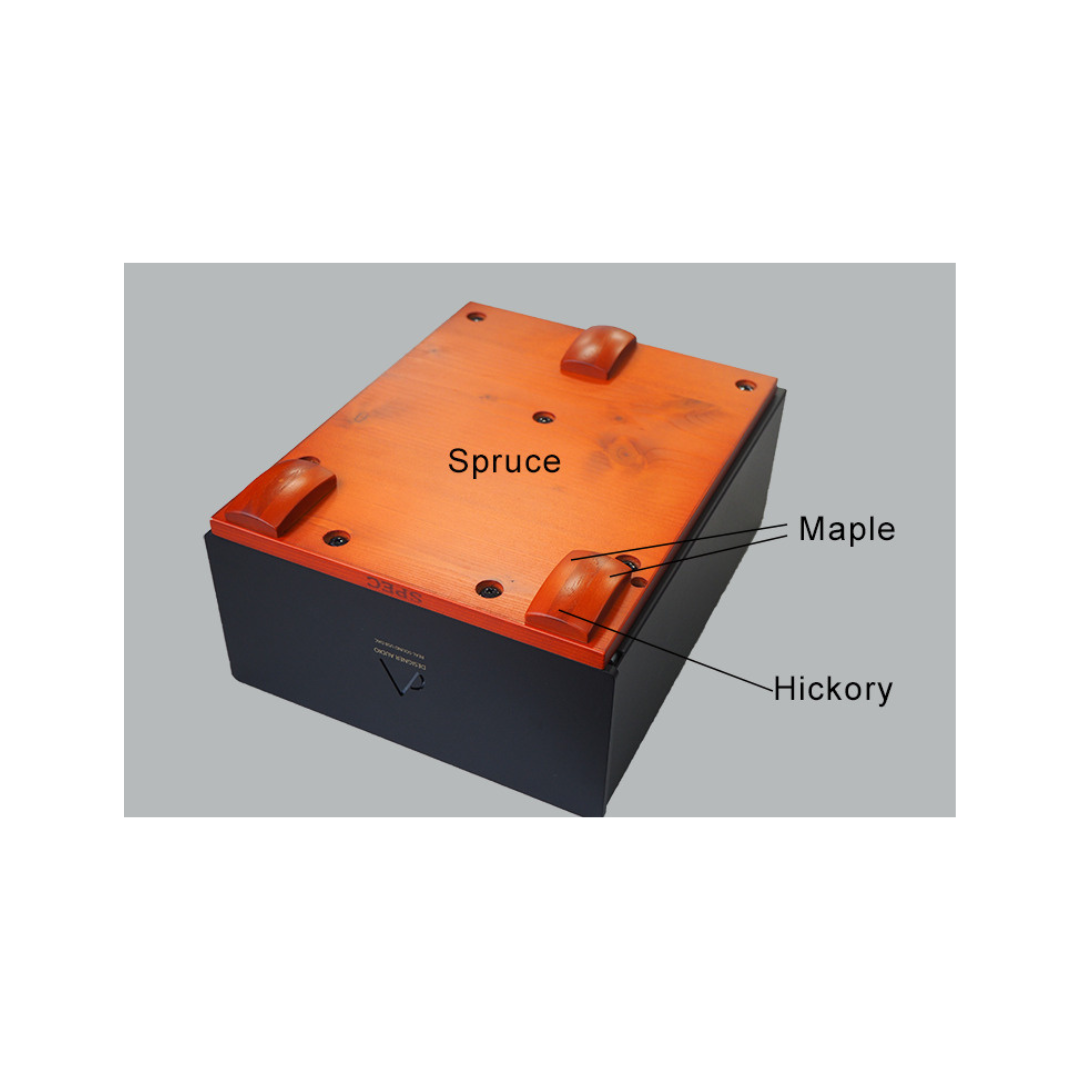

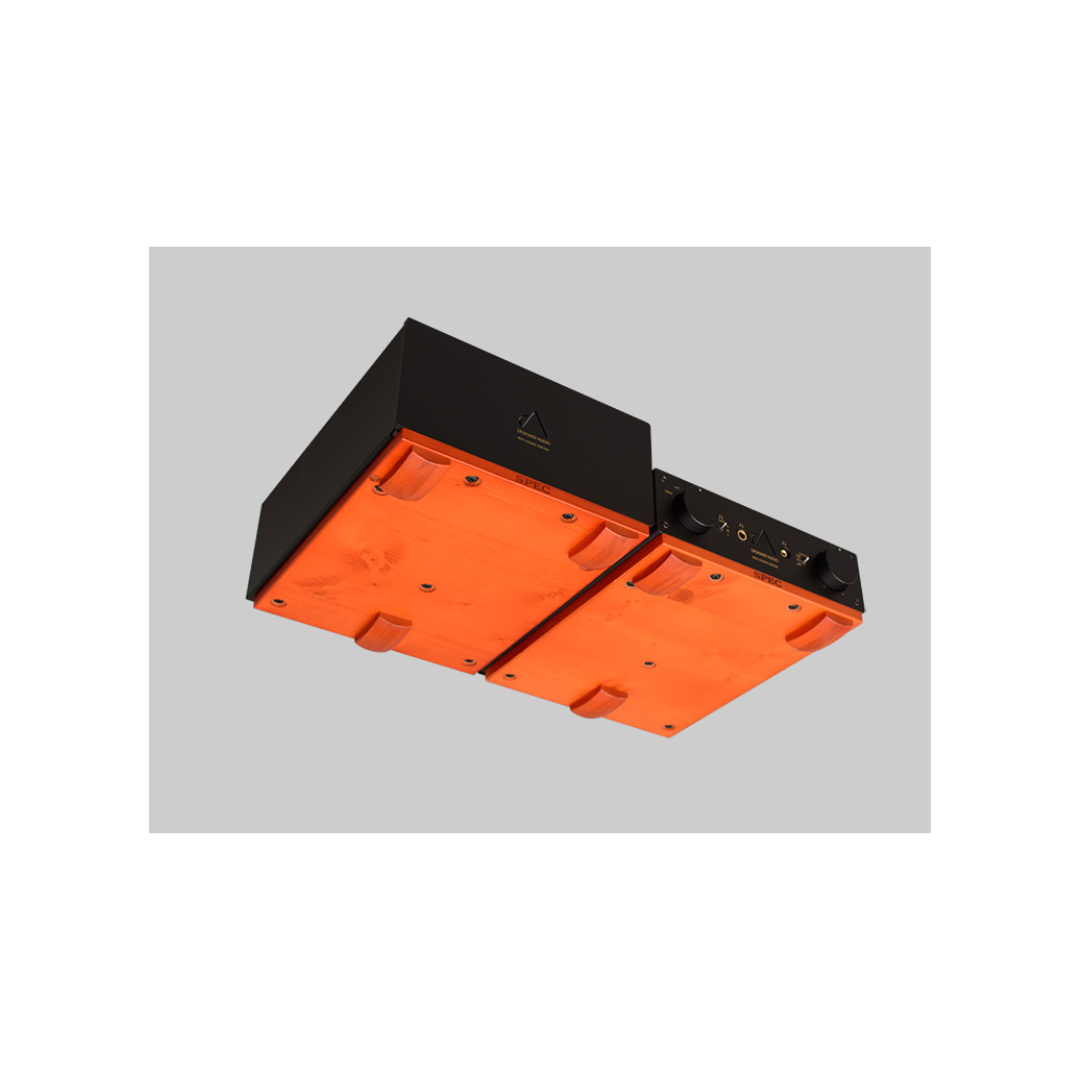

The wooden panel attached to the bottom is made of the same spruce material as the top plate of a violin. Spruce is a relatively soft material that vibrates with music signals to reproduce a rich tone and energy.
In addition, in DAC3EX, we have adopted a new shape and structure of a LEG. The structure in which HICKORY is embedded in the groove in the center of MAPLE optimally supports the main body chassis.
The ground surface is spherical, and by supporting the whole cabinet with points of hickory, we have created “the structure of the body that plays realistic music". The DAC3 is also built as an instrument.
Photos

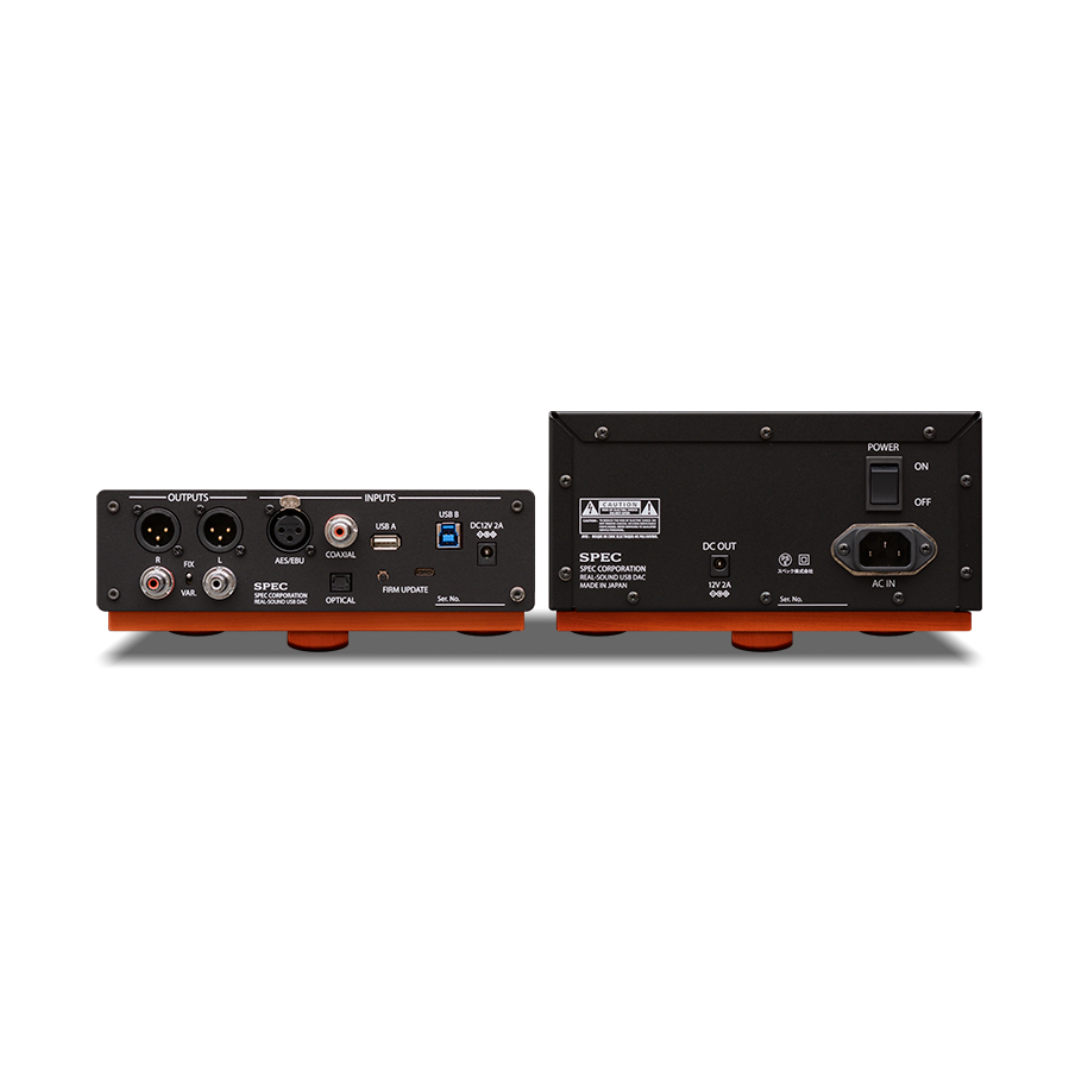

| Input terminals (one system per terminal) | ||
|---|---|---|
| AES/EBU | MAX PCM 24Bit/192kHz | |
| COAXIAL | MAX PCM 24Bit/192kHz | |
| OPTICAL | MAX PCM 24BIT/192kHz | |
| USB B | MAX PCM 32Bit 384kHz, DSD Native 256, DoP 128 (Computer or smartphone as input source with an OTG cable) |
|
| USB A | MAX PCM 32Bit 384kHz, DSD Native 256, DoP 128 (Computer or smartphone as input source with an OTG cable) |
|
| Output terminals | ||
| Balanced XLR | MAX 4.6 Vrms | |
| Unbalanced RCA | MAX 2.3 Vrms | |
| Others | ||
| External dimensions | Main body: 215mm (W) × 82mm (H) × 299mm (D) (terminals included) Power supply: 215mm (W) × 122mm (H) × 273mm (D) |
|
| Power supply voltage | AC110V120V 220V 230V 240V | |
| Power consumption | 30W | |
| Mass | Main body 3.0kg, power supply 4.0kg | |
