Philips Dynalite PDEG – Ethernet Gateway

Vendor: Dynalite
Philips Dynalite PDEG – Ethernet Gateway - Trimira
Philips Dynalite PDEG – Ethernet Gateway

$0

Philips Dynalite

PDEG – Ethernet Gateway

 

Flexible Ethernet integration

The Philips Dynalite PDEG provides a multipurpose Ethernet connection to a Philips lighting control system. It supports access to the lighting system via a dedicated Philips app as well as providing a web interface delivering access to the inbuilt timeclock and schedule editor functions. It provides bridging functionality between Ethernet backbone and the DyNet fieldbus devices.

  • Large storage capacity – The device stores large project files internally, which apps use to automatically configure their settings. This saves configuration time and ensures accuracy for phone and tablet control.
  • Built-in web server – Allows the user to edit and check system settings via the Network Hardware Checker and System Roll Call tools.
  • No technical skills needed – Inbuilt timeclock and schedule manager allow the user to manage operation and task scheduling without advanced technical knowledge.
  • Powerful custom task engine – Allows users or third-party systems to run macros, such as ‘After Hours’, ‘Shut Down’, ‘Welcome’ and more.
  • Advanced interoperability – Supports management of Philips Dynalite and Philips PoE fittings on a single system.



Item Specification  Details
Electrical Dual supply option

12 / 24 VDC from an external regulated SELV / Class 2 power supply. Max 100 mA @ 12 V plus DyNet load, max 50 mA @ 24 V plus DyNet load or;
12 / 24 VDC from DyNet (no external PS connected). Max 100 mA @ 12 V, max 50 mA @ 24 V
DyNet DC Supply

Max 200 mA contribution to the network (when powered from external power supply)

Power supply voltage shall match network voltage
Control Communication Ports

One RS-485 DyNet serial port

One 10/100BaseT Ethernet port
Supported Ethernet Protocols

TCP/IP (TCP, UDP)

HTTP, FTP
IPv4, IPv6
Storage Capacity

Max 16 MB for XML file storage

28 day rolling network log
User Controls

Service switch

Service LED

Ethernet LED’s status
Diagnostic Functions

Device Online / Offline status
Physical

RS-485 Port Connections

Shield, GND, D-, D+, +Ve, AUX

All available on screw terminals

1 x 2.5 mm2 conductor size

Also available on RJ12 socket
Ethernet Port Connections

Female RJ45 socket
Supply Terminal

1 x 2 pole 5 mm pluggable screw terminal (+, -), 1 x 2.5 mm2 max conductor size per pole

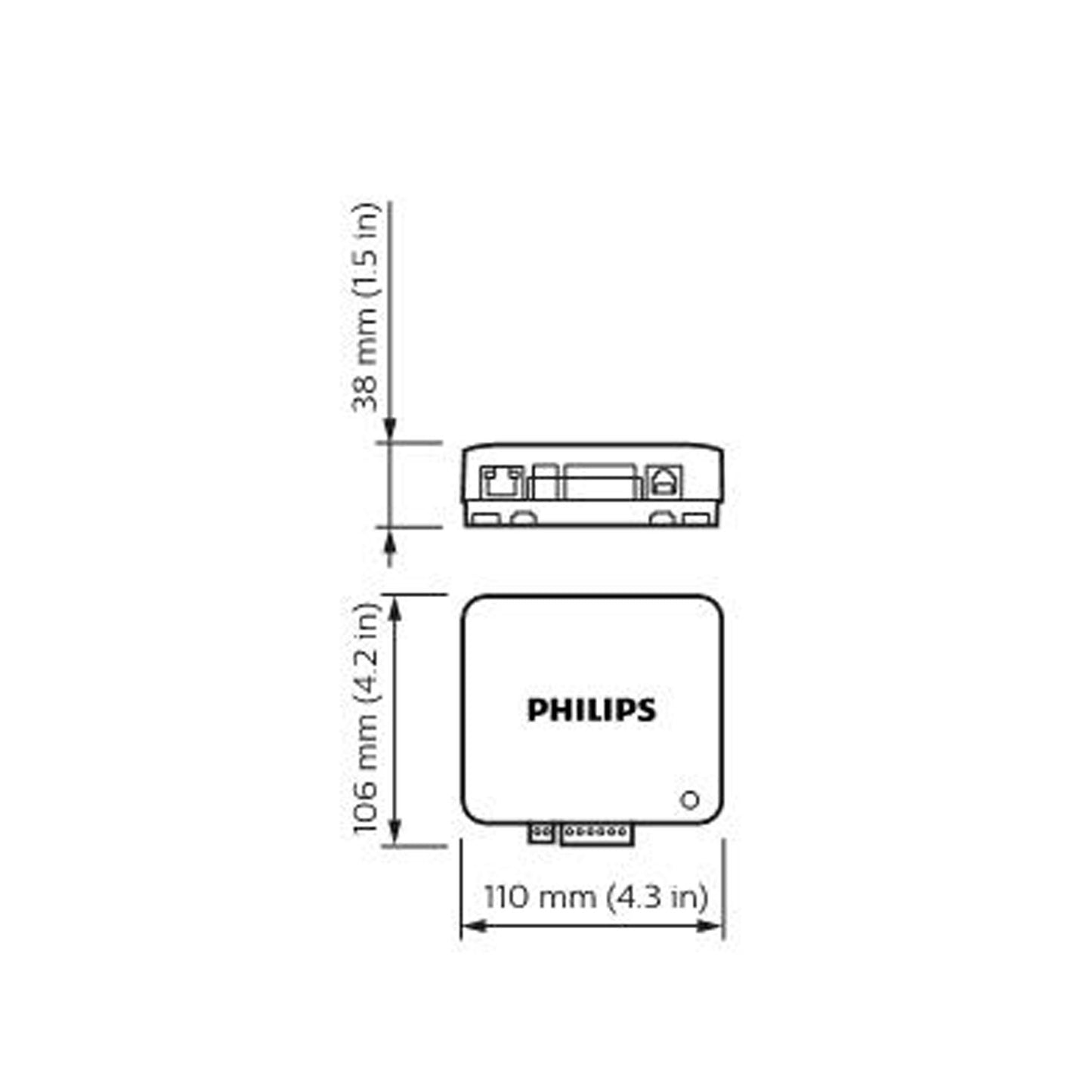

Dimensions (H x W x D)

97 mm x 110 mm x 38 mm (3.8” x 4.3” x 1.5”)

Packed Weight

0.21 kg

Construction

Low profile DIN-rail polycarbonate (6 unit)

Operating Conditions

Temperature: -5 to 50° C ambient

Humdity: 0 to 90% non-condensing

Storage & Transport

Temperature: -25 to 70° C ambient

Humidity: 0 to 90% non-condensing
Certification

Certification

CE, C-Tick, UL, FCC, ICES
Options & Ordering

Standard Product

EnvisionGateway DL-ETHENVG-101 (Philips 12 NC - 913703013809)
