Philips Dynalite

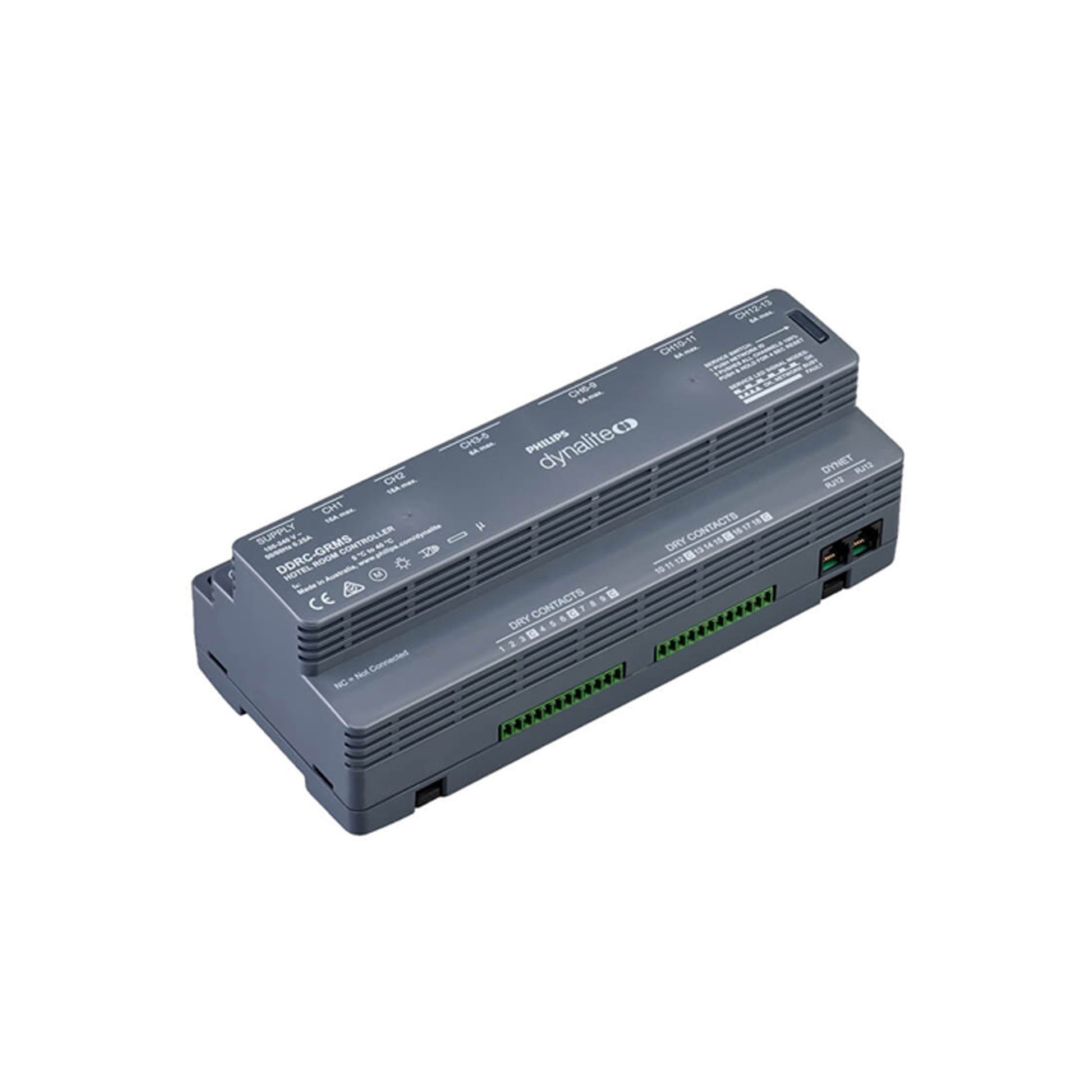

DRC-GRMS – Room Controller

Compact switching controller for single room solutions

The Philips Dynalite DRC-GRMS-UL controller is a general room automation and energy management solution. This controller is completely self-contained and requires no external power supply, relays or processor. This model is suitable for use in CE and UL markets.

• Dry contact inputs — Allows input from voltage-free button presses or a keycard switch within the room.

• Pre-programmed — No onsite programming required as the unit is supplied with complex functions such as ‘master on/off’, ‘room unoccupied’, ‘do not disturb’ and ‘make up room’ already configured.

• Built-in motor directional relays — Provides control of motorized blinds for a full automation solution.

• Two 16 A power relays — Enables a total energy management solution, reducing standby power consumption by powering GPO/plug loads and air conditioning systems only when required.

• UL924 input — Suitable for use with emergency lighting circuits.

• Single box solution — Provides an economical total energy management solution for various rooms and suites.

Item Specification Details
Controller Supply Voltage 120/230/277 VAC +10/-15%, 50/60 Hz Single Phase, 0.7 A max IEC Overvoltage Category III
DyNet DC Supply 12/24VDC (selectable) @ max 200mA

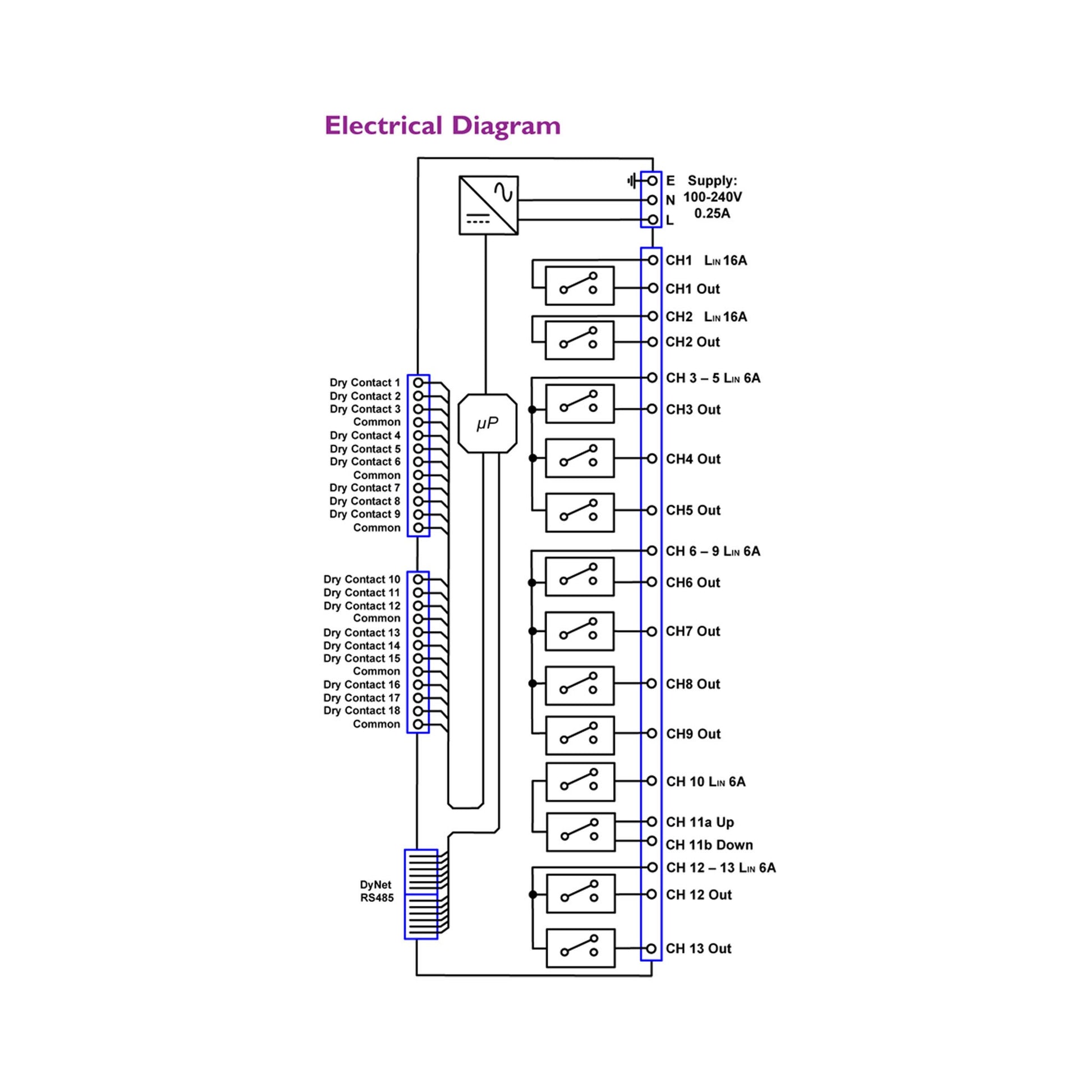

CH1, CH2, CH3-CH6*, CH7-CH10*, CH13-CH14*:
Load type             Maximum output ratings
General use**        16 A, 277 VAC
Incandescent          1200 W, 277 VAC
Electronic ballast   5 A, 120 VAC
Electrical                                   3 A, 277 VAC
Standard ballast     2 A, 277 VAC
TV-Rating                TV-8, 120 VAC
CH11, CH12:
Load type             Maximum output ratings
General use**        16 A, 277 VAC (N/O only)
Load Outputs                                   4 A, 250 VAC (N/C only)
Motor                      0.5 HP, 125 VAC (N/O only)
                                  1 HP, 250 VAC (N/O only)
* Common Feed, 16 A max
** Continuous or inrush load ampere rating not exceeding the maximum ampere rating of the device.
The load power factor is ≥0.8 (inductive).
 .
1 x DyNet RS485 serial port
18 x Dry contact inputs (Non-Isolated)
Control Inputs/Outputs 1 x UL924 emergency input (Non-Isolated)
3 x Dry contact outputs (Isolated)
Control
User Controls Service switch
Diagnostic LED
Supply/Load Terminals Screw terminals
Conductor size 0.2 – 6 mm2 (#24 – #10 AWG
Dry Contact Input Terminals: 2 x 12-way pluggable screw terminals,
 Conductor size 0.13 – 1.5 mm2 (#26 – #16 AWG)
UL924 Terminals 1 x 2-way pluggable screw terminal
Conductor size 0.13 – 1.5 mm2 (#26 – #16 AWG)
Physical DyNet Terminals 1 x 5-way pluggable screw terminals
Conductor size 0.3 – 4 mm2 (#22 – #12 AWG)
3 x RJ45 socket
Dry Contact Output Terminals 1 x 6-way pluggable screw terminal
 Conductor size 0.3 – 4 mm2 (#22 – #12 AWG)
Dimensions (H x W x D) 330 x 322 x 107 mm
Packed Weight 3.6 kg
Construction Galvanized steel enclosure; powder coated front cover
Operating Conditions Temperature: 0 to 40°C (32 to 104°F) ambient
Humidity:  0 to 95% non-condensing
IEC Pollution Degree II
Storage & Transport Temperature:  -25 to 60°C (-13 to 140°F) ambient
Humidity:  0 to 90% non-condensing
Certification Certification CE, RCM, UL/cUL, FCC Class B, ICES-003, RoHS
Options & Ordering Standard Product DRC-GRMS-UL (Philips 12NC – 913703331109)
