Philips Dynalite DMC4 – Multipurpose Modular Controller
How to enquire ?
Give us a call at (07) 3854 0406 or shoot us an email at info@trimira.com.au to enquire about this product.
Adding product to your cart
Philips Dynalite
DMC4 – Multipurpose Modular Controller
The Philips Dynalite DMC4 provides multichannel control via four interchangeable modules. The device is available with a variety of control modules to handle various load types and capacities. The DMC4 is available in CE and UL certified variants.
• Single controller solution – Control a multitude of load types from one device, suited to any segment requiring lighting or relay control.
• Phase-cut dimmer module – Selectable per channel for leading or trailing edge output. Compatible with most dimming loads.
• Signal dimming module – Suitable for controlling 1-10V, DSI and DALI broadcast drivers. Built-in relays remove power when channel level is at 0%.
• Relay control module – Suitable for controlling most types of switched loads.
• Flexible mounting solution – Surface or recess mountable enclosure.
• Passive cooling – Fanless design reduces noise, power consumption and maintenance costs.

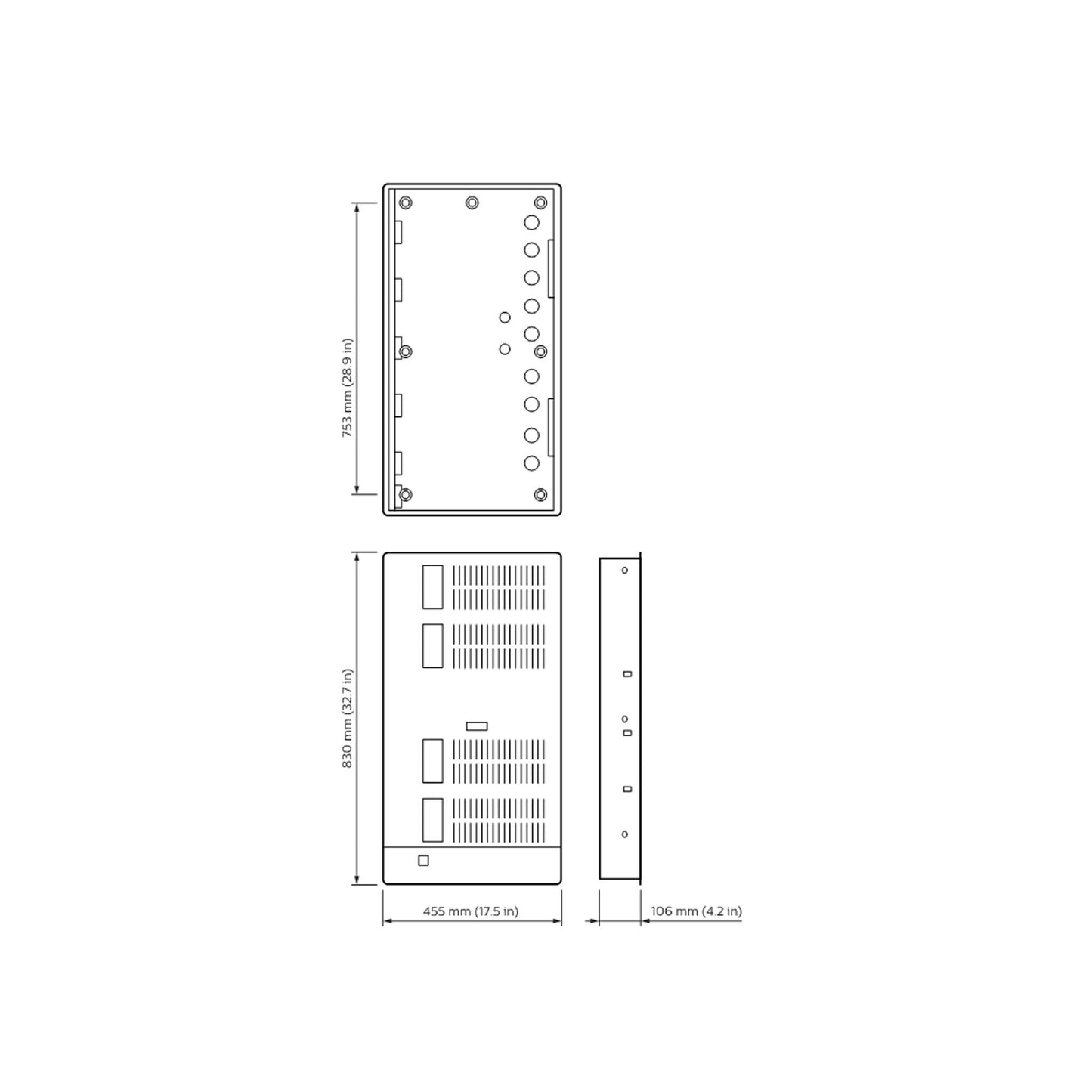

Item | Specification | Details |
Input Voltage | 120/208, 230/400, 277/480 VAC (+10% / -15%) | |
3-Phase, 4-Wire (Y), or Single Phase | ||
IEC Overvoltage Category III | ||
Input Current | 63A per phase for 3-phase supply, or single phase 63A max | |
Input Frequency | 50/60Hz | |
DyNet DC Supply | 12/24VDC (selectable) @ max 200mA (Class 2) | |
DMD310-CE*: 3 x 10A 1-10 V, DSI or DALI broadcast | ||
DMD316-CE*: 3 x 16A 1-10 V, DSI or DALI broadcast | ||
1-10V: 50mA sink/source, max 100 drivers per channel | ||
DALI/DSI: 16VDC 130mA nom. | ||
max drivers: 64 per channel (192 per module) | ||
max current: 190mA per channel | ||
Electrical | (No external DALI power supply permitted) | |
DMP310-GL-CE*: 3 x 10A Leading/Trailing Edge dimming. | ||
Maximum module output 14A | ||
Current limited to 4.3A per channel at 277V | ||
DMP603-GL-CE*: 6 x 3 A Leading/Trailing Edge dimming | ||
Maximum module output 14 A | ||
Current limited to 1.7 A per channel at 277 | ||
Control Modules | DMR310-CE*: 3 x 10A relay (lighting and resistive load), | |
1HP (120/230/277V) (motor load) | ||
DMR316-CE*: 3 x 16A relay (lighting and resistive load), | ||
1HP (120V), 2HP (230/277V) (motor load) | ||
DMR610-GL-CE*: 6 x 10 A switched outputs: | ||
120-277 V (lighting and resistive load) | ||
1HP (120 V), 2 HP (230/277 V) (motor load) | ||
Max. continuous output per phase: 16 A 120-277 V | ||
* Line, Neutral for each channel | ||
Conductor size 1 x 16 mm² (AWG6) | ||
Inrush current rating: 500 A for 200 µs | ||
One RS-485 DyNet serial port | ||
(1 x 5-way pluggable screw terminal + 3 x RJ-12 sockets) | ||
One DMX512 Rx port | ||
Communication Module | Four programmable dry contact AUX inputs (non-isolated) | |
One UL924 trigger input† | ||
Service switch | ||
Control | Diagnostic LED | |
Channel override keypad | ||
† This function must only be used with systems complying to UL924, and must not be used with any other system. | ||
Diagnostic Functions | Device online/offline status | |
Channel on/off/faulty status | ||
DyNet Watchdog | ||
. | ||
Physical | Supply Module | Line 1, Line 2, Line 3, Neutral Max conductor size 1 x 16 mm² (#6 AWG) Earth link bar provided |
Dimensions (H x W x D | 540mm x 380mm x 103mm | |
DMC4-CE 13.7 kg | ||
DMD31X-CE 1.8 kg | ||
Packed Weight | DMP310-GL-CE 2.1 kg | |
DMP603-GL-CE 2.3 kg | ||
DMR31X-CE 1.7 kg | ||
DMR610-GL-CE 1.9 kg | ||
DCM-DyNet 0.8 kg | ||
DSM4-XX 1.25 kg | ||
Construction | Galvanized steel case with powder coated front covers | |
Operating Conditions | Temperature: 0 to 40°C (32 to 104°F) ambient | |
Humidity: 0 to 95% non-condensing | ||
IEC Pollution Degree II | ||
Storage & Transport | Temperature: -25 to 60°C (-13 to 140°F) ambient | |
Humidity: 0 to 90% non-condensing | ||
Certification | Certification | CE, RCM, RoHS |
High SCCR 22 kA @ 277 VAC (UL67) | ||
Options & Ordering | Naming Format | DMC2-CE (Philips 12NC – 913703666109) |
DMD310-CE (Philips 12NC – 913703666609) | ||
DMD316-CE (Philips 12NC – 913703666709) | ||
DMP310-GL-CE (Philips 12NC – 913703666809) | ||
DMP603-GL-CE (Philips 12NC – 913703668509) | ||
DMR310-CE (Philips 12NC – 913703666409) | ||
DMR316-CE (Philips 12NC – 913703666509) | ||
DMR610-GL-CE (Philips 12NC – 913703668209) | ||
DCM-DyNet (Philips 12NC – 913703666209) | ||
DSM4-XX (Philips 12NC – 913703668009) | ||
RCBO modules | DMD310-RCBO-CE (Philips 12NC – 913703667109) | |
DMD316-RCBO-CE (Philips 12NC – 913703667209) | ||
DMP310-GL-RCBO-CE (Philips 12NC – 913703667309) | ||
DMP603-GL-RCBO-CE (Philips 12NC – 913703668609) | ||
DMR310-RCBO-CE (Philips 12NC – 913703666909) | ||
DMR316-RCBO-CE (Philips 12NC – 913703667009) | ||
DMR610-GL-RCBO-CE (Philips 12NC – 913703668309) |
