Philips Dynalite

PATPA

Antumbra Touch

Contemporary smooth glass panels with capacitive touch technology

The Philips AntumbraTouch user interface has a smooth glass finish and uses capacitive touch technology to detect a persons presence. It also incorporates the latest in field effect technology. The contemporary design features a number
of button configurations, with each button capable of local or site-wide control functions. The PATPA range is suitable for, but not limited to, North American, South American, Australian and New Zealand markets.

  • Field effect technology – The user interface detects an approaching user and ‘wakes up’, initiating a wall-wash lighting effect to encourage interaction.
  • Capacitive touch technology – Smooth glass finish detects the presence of a finger and triggers a button press action.
  • Supplied as two components – The Application Module contains buttons, rim, base and mounting plate, which can be mixed and matched to suit décor. The Communication Module contains all of the logical and network functions and is pre-programmed off-site, allowing commissioning to commence prior to finish options being finalized.
  • Hidden sensory inputs – An internal light sensor measures ambient light and adjusts lightwash effect accordingly. A built-in temperature sensor automatically adjusts air conditioning when integrated into the system.
  • Multiple language and icon labeling – Button labeling language choices include English, Chinese and Arabic. A library of common icons transcends language barriers, which is particularly useful in hospitality applications.
  • Selection of rim and fascia options – Allows décor matching to suit any environment.
Item
Specification  Details
Electrical
DyNet DC Supply

12-24 VDC SELV/Class 2
max 40 mA @ 12 VDC, max 25 mA @ 24 VDC

Control Inputs

One RS-485 DyNet serial port

One 5-way removable screw terminal (optional CAT5/CAT6 wire termination available. Requires optional DRJ485ADAPT adapter)

Control
Temperature Sensing

41° to 104°F ± 2.7°F (5 to 40°C ± 1.5°C)

Field Effect Detection

Range: ~6 in (~15 cm)

Physical

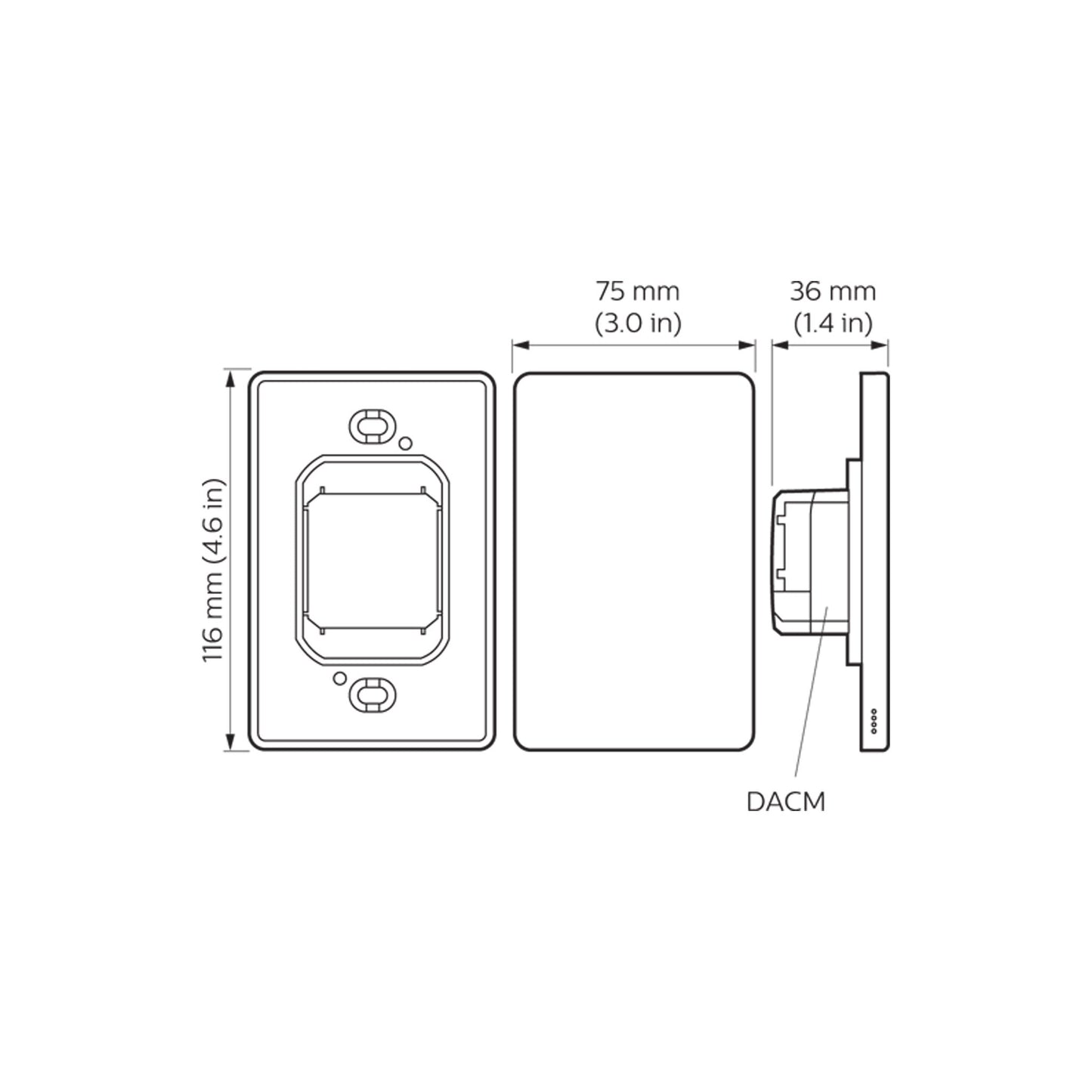

Dimensions (H x W x D)

4.6 x 3.0 x 0.9 in (116 x 75 x 22 mm)

Packed Weight

7.05 oz (0.2 kg)

Button Finishes

White, Silver and Magnesium

Rim Finishes

White, Magnesium, Chrome and Aluminum

LED Indicators

Buttons - white

Backlight wash - white

Field Effect Detection Range

~ 6 in (15 cm)

Operating Conditions

Temperature: 32 to 122°F (-0 to 50°C) ambient Humidity: 10 to 95% non-condensing

Storage & Transport

Temperature: -13 to 140°F (-25 to 60°C) ambient Humidity: 0 to 90% non-condensing

Certification
Compliance

CE, RCM, FCC, ICES, RoHS

IP Rating IP22
