M-6200 1,200W/1Ω Monophonic Power Amplifier

Vendor: Accuphase

Made in Japan

JP
M-6200 1,200W/1Ω Monophonic Power Amplifier - Trimira
M-6200 1,200W/1Ω Monophonic Power Amplifier

$999,999,999,999

Accuphase

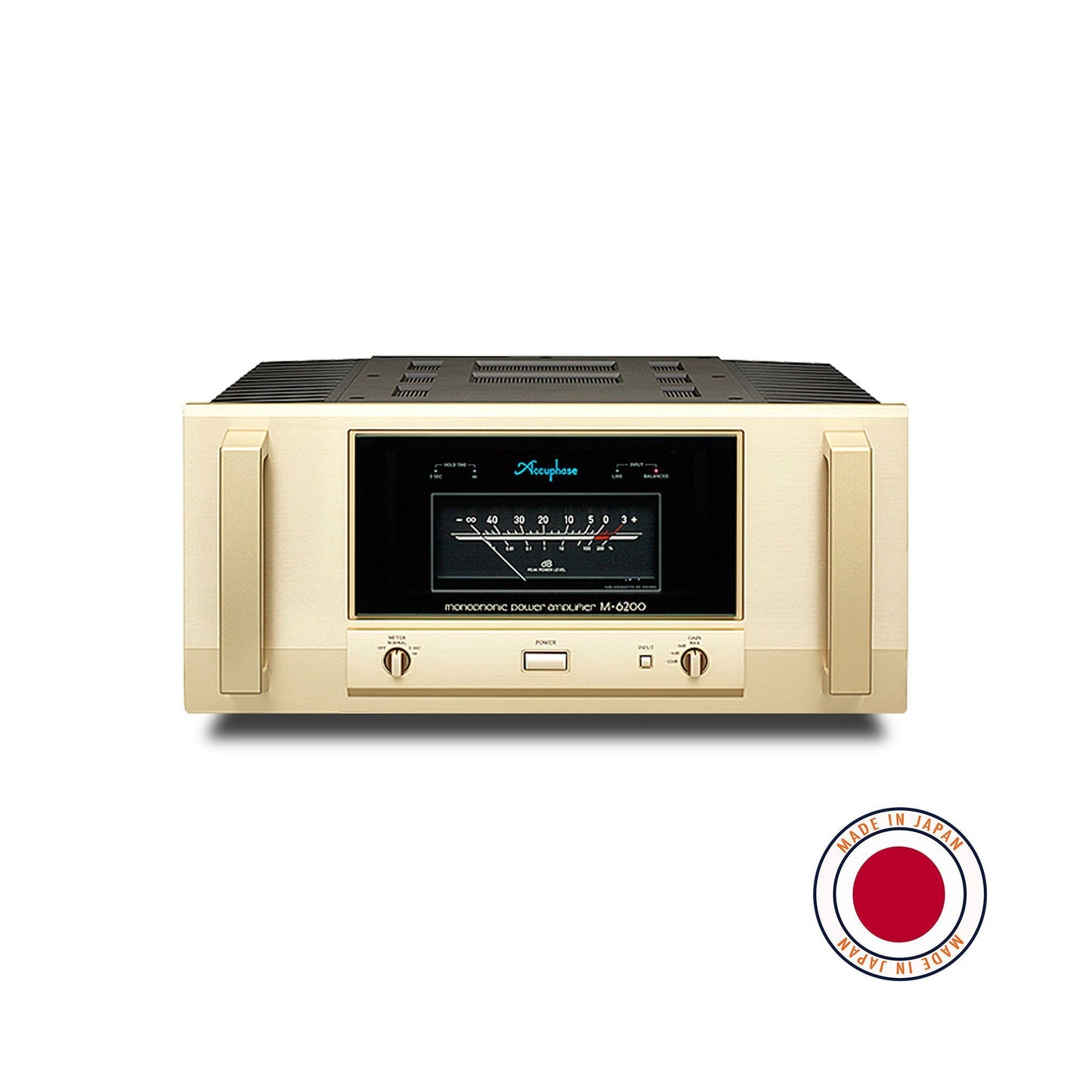

M-6200 1,200W/1Ω  Monophonic Power Amplifier

The M-6200 approaches the concept of the power amplifier from a new vantage point. It achieves an unprecedented level of performance that again redefines what a monophonic power amplifier can be. Retaining the parallel arrangement of two completely identical amplification circuits, the M-6200 drastically lowers the noise floor and improves the damping factor. Parallel operation has the advantage of significantly bolstering output current capability, as well as enabling extremely low output impedance. Furthermore, improvements to the NFB circuit using remote sensing and other technological refinements result in a damping factor in excess of 1,000 and make the amplifier capable of delivering constant current down to extremely low impedance loads. In the input stage, parallel operation along with optimized gain allocation keeps noise levels to an absolute minimum, as illustrated by the astonishing S/N ratio of 127 dB at maximum gain and 133 dB at the -12 dB gain setting.

  • Two totally identical power amplifier units driven in parallel
  • Output stage features novel high-power transistor devices in a dual 8-parallel push-pull arrangement
  • Latest low-noise instrumentation amplifier technology
  • MCS+ circuit and current feedback topology in amplification stage
  • Support for bridged use of two M-6200 units with even higher output power
  • Strong power supply with massive high-efficiency toroidal transformer and large filtering capacitors







    Continuous Average Output power (20-20,000 Hz)

    Normal mode:

    1200 watts into 1 ohm

    (1-ohm loads allowed with music signal only)

    600 watts into 2 ohms

    300watts into 4 ohms

    150 watts into 8 ohms

    Bridge mode (2 units):

    2400 watts into 2 ohms

    (2-ohm loads allowed with music signal only)

    1200 watts ito 4 ohms

    600 watts into 8 ohms



    Total Harmonic Distortion

    0.05% with a 2-ohm load

    0.03% with a 4 to 16-ohm load

    Intermodulation Distortion 0.01%
    Frequency Response

    At rated continuous average output: 20 - 20 000 Hz + 0 - 0.2dB

    At 1 watt output: 0.5 - 160000Hz +0 - 3.0dB

    Gain 28.0dB (GAIN selector in MAX position)
    Output Load Impedance

    Continuous output: 2 to 16 ohms

    With music signal: 1 to 16 ohms

    Damping factor 1 000
    Input Sensitivity ( with 8-ohm load)

    1.38 V for rated continuous average output

    0.11 V for 1 watt output

    Input Impedance

    Balanced: 40 kilohms

    Line: 20 kilohms

    Signal-to-Noise Ratio

    (A-weighted, with input shorted)

    127dB (GAIN selector in MAX position)

    133dB (Gain selector in  -12dB position)

    At rated continuous average output

    Output Level Meter



    -40dB to +3dB (dB / %indication)

    Logarithmic compression scale

    Display illumination off switch

    Peak hold time select: 3 seconds, infinite

    Power Requirements 120/220/230 V AC, 50/60 Hz
    Power Consumption

    100 watts idle

    575 watts in accordance with IEC 60065

    Maximum Dimensions

    Width: 465mm (183,1")

    Height: 228mm (86.6")

    Depth: 499mm (196.5")

    Mass

    40.2kg (88.6 lbs) net

    50.0kg (110.2 lbs) in shipping carton
