The Definitive Statement in Analogue Engineering | Available at Trimira Audio

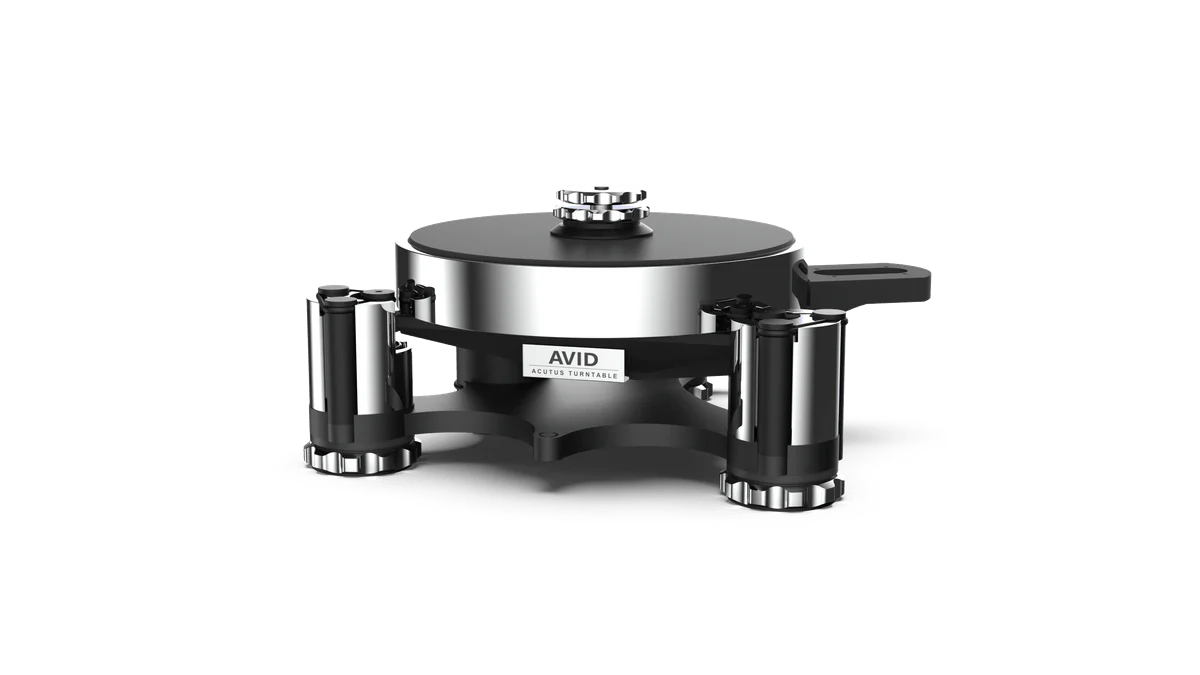

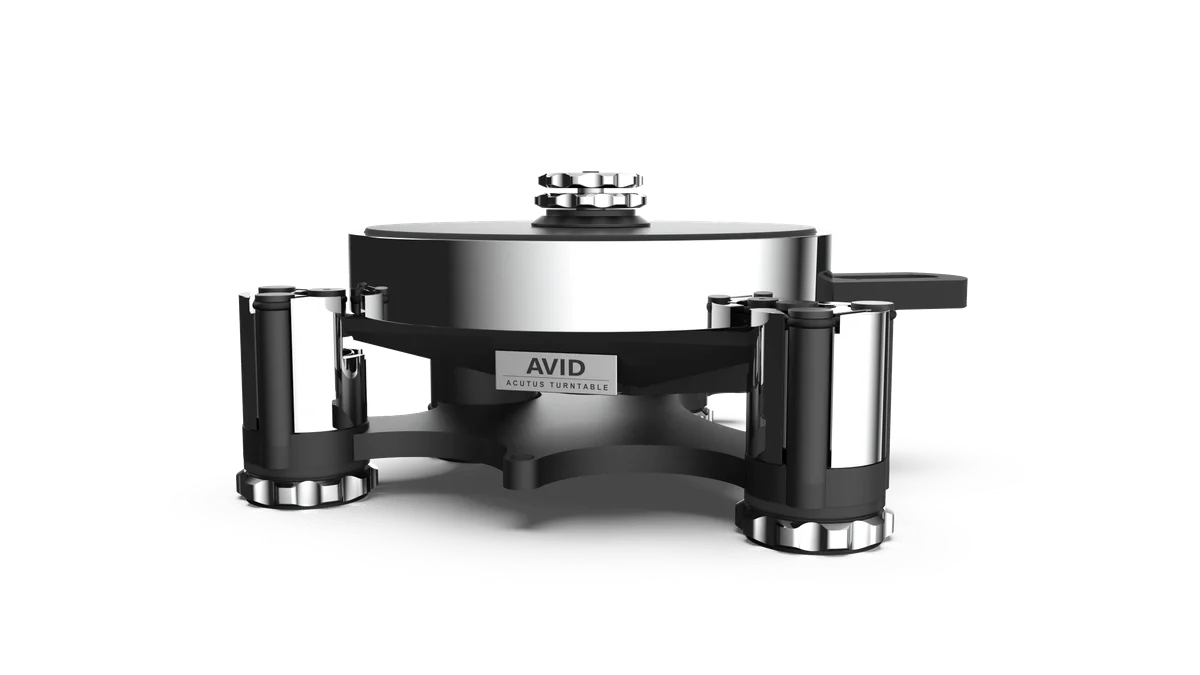

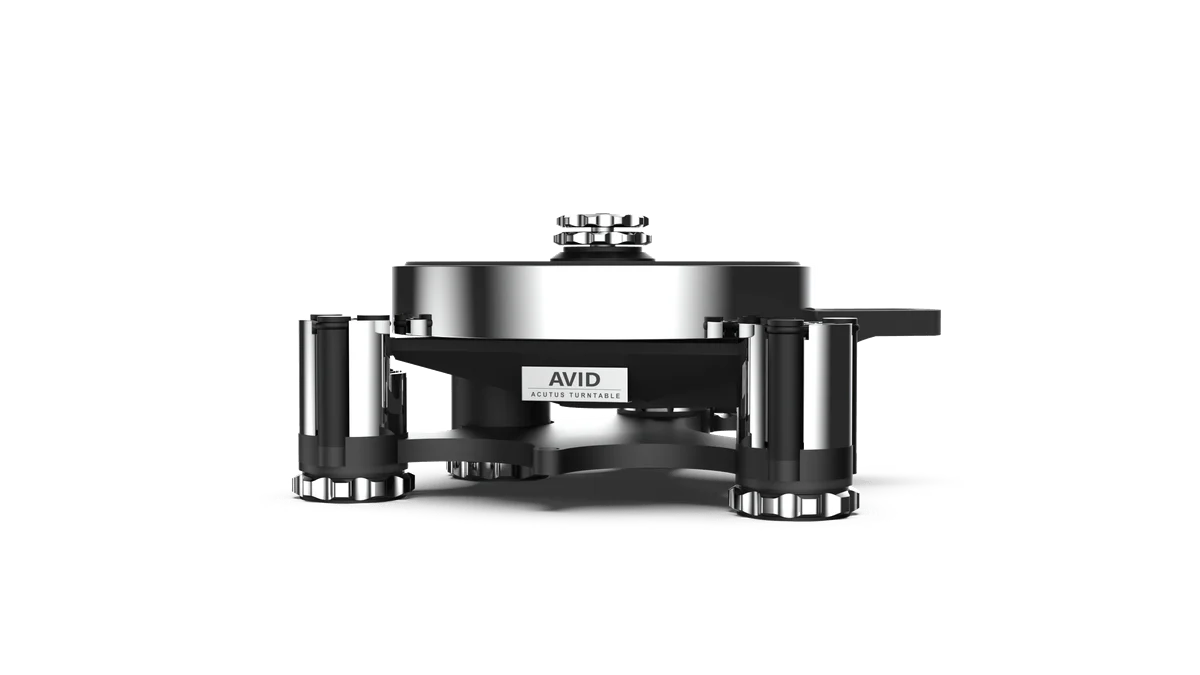

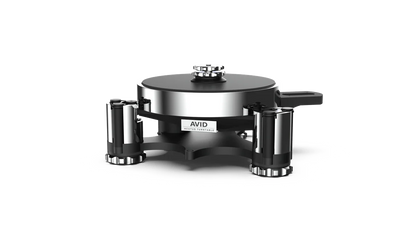

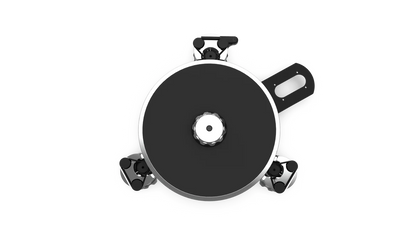

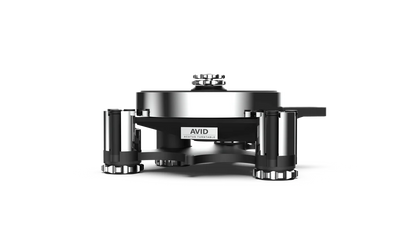

The AVID ACUTUS™ Classic Chrome Turntable represents the pinnacle of AVID HiFi’s analogue engineering philosophy, combining precision mechanical design, advanced vibration control, and exceptional rotational stability for reference-level vinyl playback.

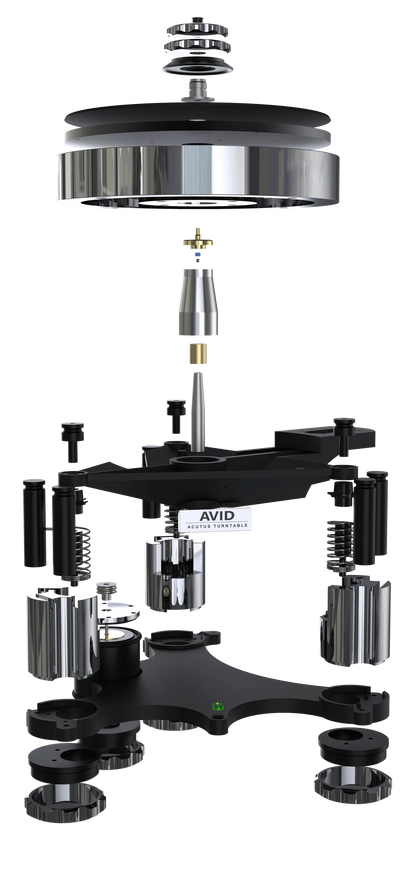

Handcrafted in Cambridgeshire, England, the Acutus Classic is engineered around a high-mass platter, advanced bearing system, suspended subchassis, and dedicated DSP-controlled motor drive. Every element is designed to minimise unwanted vibration, maintain accurate speed, and extract the finest musical detail from the record groove.
Featuring a 10 kg chrome-plated aluminium platter, inverted sapphire and tungsten bearing system, adjustable three-point suspension, and external DSP Vari-Speed power supply, the Acutus Classic delivers outstanding timing, dynamics, and analogue refinement.
Key Features & Technological Innovations
-

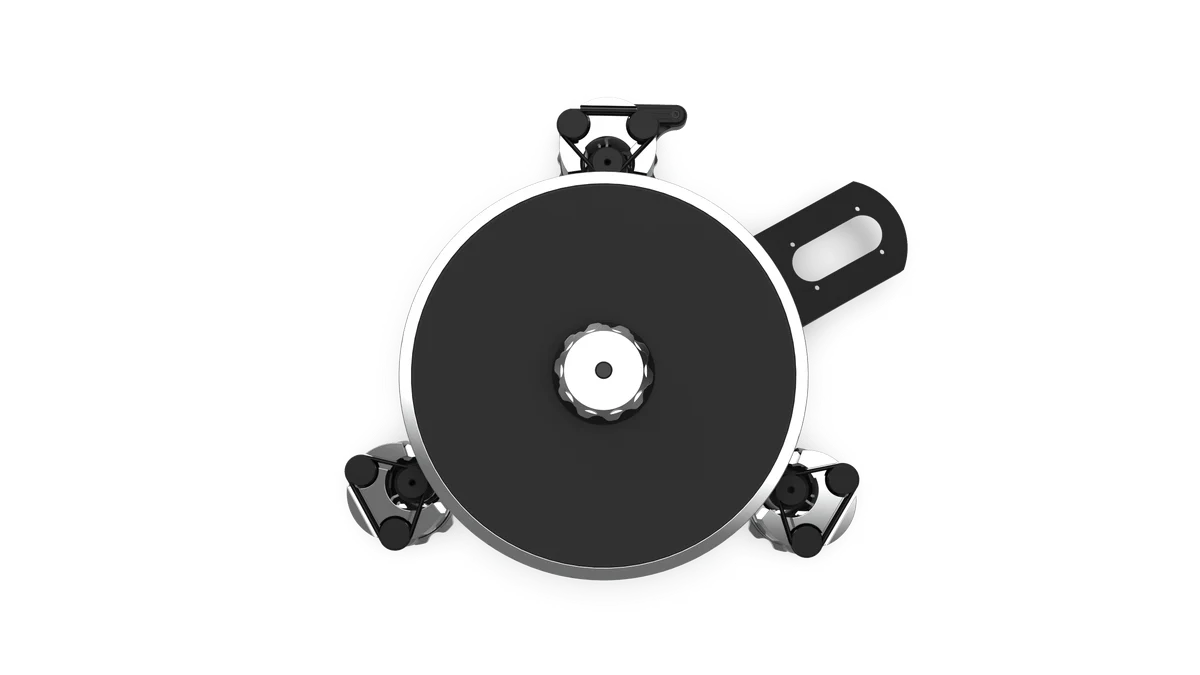

10 kg Chrome-Plated Aluminium Platter: High-mass precision platter with resin damping technology provides rotational stability while controlling unwanted resonance.
-

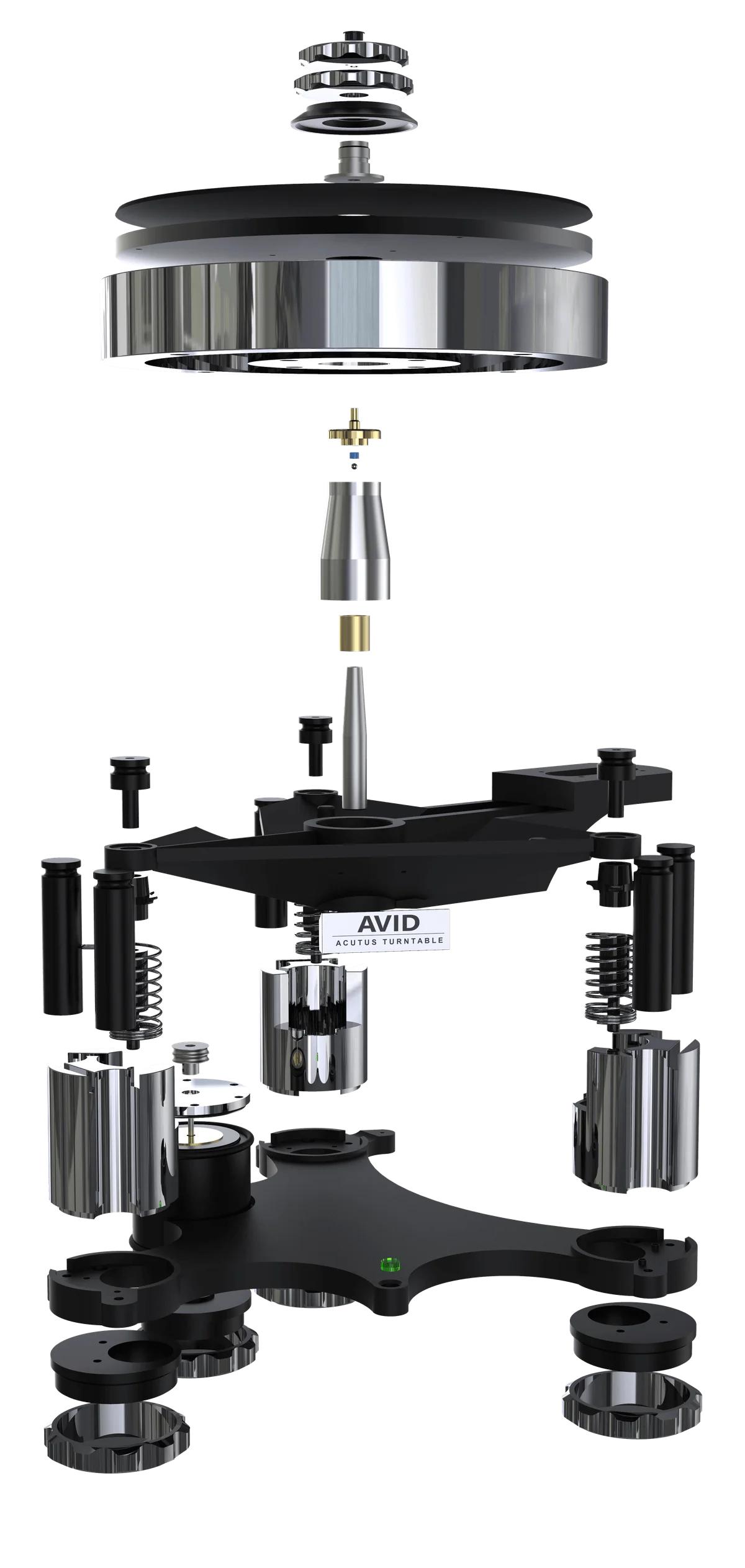

Inverted Sapphire & Tungsten Bearing: Advanced bearing design uses a tungsten carbide thrust point and sapphire jewel interface to minimise mechanical noise and maintain long-term precision.
-
Dual-Stage Record Clamping System: Improves vinyl coupling to the platter while helping reduce unwanted record movement and energy transfer.
-
Adjustable 3-Point Suspension: Tunable suspension system provides isolation from external vibration while supporting single or twin tonearm configurations.
-
Vibration-Tuned Cast Subchassis: Damped aluminium construction helps dissipate mechanical energy while maintaining structural rigidity.
-

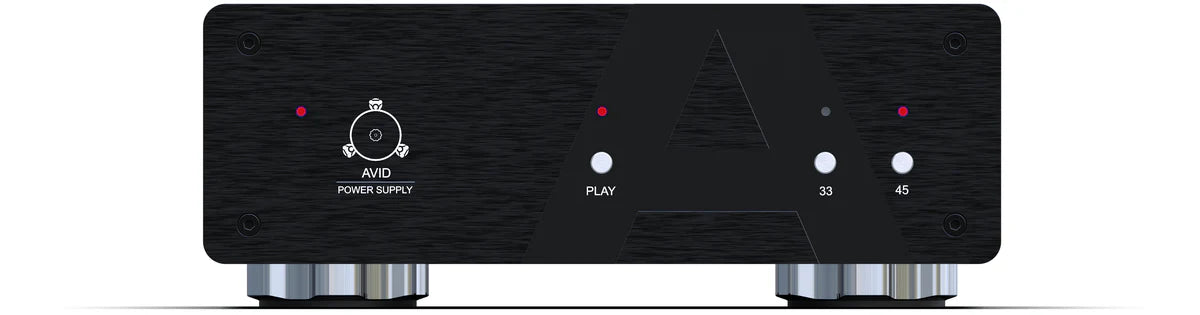

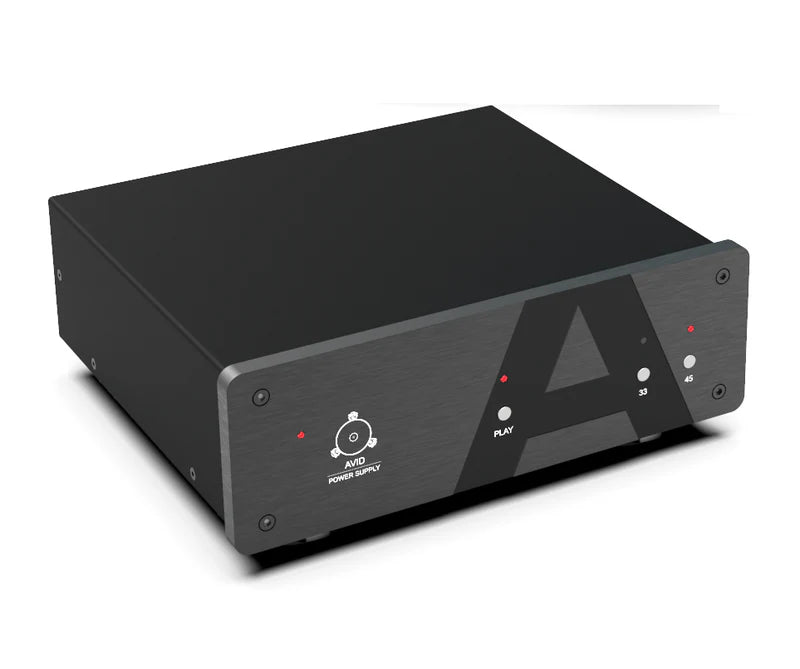

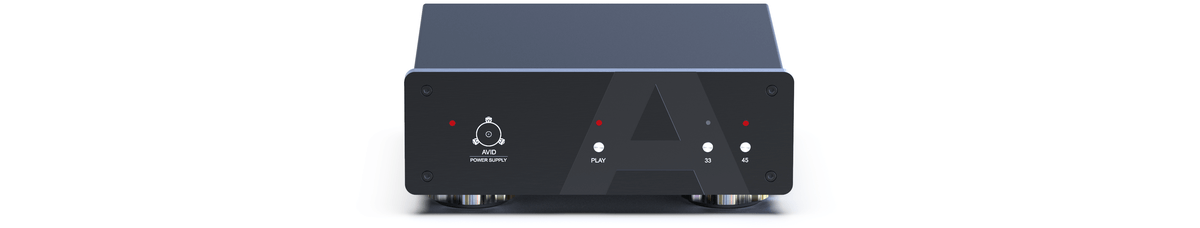

DSP Vari-Speed Control Unit: External power supply provides precise motor control, speed stability, and adjustable pitch control.
Technical Specifications
| Specification Metric |
AVID ACUTUS™ Classic Chrome Specification |
| Drive System |
Twin Round-Section Belt Drive |
| Speeds |
33.3 & 45.0 RPM (DSP Vari-Speed Adjustable) |
| Platter Mass & Material |
10.0 kg Chrome-Plated Aluminium with Cast Resin Mat |
| Bearing Assembly |
Inverted Stainless Steel Spindle |
| Thrust Point |
Tungsten Carbide Ball / Sapphire Jewel |
| Suspension |
3-Point Spring (Vertical 2.5Hz, Lateral 4.5Hz) |
| Tonearm Mounting |
SME Template (Single or Twin Tonearm Adapters Available) |
| Motor Type |
Hand-Built 24V 140mNm AC Synchronous Motor |
| Power Supply |
External DSP Vari-Speed Control Unit (100–240VAC) |

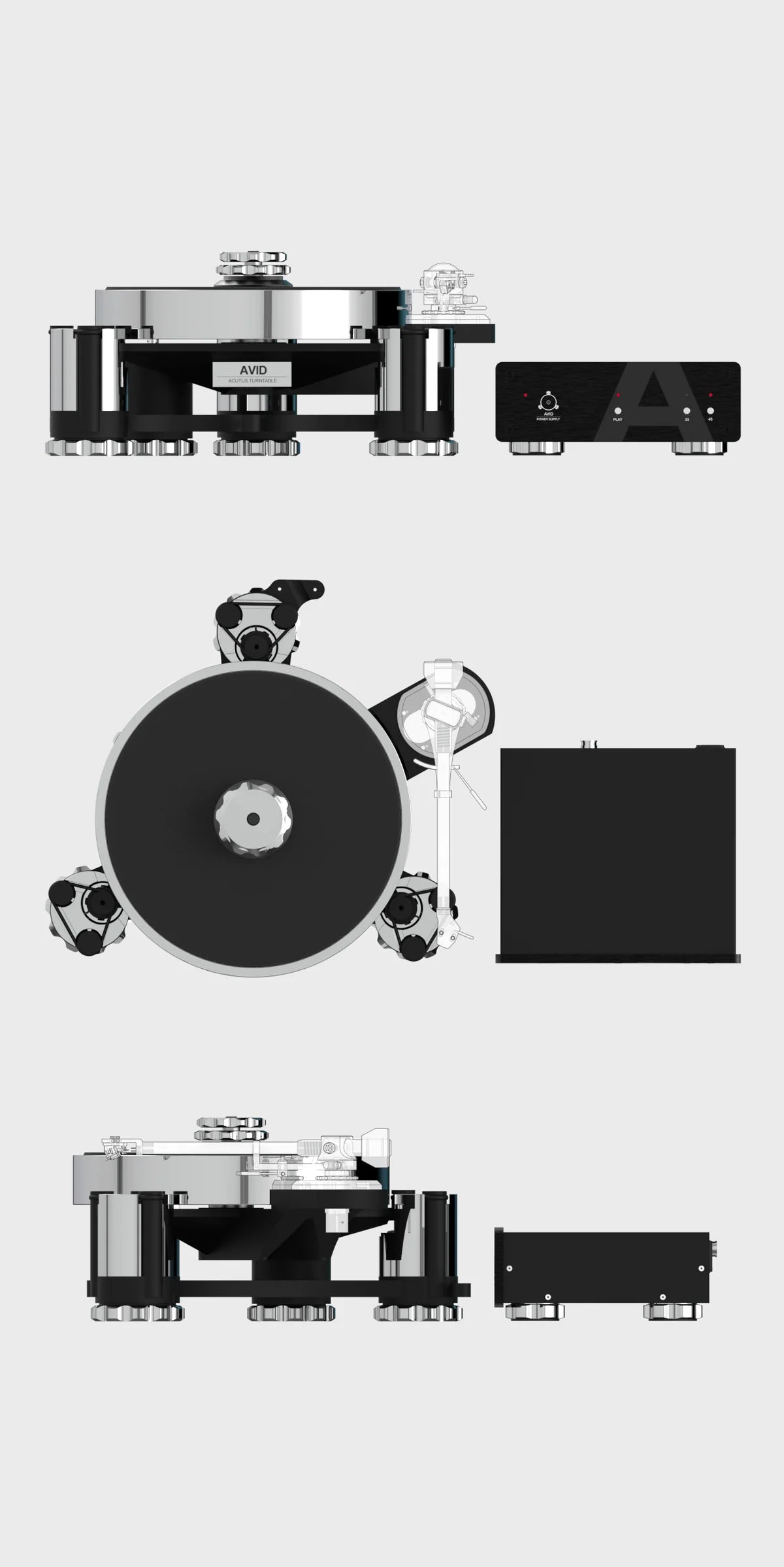

| Dimensions (Turntable Overall) |
460 mm × 400 mm × 210 mm (W × D × H) |
| Dimensions (Power Supply) |
250 mm × 215 mm × 95 mm (W × D × H) |
| Net Weight |
19.0 kg (Turntable) + 3.5 kg (Power Supply Unit) |
Consult with the High-End Analogue Specialists at Trimira Audio
Experience reference-level vinyl playback with the AVID ACUTUS™ Classic Chrome Turntable. Contact the analogue specialists at Trimira Audio in Brisbane to discuss tonearm and cartridge matching, phono stage pairing, or to schedule a private listening demonstration.
