Aavik R-180 High Performance RIAA Phono Preamplifier
- Regular price
- Regular price
- Sale price
- Unit price
Have a question?
Notified by email when this product becomes available
Ultra low noise, warm and detailed
Audiophiles love the sound of vinyl – The challenge is to treat subtle sonic signals with utmost care.
The Aavik range of phono stages have been developed to tease out the natural flow of music that is so typical of a vinyl-based sound source. Aavik conducted extensive research to gain a deeper understanding of the major challendes associated with turntable and cartridge systems. This research shaped the platform for the engineering solutions embedded in the Aavik phono stages.
The key strength of the Aavik RIAA is the sonic isolation of the ultra-low signals that emanate from the vinyl source, and the filtering out of any disturbing outside noise and vibration.
The Aavik RIAA section is based on a discrete, floating, balanced, ultra-low noise bipolar input circuit. The topology of a moving coil cartridge is a floating, balanced signal generator and Aavik has maintained this topology throughout the phono stage design.
The input circuitry allows use of ultra-low noise bipolar transistors. By paralleling several transistor pairs, Aavik has created an absolutely quiet input section. The phono stage has 62 dB gain, and the cartridge loading is adjustable from 50 Ohm to 5 kOhm. The signal to noise ratio is 94 dB measured at 1 kHz. The Aavik R range of phono stages will let you explore the amazing details and musical depths of your vinyl collection.
It was important to Aavik to facilitate extensive cartridge loading adjustment functionality so that each phono stage could be a perfect match for any MC cartridge. To get the highest efficiency from your turntable pick-up, the impedance can precisely be adjusted according to the individual MC cartridge.
The R-180 is the first model in the Aavik Phono Stage range and offers exceptional value, sharing much of its DNA & technology with the state-of-the-art D-580. It offers a great sound that is balanced, tonally correct, dynamic and highly musical. Open up a world of vinyl music!
PREMIUM TECHNOLOGIES FOR UNCONSTRAINED SIGNAL FLOW
Aavik heavily draw on the experience and extensive R&D of their sister company, Ansuz-Acoustics™. They employed their groundbreaking, effective noise cancelling technologies and fitted all models of their new range of electronics with Tesla coils, dither circuitry and anti aerial resonance coils. These innovative technologies are geared towards paving the way for an absolutely unconstrained signal flow. Aavik has also prepared the top and bottom surfaces on all Aavik series to best accommodate Ansuz Darkz™, which represent the most effective way of preventing mechanical vibrations.
RESONANT MODE POWER SUPPLY – QUIET BUT EXTREMELY POWERFUL
The new Aavik series is designed to ensure massive power resources with ultra-low noise. Unlike the square waves used by conventional switch mode power supplies, the new Aavik series boast a resonant mode design which is principally driven by sine waves. When more power is needed, the operating frequency increases, which, in turn, has the advantage that the power density also increases, thus allowing higher peak power when required by the music.
The noise floor in the raw power supply is extremely low but could be even further lowered by the ultra-low noise regulators supplying the different parts of the circuit. The noise of these regulators is measured in a few microvolts respectively nanovolts, which is significantly lower than the noise level of conventional regulators.
SCANDINAVIAN DESIGN AESTHETIC

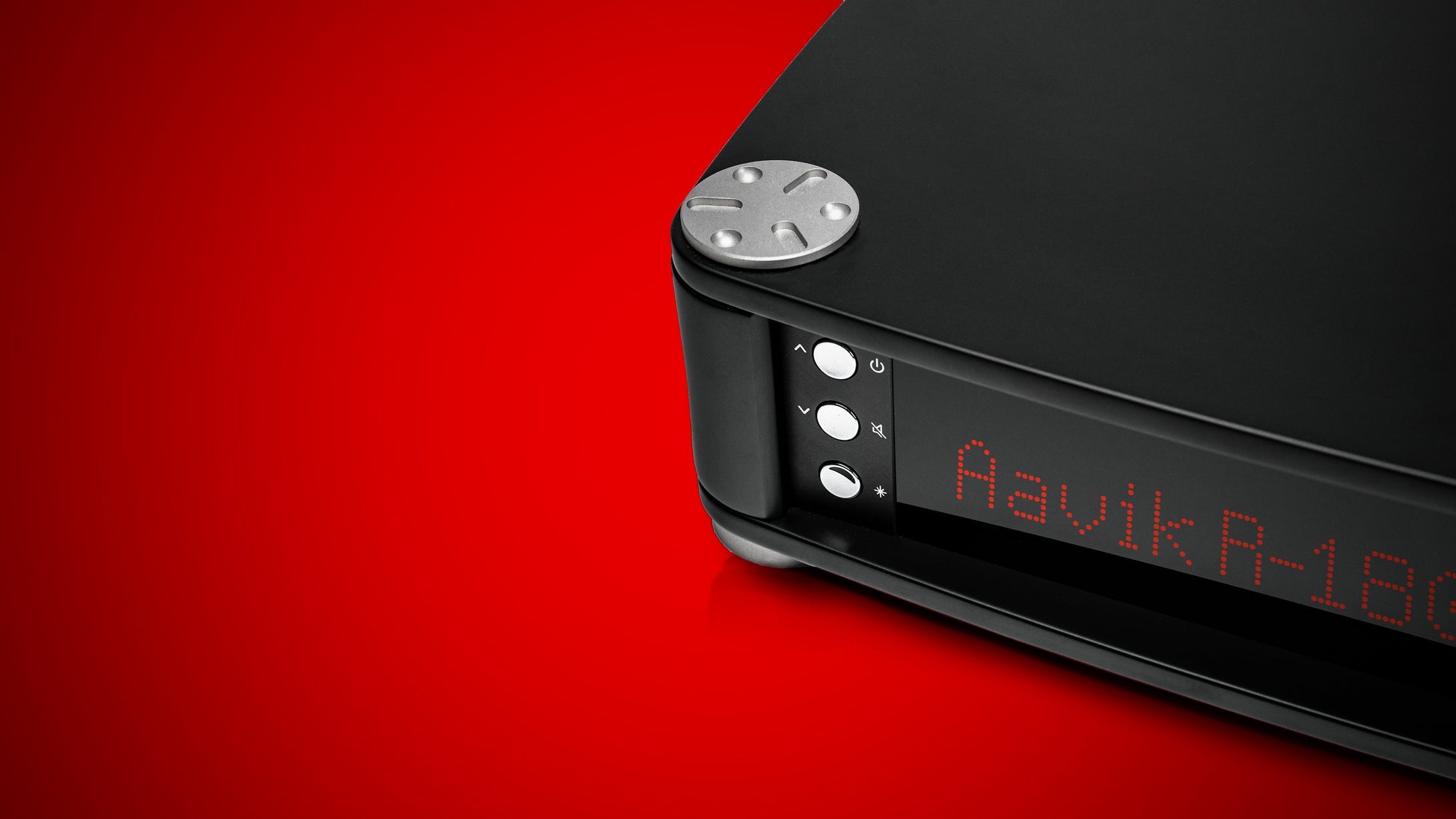

The Aavik design language is Scandinavian understatement and expresses simplicity and minimalism featuring only a few buttons for logical operation. The multifunctional main knob allows simple navigation and control of the various functions. A distinguishing design feature of the new Aavik series is a huge red display, which makes it easy to read all details of the selected operational settings.
A CABINET WITH EXCELLENT SONIC QUALITIES
Aavik have designed the enclosure to minimise the use of aluminium and its associated mechanical resonance. Over the years, Aavik have been testing various materials and ultimately designed an innovative natural-based composite material, which reduces the mechanical influence, particularly the hysteresis. The sonic result is distinctly audible and reflects a further prominent cornerstone in Aavik’s quest for the ultimate music experience.
The Aavik Phono Stage Range
Aavik have produced 3 levels of performance within the acclaimed R-180, R-280 and R-580. The R-180 represents great value with a high-end performance capability beyond its price level. The R-280 adds significantly more noise deduction techologies resulting in an even lower noise floor (quieter background), resolution and accuracy. The R-580 introduces the unique copper inner chassis, Titanium level resonance control, and the maximum Ansuz Acoustics resonance mitigation technology, taking performance to a statement level.
AAVIK 180, 280, 580 Series Quick Promotional Video
Ansuz Acoustics, Aavik Acoustics, Company Tour Pt. 2, tour the factory, making the amplifiers
|Type||Phono Stage Amplifier|
|Phono||Floating RCA (1 set)
Max input: 5mVrms
Gain 65dB @ 1 kHz
Load-impedance adjustable from 50 ohm to 10k ohm
Frequency Response +/-0.5 dB (20-20 kHz)
|Output||1 pair of RCA outputs
Distortion: <0.005% (THD at 1kHz, 0.5mV input)
Output impedance: 120 ohms
|Aavik Noise Reduction||Active Tesla Coils: 36
Active Square Tesla Coils: 104
Dither circuitry: 5
|Power consumption||Standby <0.5W
|Dimensions||102 x 384 x 380mm|
