Description

Accuphase

PS-530 Clean Power Supply

Every audio component draws all of its energy from the power supply which in turn is connected to the AC power grid. The Clean Power Supply components from Accuphase are products that remove noise and impurities from the AC power line through a groundbreaking new approach, resulting in a drastic improvement of the sound and picture quality of connected audio and video equipment. Without relying on an oscillator, the reference waveform is created with further improved accuracy and is linked to the power section by a balanced connection to ensure incredibly low distortion in the output waveform. The PS-530 can deliver as much as 510 VA, covering the requirements of most standard audio components.

  • AC voltage stabilizer based on waveform shaping technology
  • Acts as a source of extremely clean energy
  • Low-distortion reference waveform generator
  • Highly effective waveform compensation
  • Outstanding current capability
  • Superb interference rejection

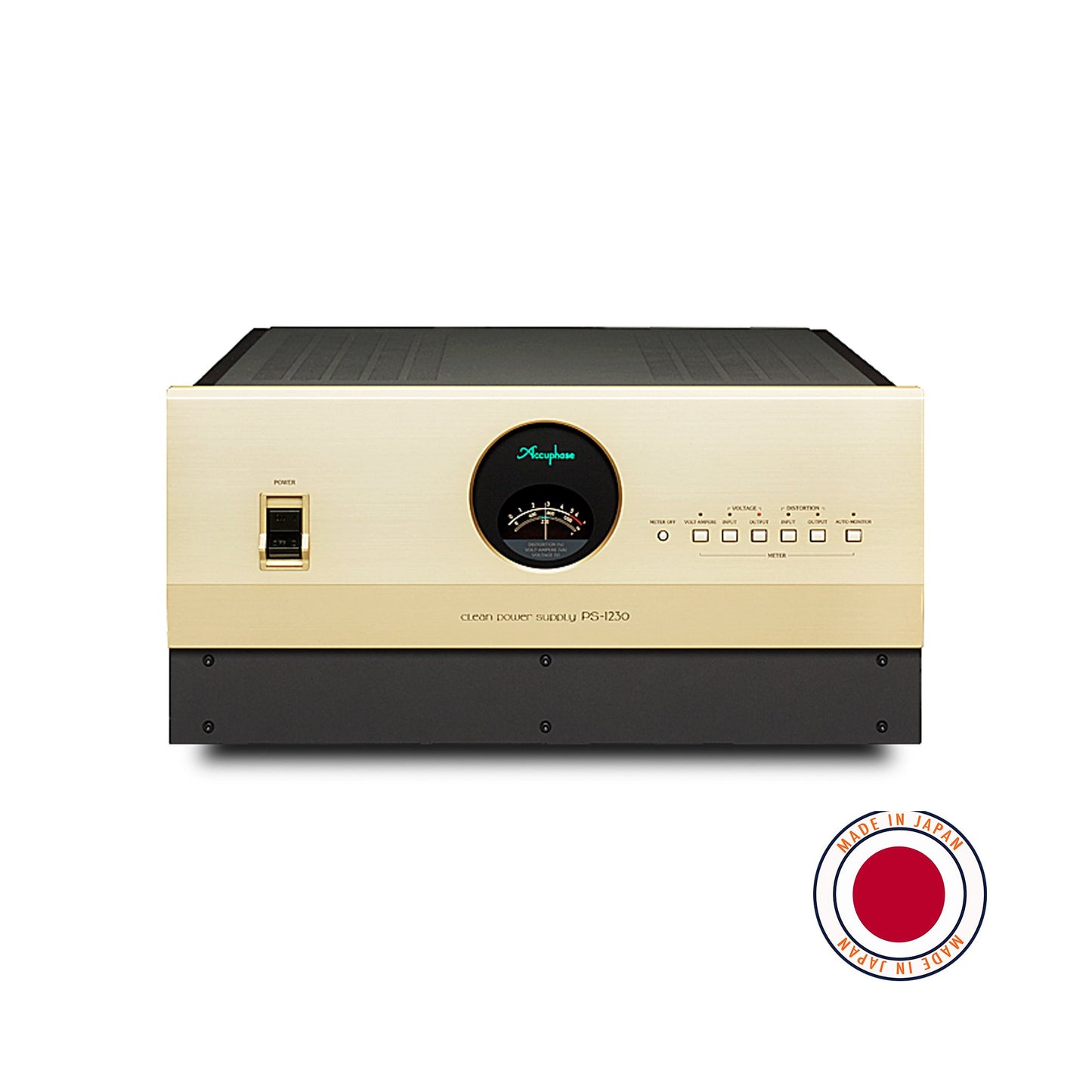

  • Built-in meter for monitoring vital parameters including output power, input/output voltage, and input/output distortion
  • Advanced protection features
  • Large high-efficiency toroidal transformer





Specification



  120 V version 230 V version
Rated output voltage
120 V AC ±1.5 V 230 V AC ±3.0 V
Rated output current
4.25 A 2.22 A
Output frequency 50 Hz or 60 Hz (identical to input frequency)
Instantaneous peak current capacity
80 A 40 A
Output waveform THD 0.08% or less

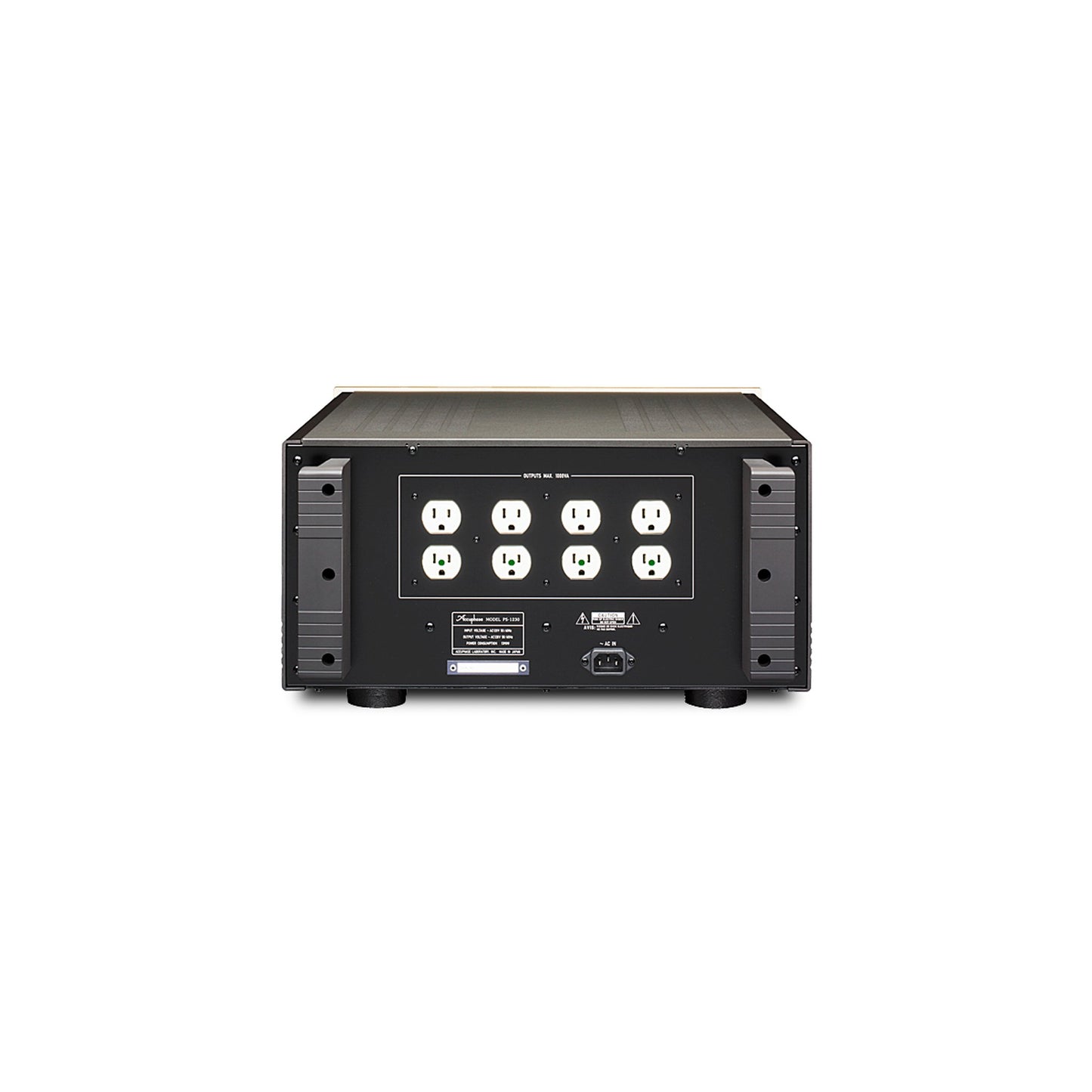

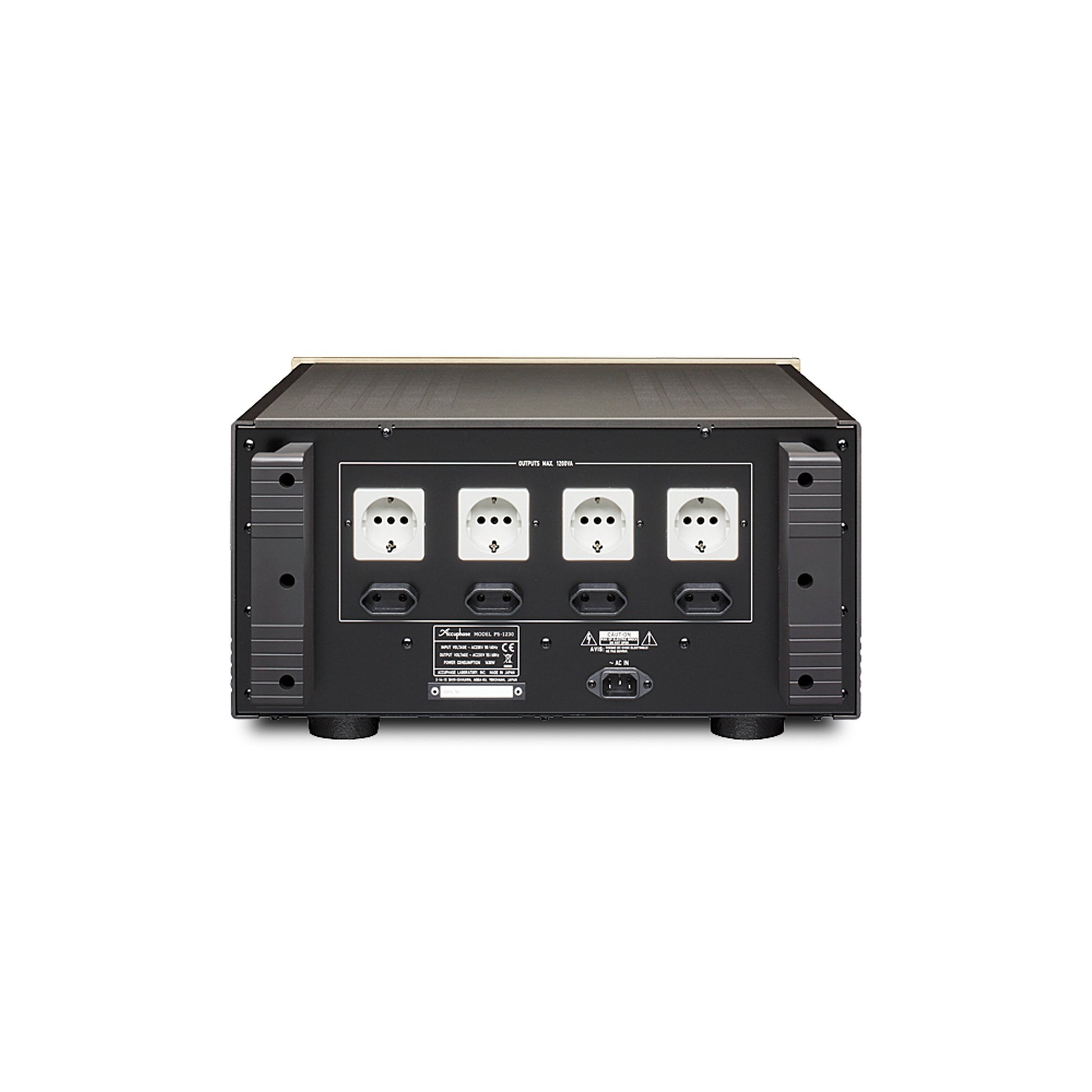

AC power outlets
8 outlets, on rear panel 6 outlets, on rear panel
Rated input voltage
120 V AC ±10% 230 V AC ±10%
Input frequency 50 Hz or 60 Hz
No-load power consumption
28W 37 W
Cooling principle Natural air cooling


Meter

 VOLT-AMPERE

0-510 VA

Meter function selector LEDs flash when overload occurs

 VOLTAGE INPUT/OUTPUT (green zone of scale)
120 V AC ±5% 230 V AC ±5%

DISTORTION INPUT/OUTPUT

0-6%

AUTO-MONITOR
Display cycles automatically from VOLT-AMPERE to DISTORTION OUTPUT, showing each mode for 5 seconds
Maximum Dimensions

Width 465 mm (18.31")

Height 181 mm (7.13")

Depth 386 mm (15.2")
Mass

24.0 kg (52.9 lbs.) net

30.0 kg (66.1 lbs.) in shipping carton
