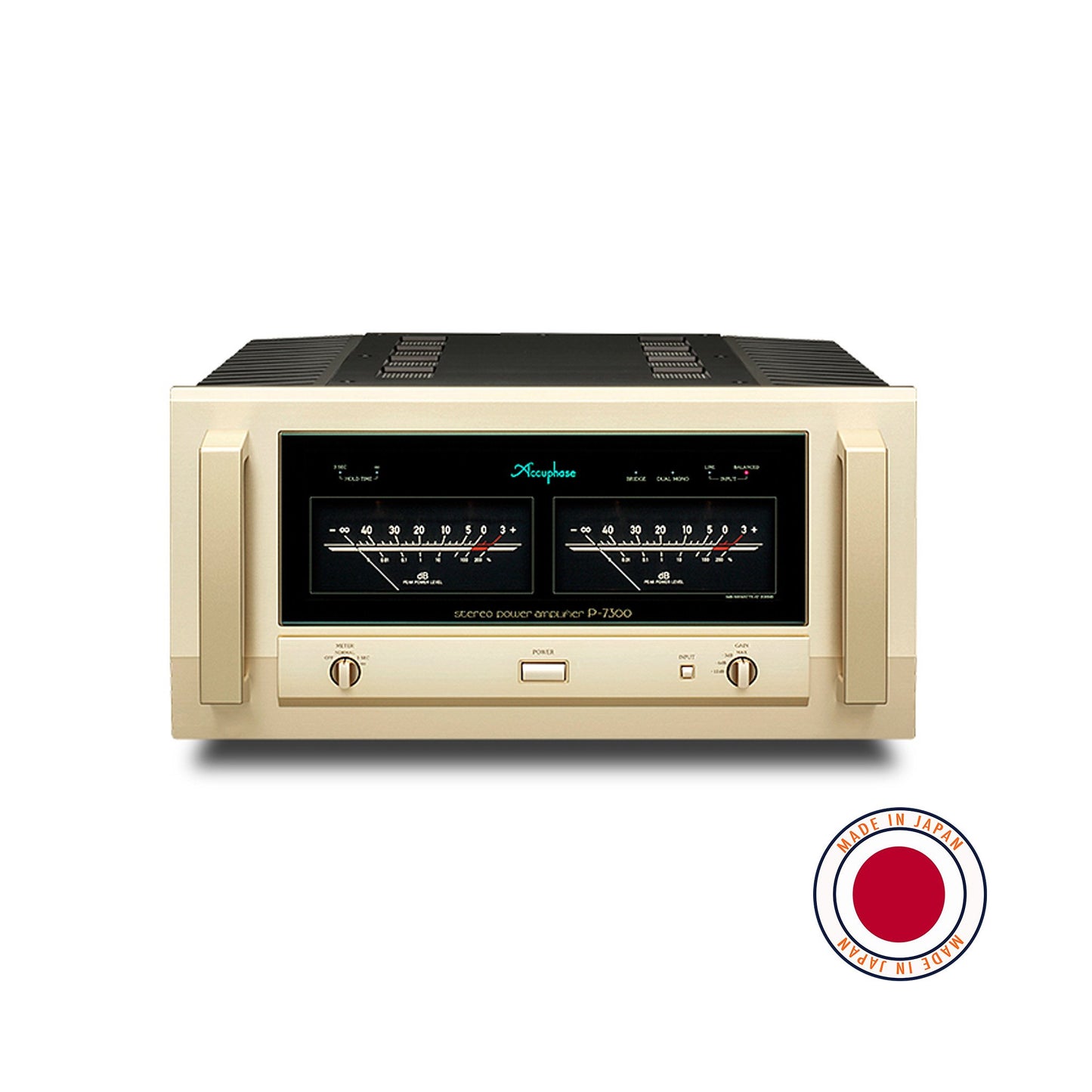

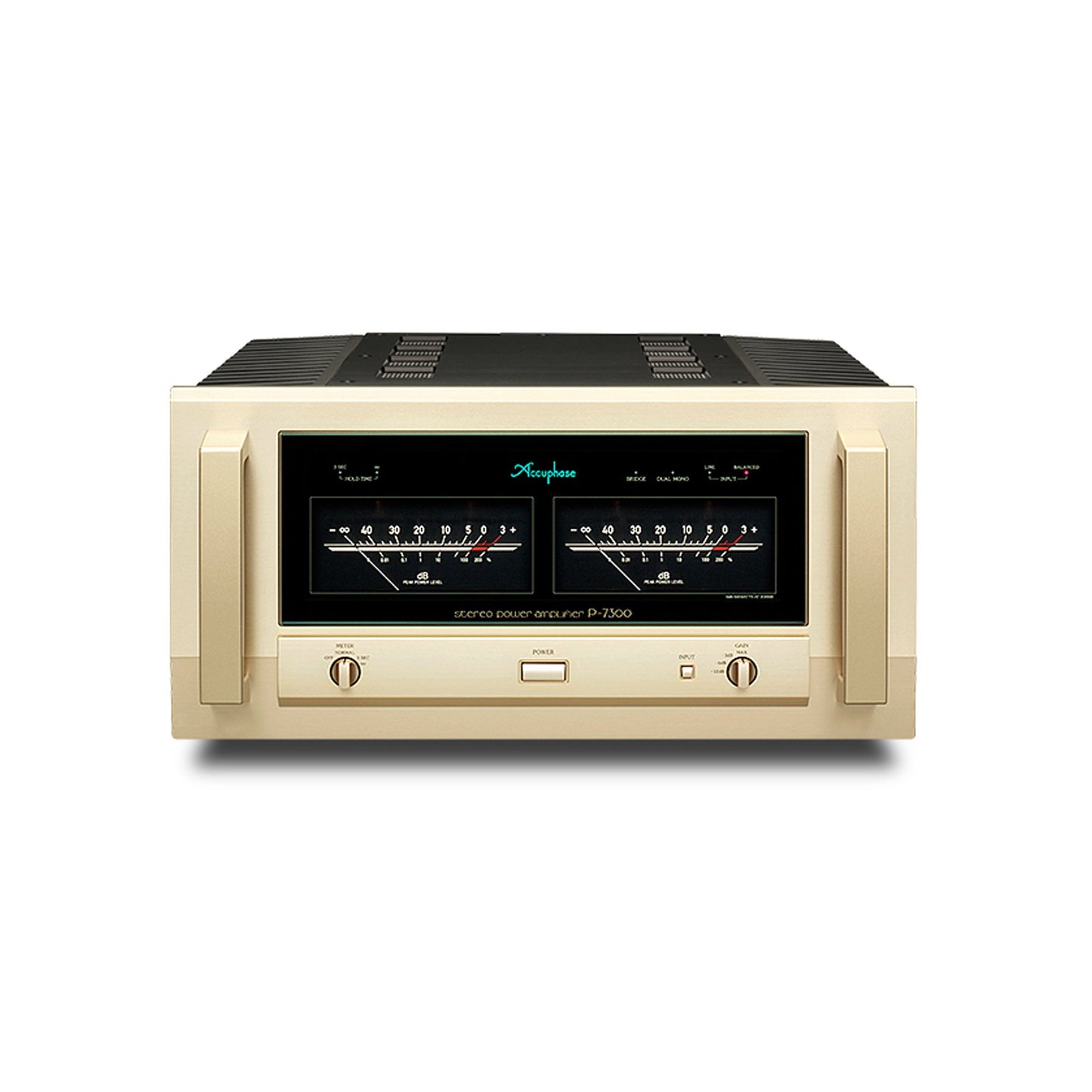

P-7300 Stereo Power Amplifier

Vendor: Accuphase
P-7300 Stereo Power Amplifier - Trimira
P-7300 Stereo Power Amplifier



P-7300 Stereo Power Amplifier

The P-7300 inherits technology features and concepts of the 40th anniversary commemorative model A-200 and subsequent M-6200 and takes these even further. Some of the highlights are a drastic reduction in noise and a significant further improvement of the damping factor.
In the final stage, the parallel configuration of output devices ensures high current capacity and keeps the output impedance of the power amplifier extremely low. In addition, intensive research has culminated in an improved NFB loop with remote sensing, and the use of MOS-FET switches characterized by low 'on-resistance'.
This further improves the ability to handle any speaker with competence, realizing constant-voltage drive even with extremely low load impedances. The guaranteed damping factor of at least 1,000 demonstrates the impressive success of this approach. In addition, by further refining the parallel drive and gain allocation of the input stage, Accuphase engineers were able to push the noise floor to previously unthinkable levels, achieving an amazing signal-to-noise ratio of 125 dB at maximum gain and 131 dB at the –12 dB gain setting.

  • Output stage with 10-parallel push-pull arrangement in each channel delivers ample power down to extremely low load impedances of 1 ohm
  • Amplification stage features low-noise instrumentation amplifier topology
  • Further refined MCS+ circuit
  • Current feedback principle combines excellent sound quality with total operation stability
  • Bridged connection mode allows upgrading to monophonic amplifier
  • 4-stage gain control
  • Newly developed massive toroidal transformer with high power capacity




      Continuous Average Output power (20-20,000 Hz)

      Stereo Operation (both channels driven:

      800 W/ch = 1-ohms load *

      500 W/ch = 2-ohms load

      250 W/ch = 4-ohms load

      125 W/ch = 8-ohms load

      Monophonic Operation:

      1600 watts = 2 ohms load*

      1000 watts = 4 ohms load

      500 watts =  8 ohms load


      Ratings marked. with * are for music signals only

      Total Harmonic Distortion

      Stereo operation ( both channels driven )

      0.05% with a 2-ohm load

      0.03% with a 4 to 16-ohm load

      Monophonic operation (bridged connection)

      0.05% with a 4 to 16 ohm load

      Intermodulation Distortion 0.01%
      Frequency Response

      At rated continuous average output: 20 - 20 000 Hz + 0 - 0.2dB

      At 1 watt output: 0.5 - 160000Hz +0 - 3.0dB


      28.0dB ( GAIN selector in MAX position)

      (Stereo/monophonic operation)

      Gain Selector


      -12dB, -6dB, -3dB, MAX
      Output Load Impedance

      Stereo Operation: 2 to 16 ohms

      Monophonic Operation: 4 to 16 ohms

      * With music signals only, 1-ohm loads are permissible for stereo operation and 2-ohm loads for monophonic operation.

      Damping factor 1 000
      Input Sensitivity ( with 8-ohm load)


      Stereo Operation

      1.26V for rated continuous average output

      0.11V for 1 watt output

      Monophonic Operation

      2.52V for rated continuous average output

      0.11V for 1 watt output

      Input Impedance

      Balanced: 40 Kilohms

      Line (unbalanced): 20 Kilohms

      Signal-to-Noise Ratio

      (A-weighted, with input shorted)

      125dB (GAIN selector in MAX position)

      131dB (Gain selector in  -12dB position)

      At rated continuous average output

      Output Level Meter

      -40 dB to +3dB (indication in dB and %)

      Logarithmic scale, with illumination off switch and sensitivity Peak hold time switchable 3s, infinite

      Power Requirements 120/220/230 V AC, 50/60 Hz (Voltage as indicated on rear panel)
      Power Consumption

      117 watts idle

      820 watts in accordance with IEC 60065

      Maximum Dimensions

      Width: 465mm (18.31")

      Height: 238mm (9.37")

      Depth: 515mm (20.28")


      48.6kg (107.2 lbs) net

      58.0kg (127.1 lbs) in shipping carton
