E-480 Integrated Amplifier
$999,999,999,999
Description
Specifications
Installation
Returns
Description
Accuphase

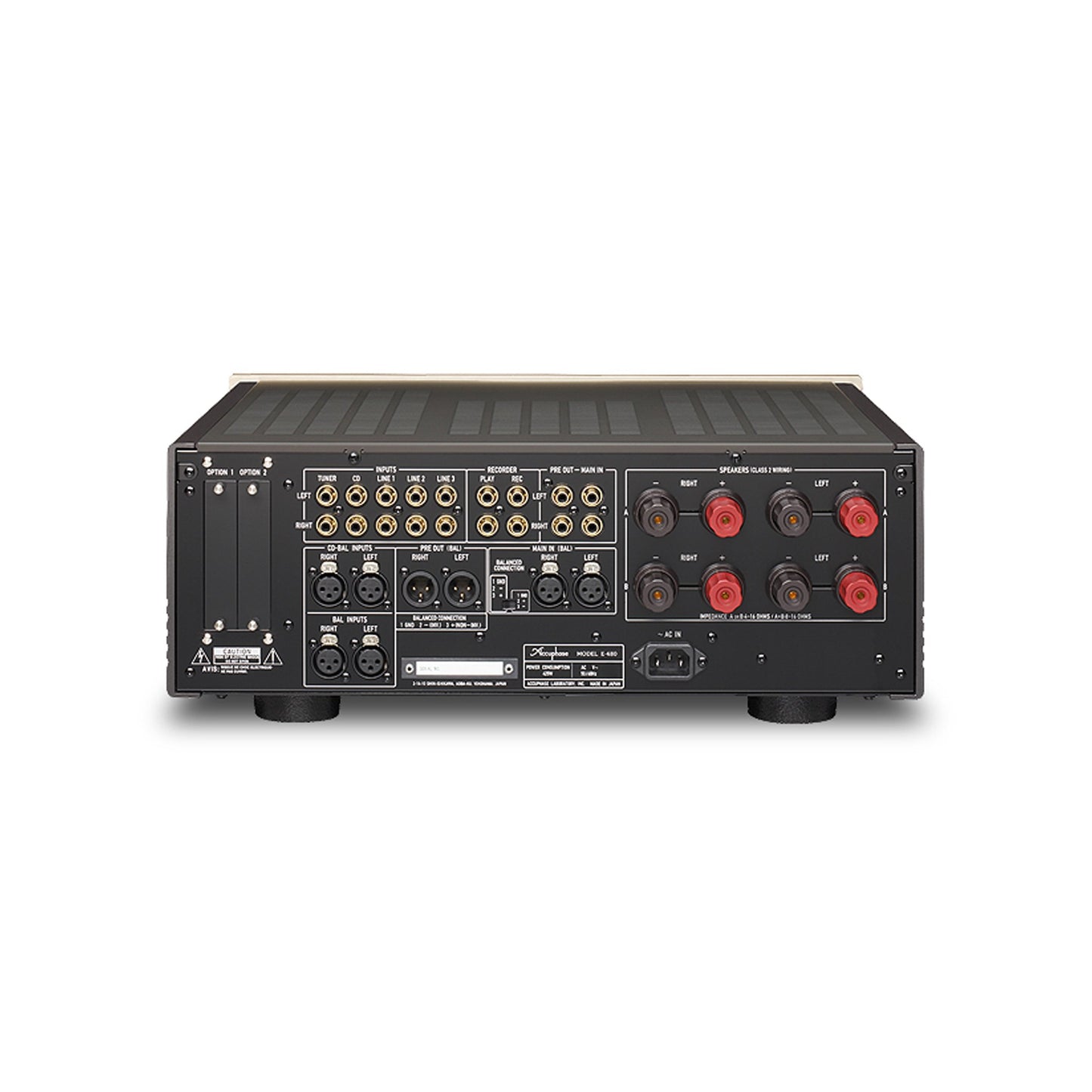

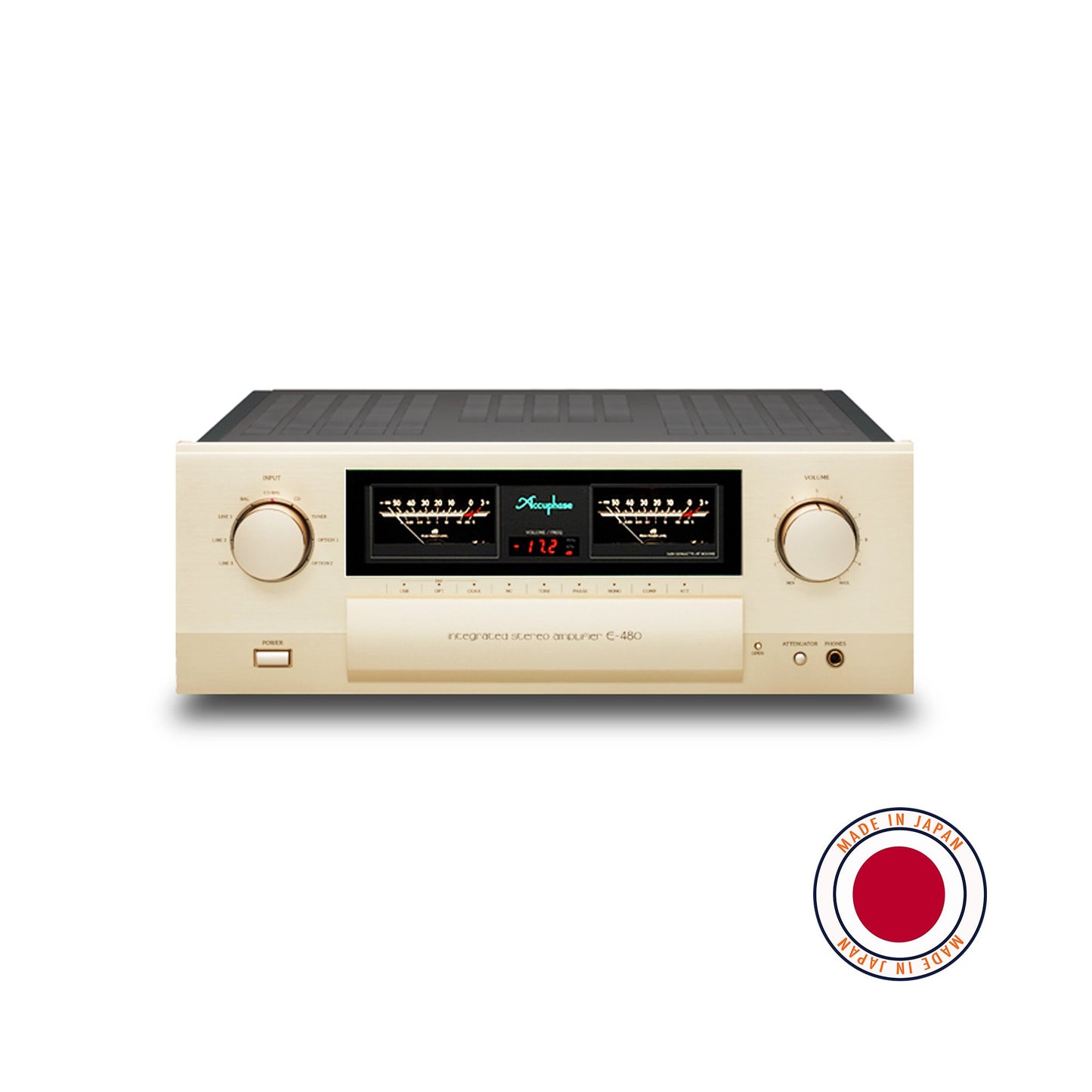

E-480 Integrated Amplifier
Preamplifier section features the latest implementation of AAVA volume control for further enhanced clarity. Instrumentation amplifier principle in power amplification stage allows fully balanced signal transmission and realizes top-notch S/N ratio. Balanced Remote Sensing enables low impedance of output circuitry, resulting in a damping factor of 600. Power amplification stage uses power MOS-FETs in triple parallel push-pull configuration, delivering 180 watts into 8 ohms for dynamic music enjoyment.
Revolutionary AAVA volume control
Power amplification stage with power MOS-FETs in triple parallel push-pull configuration
Rated output 180 watts into 8 ohms
Damping factor 600
Instrumentation amplifier principle in power amplification stage allows fully balanced signal transmission
MCS+ topology and current feedback in power amplification stage
Strong power supply with massive high-efficiency transformer and large filtering capacitors
Specifications
Rated Continuous Average Output Power (both channels operation simultaneously, 20-20000Hz)
Note: * 1-ohm operation possible with music signals only.
260 W/ch
4-ohm load *
180 W/ch
8-ohm load
60 W/ch
4-ohm load
30 W/ch
8-ohm load
Total Harmonic Distortion (both channels operating simultaneously, 20-20000Hz)
0.05%
4 to 16 ohm load
Intermodulation Distortion
0.01%
Frequency Response
HIGH LEVEL INPUT
At rated continuous average output: 20 - 20,000 Hz ＋0, –0.5 dB
MAIN IN
At rated continuous average output: 20 - 20,000 Hz ＋0, –0.2 dB
At 1 watt output: 3 - 150,000 Hz ＋0, –3.0 dB
Damping Factor
600 (with 8-ohm load, 50 Hz)
Input Sensitivity and impedance
Input
Input sensitivity
For rated output
For 1 Watt output (EIA)
Input impedance
HIGH LEVEL INPUT
190mV 14.2mV
20 kilohms
BALANCED INPUT
190mV 14.2mV
40 kilohms
MAIN IN LINE
1.51V 113mV
20 kilohms
MAIN IN BAL
1.51mV
113mV
40 kilohms
Output voltage Impedance
PRE OUTPUT 1.51V 50 ohms (at rated continuous average output)
Gain
HIGH LEVEL INPUT → PRE OUTPUT: 18 dB
MAIN IN → OUTPUT: 28 dB
Tone Controls
Turnover frequency and adjustment range
BASS: 300 Hz ±10 dB (50 Hz)
TREBLE: 3 kHz ±10 dB (20 kHz)
Loudness compensator
+6dB (100Hz)
Attenuator
-20dB
S/N Ratio,
Input-converted Noise
Input
S/N ratio at rated output
(A-weighted, with input shorted)
S/N ratio (EIA)
HIGH LEVEL INPUT
109dB
97dB
BALANCED INPUT
102dB
97dB
MAIN IN
125dB
101dB
Power Meter
Logarithmix type peak level display of output in dB or percent
* With meter on/off switching function
Output Load Impedance
4 to 16 ohms
Stereo Headphones
Suitable impedance: 8 ohms or higher
Power Requirements
120 V/220 V/230 V AC, 50/60 Hz (Voltage as indicated on rear panel)
Power Consumption
93W idle
425W in accordance with IEC 60065
Maximum Dimensions
Width 465 mm ( 18.31")
Height 181 mm ( 7.13")
Depth 428 mm (16.85'')
Mass
24.6 kg (54.2 lbs) net
31.0 kg (68.3 lbs) in shipping cart
