E-380 Integrated Stereo Amplifier
$999,999,999,999
Description
Specification
Installation
Returns
Description
Accuphase

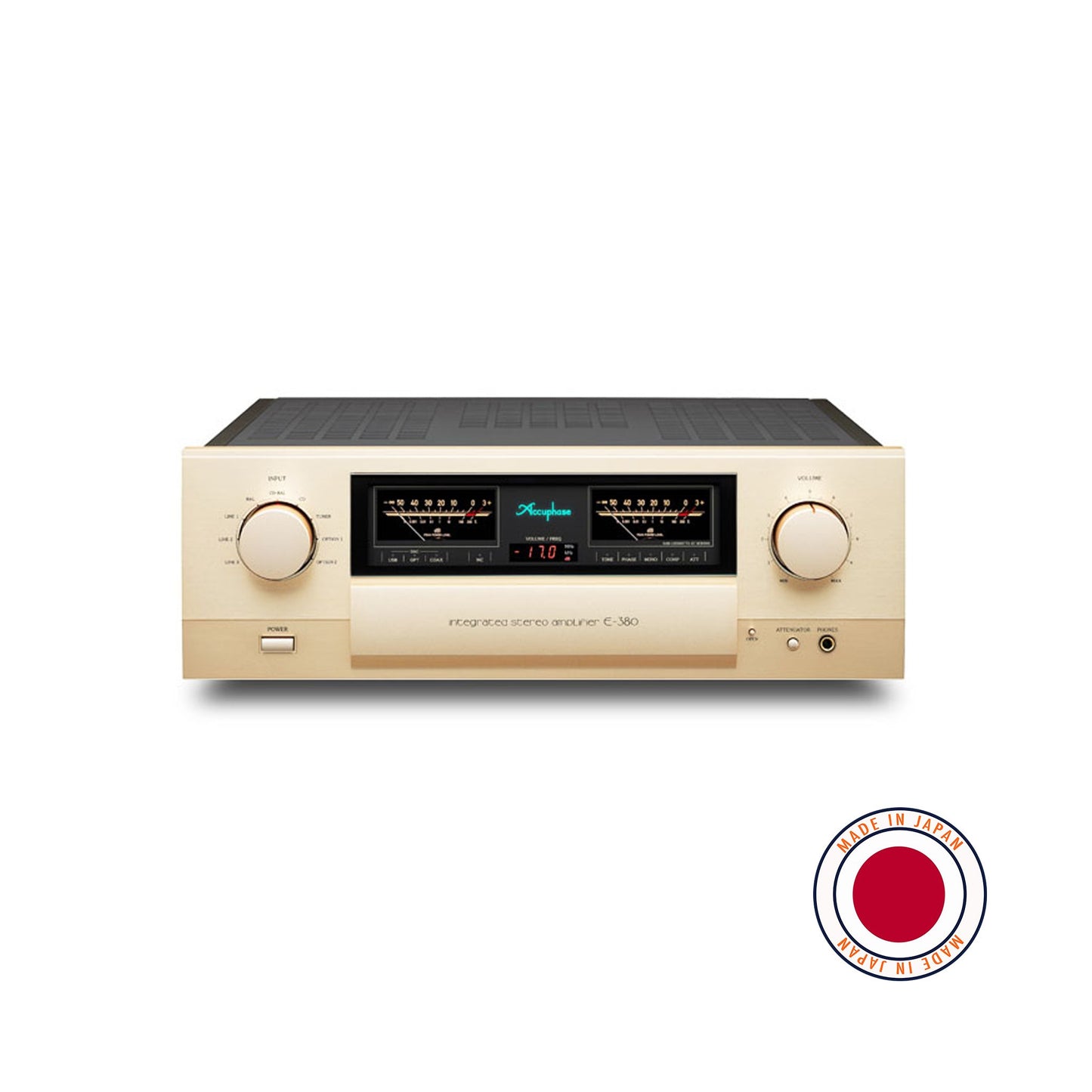

E-380 Integrated Stereo Amplifier
The E-380 realizes a20% increase in rated output power thanks to a reinforced power amplification stage and power supply. The further evolved AAVA volume control system allows music enjoyment at any level without even the slightest degradation of signal quality. The power amplifier section utilizes the instrumentation amplifier principle to achieve outstanding S/N ratio. Low impedance design of the output circuitry results in a damping factor of 500, ensuring that the potential of every speaker can be brought out to the fullest. Enjoy a musical performance of amazing transparency and dynamism.
AAVA volume control
Power amplification stage with bipolar transistors in double parallel push-pull configuration
Rated for 180 watts into 4 ohms and 120 watts into 8 ohms
High damping factor of 500
Power amplification stage configured as instrumentation amplifier
Current feedback amplification topology in power amplification stage
Logic-control relays for shortest signal paths
Strong power supply with massive high-efficiency transformer and large filtering capacitors
Protection circuitry using MOS-FET switches
Specification
Continuous Average Output Power
(20 - 20,000 Hz)
(both channels driven)
8-ohm load
4-ohm load
120W
180W
THD
(20 - 20,000 Hz)
(both channels driven)
4 to 16 ohm load
0.05%
Intermodulation Distortion
0.01%
Frequency Response
HIGH-LEVEL INPUT
At rated continuous average output: 20 - 20,000 Hz ＋0, –0.5 dB
MAIN IN
At rated continuous average output: 20 - 20,000Hz (+0, -0.2 dB)
At 1 watt output: 3 - 150,000 Hz ＋0, –3.0 dB
Damping Factor
500 (with 8-ohm load, 50 Hz)
Input Sensitivity and impedance
Input
Input sensitivity
For rated output
For 1 Watt output (EIA)
Input impedance
HIGH LEVEL INPUT
155 mV 14.2mV
20 kilohms
BALANCED INPUT
155mV 14.2mV
40 kilohms
MAIN IN
1.23V 113mV
20 kilohms
Output voltage Impedance
PRE OUTPUT 1.23 V 50 ohms (at rated continuous average output)
Gain
HIGH LEVEL INPUT → PRE OUTPUT: 18 dB
MAIN IN → OUTPUT: 28 dB
Tone Controls
Turnover frequency and adjustment range
BASS: 300 Hz ±10 dB (50 Hz)
TREBLE: 3 kHz ±10 dB (20 kHz)
Loudness compensator
+6dB (100Hz)
Attenuator
-20dB
S/N Ratio,
Input-converted Noise
Input
S/N ratio at rated output
(A-weighted, with input shorted)
S/N ratio (EIA)
HIGH LEVEL INPUT
109dB
99dB
BALANCED INPUT
98dB
98dB
MAIN IN
124dB
102dB
Power Meters
Logarithmic type peak level display of output in dB or percent
Output Load Impedance
4 to 16 ohms (terminals A or B driven)
8 to 16 ohms (terminals A and B driven simultaneously)
Stereo Headphones
Suitable impedance: 8 ohms or higher
Power Requirements
120 V/220 V/230 V AC (Voltage as indicated on rear panel), 50/60 Hz
Power Consumption
46W idle
292W in accordance with IEC 60065
Maximum Dimensions
Width 465 mm ( 18.31")
Height 171 mm ( 6.73")a
Depth 422 mm (16.61'')
Mass
22.8 kg (50.3 lbs) net
29.0 kg (63.9 lbs) in shipping cart
