DP-560 MDS SA-CD Player

Newly designed next-generation SA-CD/CD drive combined with exquisite disc tray and ultra-quiet disc loading mechanism for silky smooth operation. Innovative MDS+ type D/A converter using four parallel DAC circuits ensures highly accurate D/A conversion of DSD and PCM signals. Separate configuration of transport and processor sections, each equipped with a set of HS-LINK, coaxial, optical, and USB (input only) connectors. USB connector provides support up to 384 kHz/32-bit and 11.2896 MHz/1-bit DSD.

  • High-grade SA-CD/CD drive.
  • MDS+ type D/A converter with four parallel devices.
  • Support for playback of data discs (CD-R/-RW, DVD-R/-RW/+R/+RW).
  • Direct Balanced Filter with separate line and balanced signal paths.

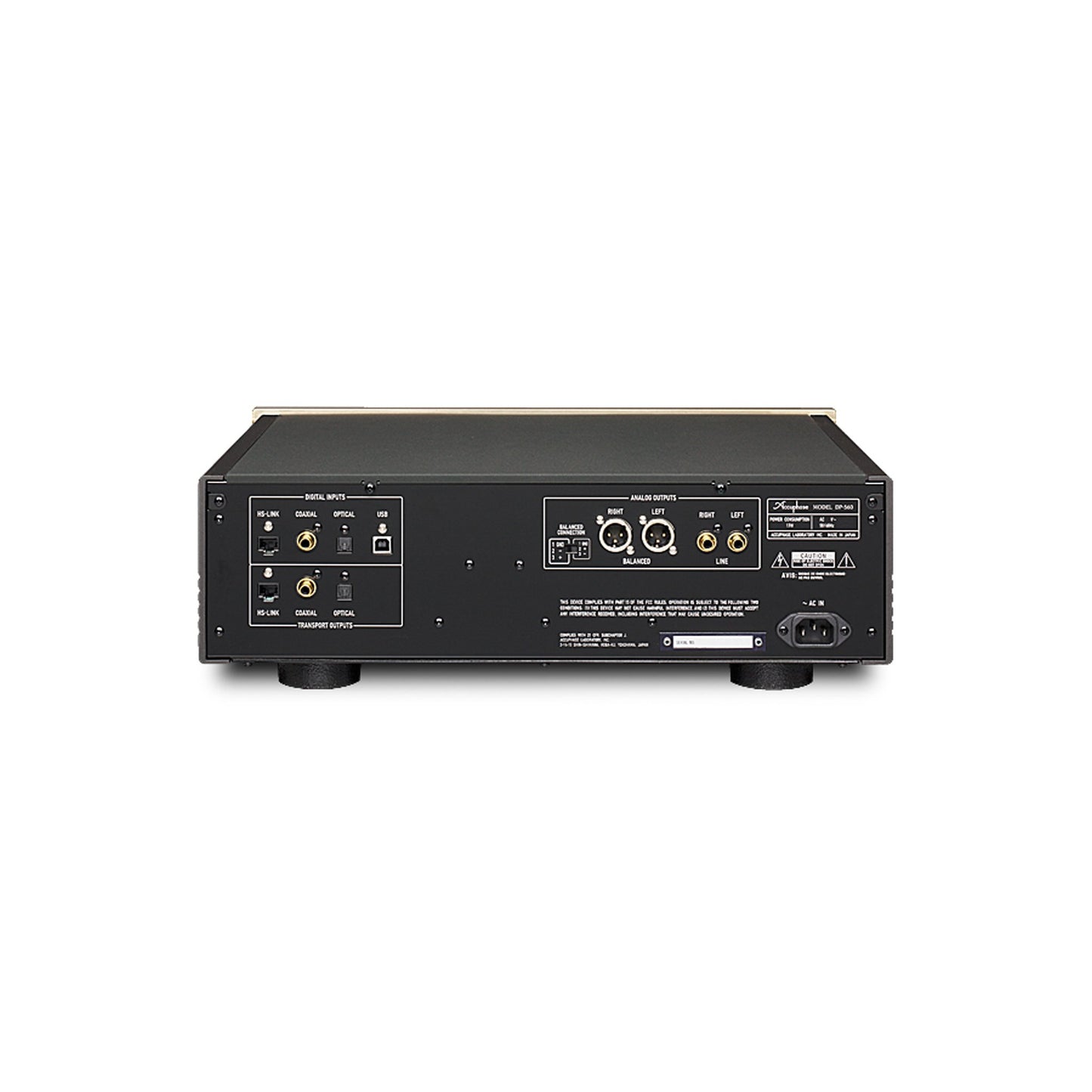

  • HS-LINK and USB digital interfaces.
  • Transport outputs and digital inputs allow insertion of DG-58 into signal path for sound field correction Phase selector for balanced outputs.
  • Sampling frequency and quantization bit display.



Transport Section
Compatible Disc Format

2-channel Super Audio CD (SA-CD)
DSD Disc DVD-R/-RW/+R/+RW (DSF File Format)
Data Disc CD-R/-RW, DVD-R/-RW/+R/+RW
(Supported Formats: WAV, FLAC, DSF, DSDIFF)

Data Read Principle

Non-contact optical pickup

Laser Diode Wavelength
 SA-CD 655 nm
CD 790 nm


Transport Outputs
Connector Type  RJ-45
Suitable Cable Dedicated HS-LINK cable


Format IEC 60958 compliant
 Format JEITA CP-1212 Compliant
Digital Processor Section
Digital Inputs
Connector type RJ-45
Suitable Cable Dedicated HS-LINK cable
Format IEC 60958
Suitable cable 75-ohm coaxial digital cable
Format JEITA CP-1212 compliant
Suitable cable JEITA standard optical fiber cable
Format USB2.0 Hi-speed
(480Mbps) compliant
Suitable cable USB2.0 cable
Sampling Frequency


(*: only with HS-LINK Ver.2)

32kHz to192kHz, *352.8kHz, *384kHz (16 to 32-bit 2-channel PCM)

2.8224MHz, *5.6448MHz (1-bit 2-channel DSD)


32kHz to 96kHz, (16 to 24-bit 2-channel PCM)


32kHz to 384kHz (16 to 32-bit 2-channel PCM)

2.8224MHz, 5.6448MHz, 11.2896 MHz (1-bit 2-channel DSD)
(11.28966MHz: ASIO only)

D/A Converter 4MDS+ principle
Frequency Response 0.5 to 50,000Hz +0, -3.0dB
Total Harmonic Distortion 0.0006% (20 to 20,000Hz)
Signal-to-noise ratio 119dB
Dynamic Range 116dB
Channel Seperation 117dB
Output Voltage and Impedance
BALANCED: 2.5V 50ohms, balanced XLR type
LINE:             2.5V 50ohms, RCA phono jack
Output Level Control 0dB to -80.0dB in 1-dB steps (digital)
Power Requirements AC120 V/220 V/230 V (Voltage as indicated on rear panel) 50/60Hz
Power Consumption 18W
Max. DImensions

Width 465mm (18.3 in)

Height 151mm (5.9 in)

Depth 393mm (15.5 in)


18.8kg (41.5 lbs) net

25.0kg (55.1 lbs) in shipping carton



  • This product is available in versions for 120/220/230V AC. Make sure that the voltage shown on the rear panel matches the AC line voltage in your area.
  • The 230V version has an Eco Mode that switches power off after 120 minutes of inactivity.
  • THe shape of the AC inlet and plug of the supplied power cord depends on the voltage rating and destination country.
