DG-58 Digital Voicing Equalizer

Vendor: Accuphase
DG-58 Digital Voicing Equalizer - Trimira
DG-58 Digital Voicing Equalizer



DG-58 Digital Voicing Equalizer

In 1997, Accuphase introduced a product which revolutionized the concept of the graphic equalizer and made headlines in the audio world:
The DG-58 Digital Voicing Equalizer now raises the bar again. It is a 4th generation product that reflects the state of the art of advanced signal processing technology developed by Accuphase. Ease of operation has also been enhanced, with two “Simple Voicing” courses for automatic measurement and compensation, as well as a “Custom Voicing” course that gives users the power to realize a specific acoustic concept through extensive control over all aspects.

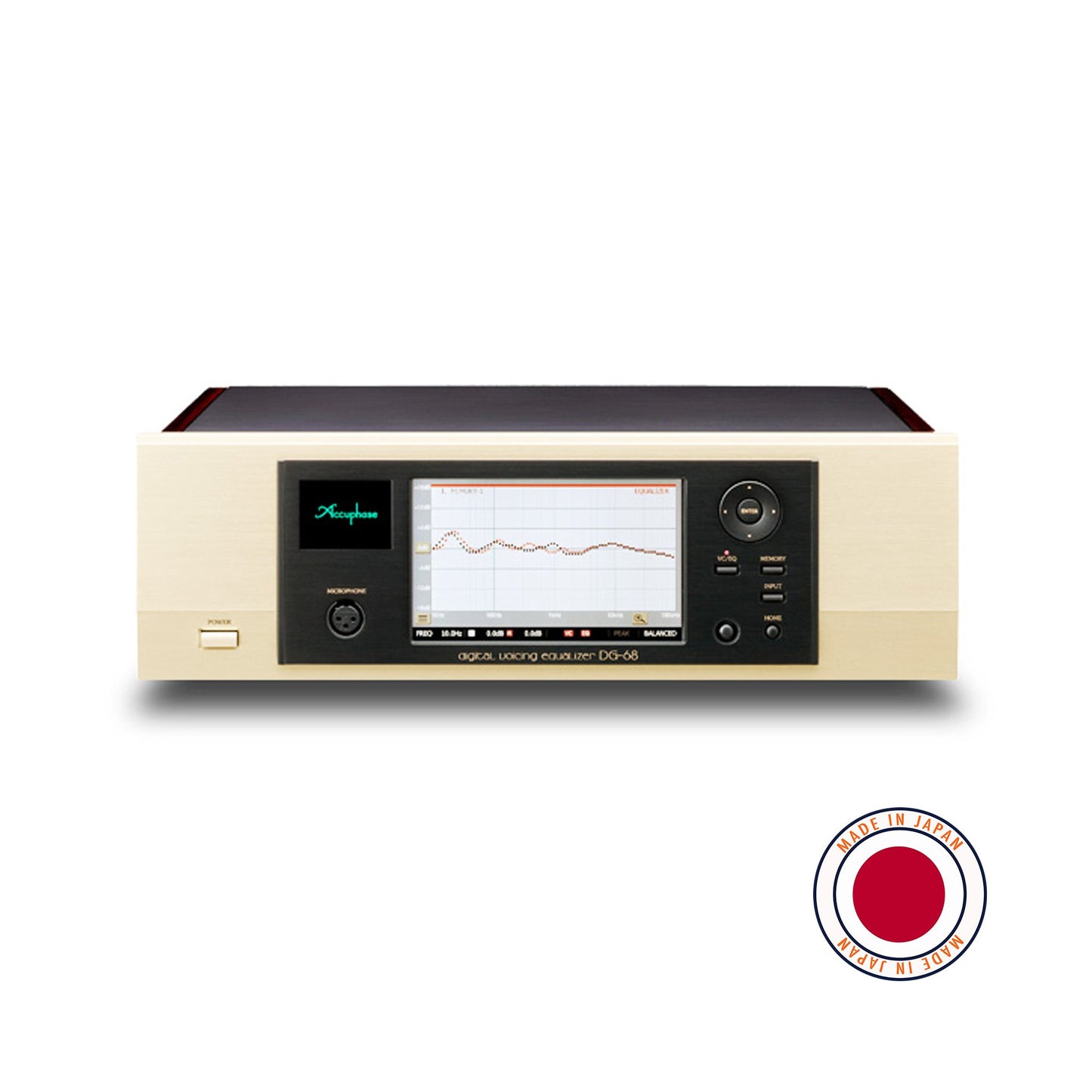

Most operations are controlled using the large, high-definition wide-format color LCD panel. This makes using the supplied stylus pen a pure joy, enabling the user to create any desired response simply by drawing on the screen. The DG-58 takes the concept of intelligent equalization to the next level, while at the same time remaining simple and intuitive to operate, thanks to its clean and uncluttered graphical interface.

  • Fully digital signal processing Voicing Equalizer
  • High-speed 40-bit floating point DSP
  • Separate digital filters for Voicing and Equalizer sections
  • Wide-format color LCD panel allows direct drawing of response curve with stylus pen
  • Freely programmable 30 pattern memory
  • Real-time spectrum analyzer for display of music signal and microphone input
  • Analog and digital inputs/outputs provided as standard





1/6 octave 67-band IIR filter

Adjustment range: ±12 dB


1/6 octave 80-band IIR filter

Adjustment range: ±12 dB


Warble tones

Frequency response curve input principle

Direct drawing with stylus pen and input with cursor keypad

Spectrum Analyzer

1/3 octave, 35-band real-time type

Display level: +18 dBFS to -90 dBFS (5 ranges, switchable)

Reproduction Frequency

0.5 - 50,000Hz +0 -3.0 dB
(Sampling frequency: 2.8224 MHz or 192 kHz) 4.0 - 20,000Hz +0 -0.3 dB

THD + Noise

(from analog inputs to analog outputs, 20 - 20,000 Hz)

Gain +12 to - 90 dB, variable
Analog input maximum level
GAIN +6 dB  0.89 V
GAIN 0 dB  1.78 V
GAIN -6 dB 3.55 V
A/D converter
Principle 8 MDS++
Sampling Frequency
32 kHz - 192 kHz
Resolution  32 bits

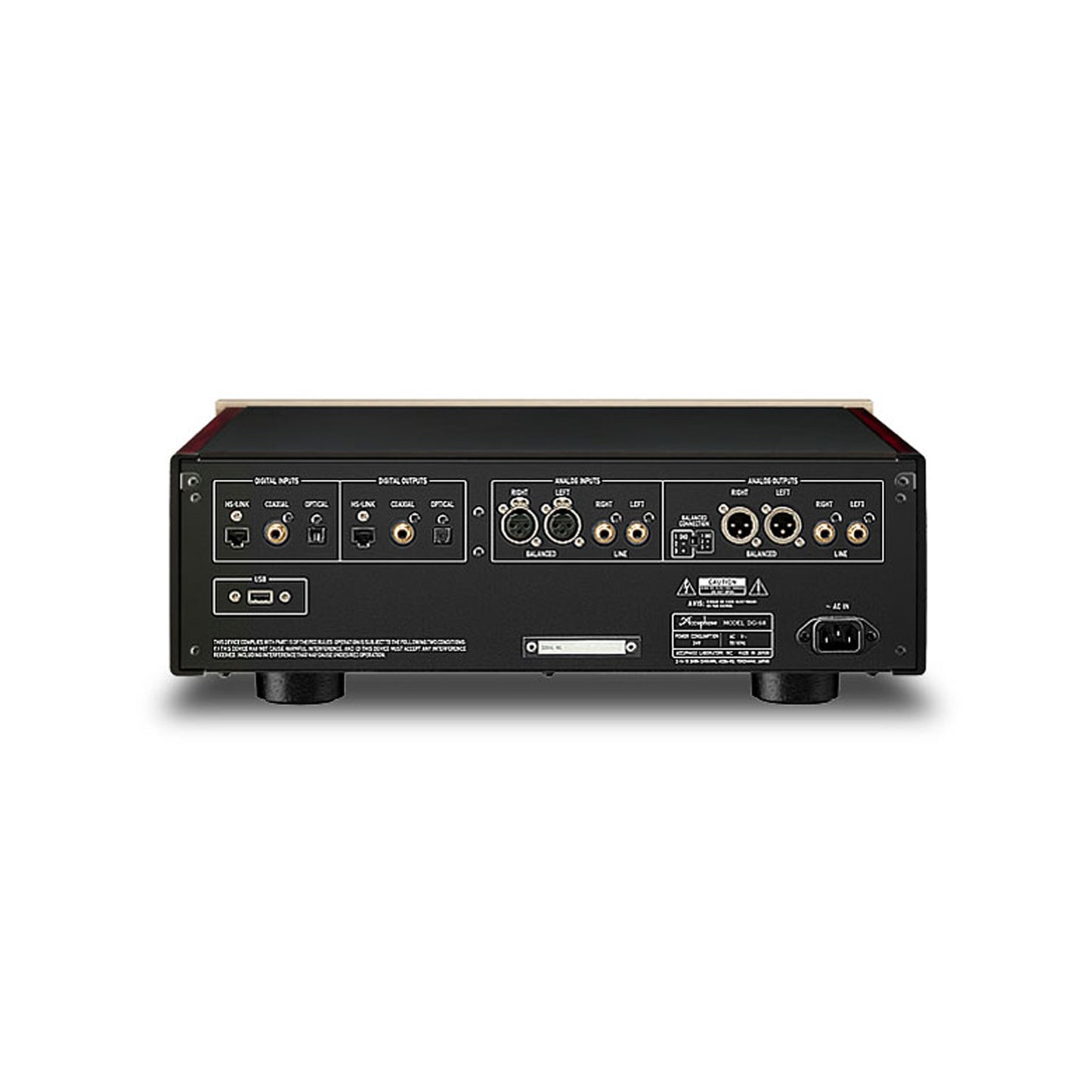

Digital Inputs
Connector Type:
Suitable cable:
Dedicated HS-LINK cable
COAXIAL Format:
IEC 60958 compliant
OPTICAL Format:
JEITA CP-1212 compliant
Sampling frequency

32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz (16 to 24-bit 2-channel PCM)

                                  (OPTICAL to 96 kHz)  [Only via HS-LINK] 2.8224 MHz
(1-bit 2-channel DSD)

Digital Outputs
Connector Type:
Suitable cable:
Dedicated HS-LINK cable
COAXIAL Format:
IEC 60958 compliant
OPTICAL  Format:
JEITA CP-1212 compliant
USB Port

USB 2.0/3.0 (up to 128 GB), for flash memory

(Cannot be used for connection to a computer)

Operating System Microsoft® Embedded Compact 7®
Power Requirements 120 V, 220 V, 230 V AC (voltage as indicated on rear panel), 50/60 Hz
Power Consumption 24W
Maximum dimensions

Width 465 mm (18.31")

Height 161 mm (6.34")

Depth 396 mm (15.59")


14.3 kg (31.5 lbs) net

22.0 kg (44.1 lbs) in shipping carton

Supplied Accessories
  • Stylus Pen
  • Microphone Cable (5m)
  • Audio Cable with plugs (1m)
  • Remote Commander RC-310
  • Microphone AM-48
  • Microphone Holder
  • AC Power Cord
  • Cleaning Cloth
